TH8 Installation and Conguration Guide

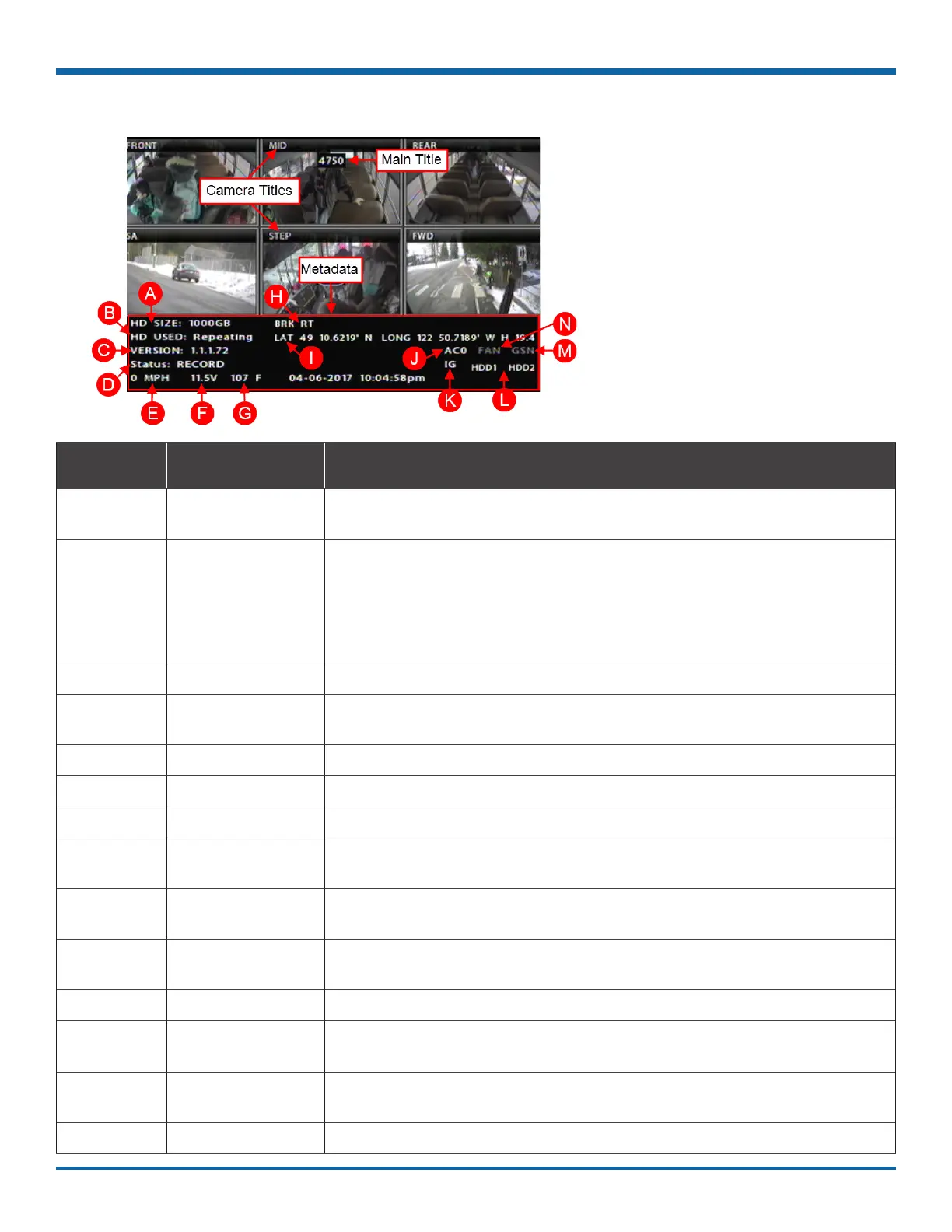

Reference Data Item Description
A HD Size Internal storage (GB). The second value in square brackets displays SD card
size in GB. "OFF" appears when storage media is not present.
B HD Used Percentage of internal drive space used. The second value in square
brackets displays percentage of drive spaced used on the SD card. "OFF"
appears when storage media is not present.
If the Record Repeat Record setting is ON, displays "Repeating". For more
information, see "Recording Settings" on page 52.
C Version Firmware version.
D Status DVR status: (LIVE=showing camera feeds, RECORD=storing video,
V.LOSS=video loss).
E Speed Vehicle speed.
F Voltage System input voltage.
G Temperature Ambient temperature inside the DVR (F=Fahrenheit, C=Celsius).
H Signals When a signal activates, the Label is displayed. For more information, see
"Signals" on page 47.
I GPS Coordinates Latitude/longitude, and elevation. If GPS is connected but satellite signals
are not being received, zeros appear.
J Alarm Count (AC#) The current number (1-9) of triggered Alarms. The value resets to 0 when the
DVR restarts. For more information, see "Alarms" on page 49.
K Ignition (IG) Vehicle ignition state (highlighted=ignition on, dimmed=off).
L Drive Status (HDD1,
HDD2)
Highlighted when the drive (HDD1 or HDD2) is detected and recording; grey if
the drive is not detected, and red to indicate a fault
M G Sensor (GSN) G Sensor threshold incident (highlighted=threshold exceeded). For more
information, see "G Sensor" on page 61.
N Fan Fan failure notication (highlighted=failure, dimmed=normal)
Metadata Details
