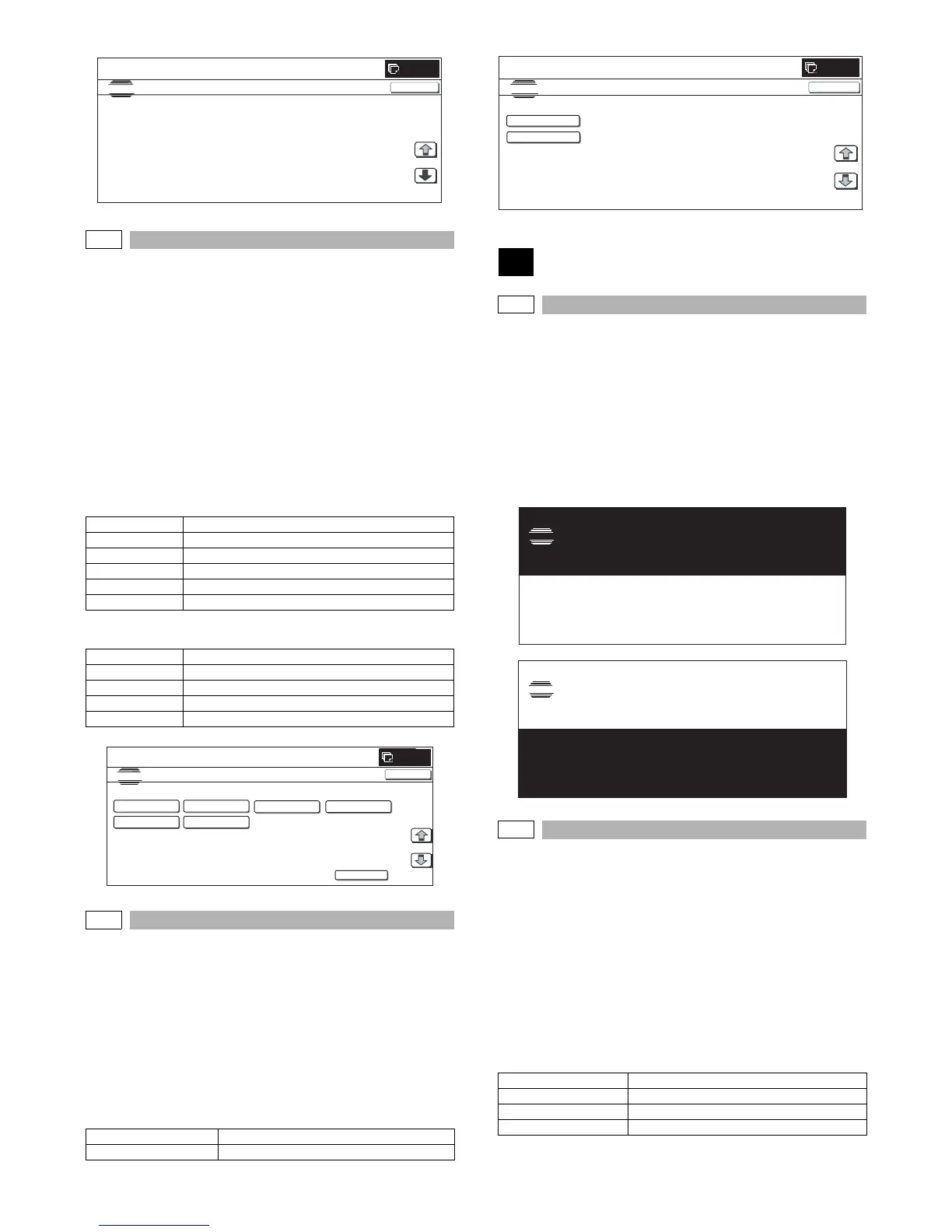

MX-2300/2700 N/G SIMULATION 7 – 13
4-3
Purpose : Operation test/check
Function (Purpose) : Used to check the operations of the loads
in the large capacity tray and the related cir-
cuit.
Section : Desk/Large capacity tray (LCC)
Item : Operation
Operation/Procedure
1) Select the item to be checked with the buttons on the touch
panel.
2) Press [EXECUTE] button.
The selected load operation is performed.
When [EXECUTE] button is pressed, the operation is termi-
nated.
<Desk load item>
<A4 LCC load item>
4-5
Purpose : Operation test/check
Function (Purpose) : Used to check the operations of the
clutches and the related circuits.
Section : Desk/Large capacity tray (LCC)
Item : Operation
Operation/Procedure
Select the item to be checked with the buttons on the touch panel.
The selected clutch operation is performed.
When the operation is normally completed, the button is high-
lighted.
5
5-1
Purpose : Operation test/check
Function (Purpose) : Used to check the operation of the display,
LCD in the operation panel, and control cir-
cuit.
Section : Operation panel
Item : Operation
Operation/Procedure
The LCD is changed as shown below. (The contrast changes every
2sec from the current level to MAX → MIN → the current level. Dur-
ing this period, each LED is lighted.
5-2
Purpose : Operation test/check
Function (Purpose) : Used to check the operation of the heater
lamp and the control circuit.
Section :Fusing
Item : Operation
Operation/Procedure
1) Select the item to be checked with the buttons on the touch
panel.
2) Press [EXECUTE] button.
The selected heater lamp is operated.
When [EXECUTE] button is pressed, the operation is termi-
nated.
DPFM Desk main motor
DLUM1 Desk 1 lift-up motor
DPUC1 Desk 1 paper feed clutch
DLUM2 Desk 2 lift-up motor
DPUC2 Desk 2 paper feed clutch
DTRC Desk transport clutch
LPFM LCC transport motor
LLM LCC lift motor
LPFC LCC paper feed clutch
LPFS LCC paper feed solenoid
LTRC LCC transport clutch
DTRC Desk transport clutch
LTRC A4 LCC transport clutch
0
DSK/LCC SENSOR CHECK
CLOSE
SIMULATION NO.04-02
TEST
1/1
DCSI1 DPFD1 DLUD1 DPED1
DCSPD1 DCSS11 DCSS12 DCSS13
DCSS14 DCSI2 DPFD2 DLUD2
DPED2 DCSPD2 DCSS21 DCSS22
DCSS23 DCSS24 DSW_DSK
㩷
㩷
0
SIMULATION
NO.04
03
TEST
DSK/LCC
LOAD
CHECK
EXECUTE
1/1
DPFM
DLUM1
DPUC1 DLUM2
DPUC2 DTRC
CLOSE
HL_UM Heater lamp upper main
HL_LM Heater lamp lower main
HL_US Heater lamp upper sub
HL_ALL All heater lamps ON
CLOSE
1/1
SIMULATION
NO. 04
㧙
05
TEST
DESK/LCC SYNCRONIZING SIGNAL CHECK
LTRC
:DTRC ON
:LTRC OFF
DTRC
SI MU LA TI O N
NO.05
㧙
01
TEST
SI MU LA TI O N
NO.05
㧙
01
TEST
