Sharp MX-2300 G

MX-2300/2700 N/G SIMULATION 7 – 125
64-4
Purpose : Operation test/Check
Function (Purpose) : Used to execute self-print.
Section : Printer
Item : Operation
Operation/Procedure
1) Select a color with [K][C][M][Y] buttons.
The selected button is highlighted. When the selected button is
pressed again, it returns to the normal display. (Two or more
buttons can be selected.)
2) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
3) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
4) When [EXECUTE] button is pressed, the currently set self-
print is started.
[EXECUTE] button remains highlighted during self-printing.
After completion of self-printing, it returns to the normal dis-
play.
* When [OK], [↑], [↓] button, [COLOR], or [BLACK] key is
pressed, the value is set to the set item. (The value is not
saved to EEPROM and RAM.)
* When [EXECUTE] button, [C], [CA], or [SYSTEM SET-
TINGS] key is pressed during printing, the operation is inter-
rupted.
* When the machine returns to the ready state after occur-
rence of an interruption (paper empty, jam, etc.), self-printing
is resumed.
* When paper which does not satisfy the paper feed condi-
tions and the paper exit conditions, printing cannot be made.
<Set item description>
* When print pattern 2 or 5 is selected, items E to G cannot be selected. (Though entry of the value is possible, it is not reflected to setting.)
* When paper which does not satisfy the paper feed conditions, printing cannot be made.
* Paper feed condition PLAIN: Cassette/Manual feed. For the
other, manual feed only.
* Items D, E, F, G are displayed as "Display item: Detail of display."
Example: PAPER: CS1
<Detailed description for each print in item A>
0
A:
A㧦 1
㧧 PRINT P ATTERN
B㧦 1 㧧 DOT1

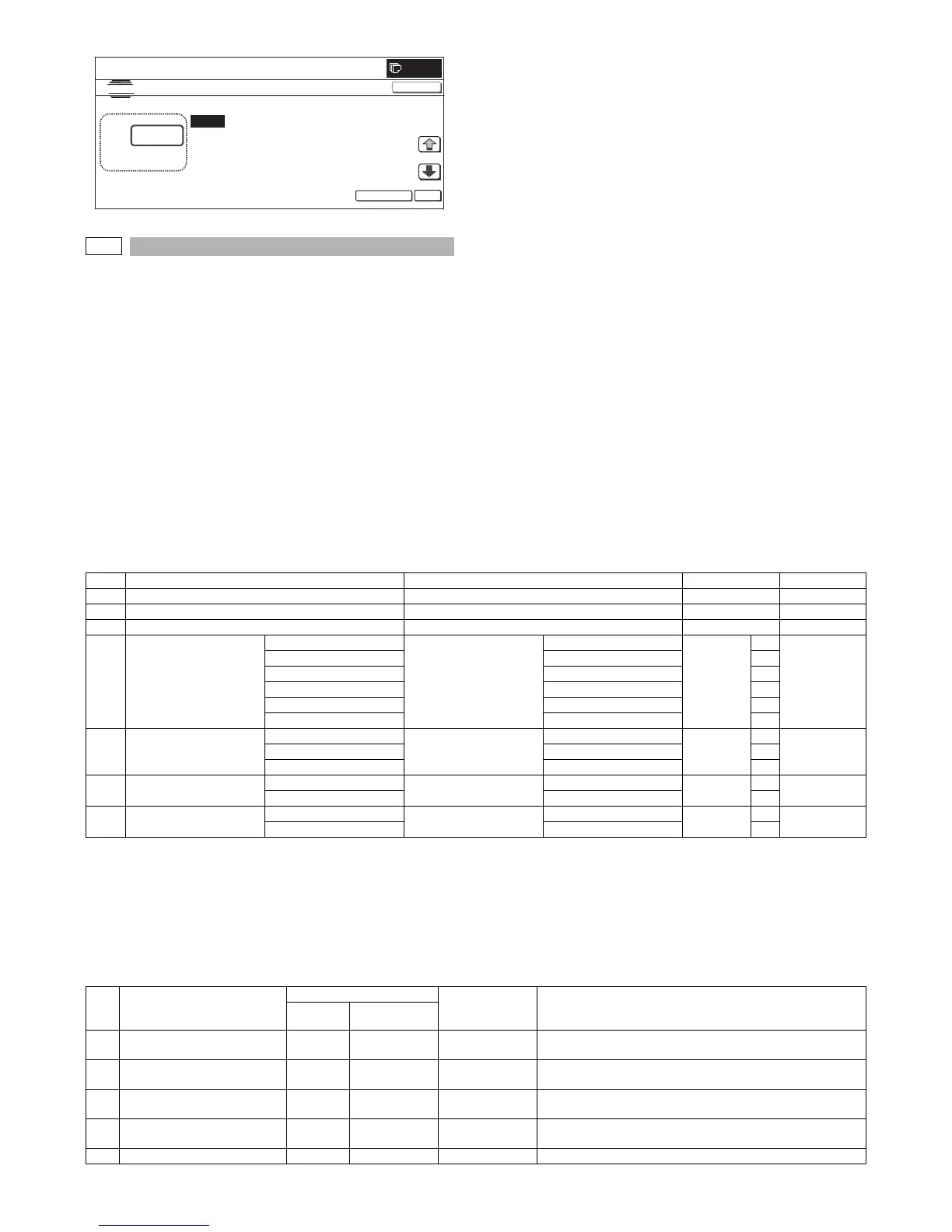

SIMULATION  NO.64-03
SELF PRINT(BW)
1
㨇 1㨪 20㨉
O
K
TEST
EXECUTE
CLOSE
C㧦254 㧧 DOT2
D㧦255 㧧 DENSITY
Item Display item & Detail of display Description of item Set range Default value
A PRINT PATTERN Print pattern specification (* For details, refer to below.) 1 to 5 3
B DENSITY Print gradation specification 1 to 255 128
C MULTI CONUT Print quantity 1 to 999 1
D PAPER MFT Paper feed tray select Manual feed 1 to 6 1 2 (CS1)
CS1 Cassette 1 2
CS2 Cassette 2 3
CS3 Cassette 3 4
CS4 Cassette 4 5
LCC LCC 6
E HALFTONE PHOTO Half tone Photo 0 to 2 0 0 (PHOTO)
TEXT/GRAPHICS Text/Graphic 1
CAD Design 2
F BIT DEPTH 1BIT Bit number 1 bit 0 to 1 0 1 (4BIT)
4BIT 4 bit 1
G DITHER STRAIGHT Dither correction
specification
Straight 1 to 2 1 2 (CALIB)
CALIB Calibration 2
NO. Content
Color select Gradation
select/ Dither
select
Remark
Condition When NOT
1 256 gradation pattern (COLOR) { K only 1: Straight
2: Calibration
C only/ M only/ Y only/ K only/ C & M/ C & Y/ M & Y are
executable. For the other, rounded to K only.
2 256 gradation pattern (B/W) ✕ K only 1: Straight
2: Calibration
Rounded to K only regardless of COLOR SELECT status.
3 256 gradation pattern (COLOR)
(Y-M-C-K continuous)
✕✕1: Straight
2: Calibration
4 pages are continuously printed in the sequence of Y only, M
only, C only, and K only.
4 Half tone pattern (COLOR) { K only 1 to 255 C only/ M only/ Y only/ K only/ C & M/ C & Y/ M & Y/ C & M & Y are
executable. For the other, rounded to K only.
5 Half tone pattern (B/W) ✕ K only 1 to 255 Rounded to K only regardless of COLOR SELECT status.
