MX-2300/2700 N/G SIMULATION 7 – 126
64-5
Purpose : Operation test/Check
Function (Purpose) : Used to execute self print (PCL).
Section : Printer
Item : Operation
Operation/Procedure
1) Select a color with [K][C][M][Y] buttons.
The selected button is highlighted. When the selected button is
pressed again, it returns to the normal display. (Two or more
buttons can be selected.)
2) Select the set item with [↑] and [↓] buttons.
The highlighted set value is switched and the value is dis-
played in the setting area.
* If there is any item over [↑], an active display is made and
item is shifted.
If there is no item over [↑], the display grays out and the
operation is invalid.
If there is any item under [↓], an active display is made and
item is shifted.
If there is no item over [↓], the display grays out and the
operation is invalid.
3) Enter the set value with 10-key.
* Press [C] key to clear the entered values.
4) When [EXECUTE] button is pressed, the currently set self-
print is started.
[EXECUTE] button remains highlighted during self-printing.
After completion of self-printing, it returns to the normal dis-
play.
* When [OK], [↑], [↓], [EXECUTE] button, [COLOR], or
[BLACK] key is pressed, the value is set to the set item. (The
value is not saved to EEPROM and RAM.)
* When [EXECUTE] button, [C], [CA], or [SYSTEM SET-
TINGS] key is pressed during printing, the operation is inter-
rupted.
* When the machine returns to the ready state after occur-
rence of an interruption (paper empty, jam, etc.), self-printing
is resumed.
* When paper which does not satisfy the paper feed conditions
and the paper exit conditions, printing cannot be made.
<Set item description>
* When B/W print is made, the bit number is fixed to 1 bit and selection of half tone/rendering intent/gray compensation is disabled. (Though
entry of a value can be made, it is not reflected to the setting.)
* Items B, D, E, F, G, H, and I are displayed as "Display item: Detail of display."
Example: PAPER: CS1
<Detailed description for each print pattern in item A>
0
K
A
:
A㧦 3
B㧦128
C㧦 1
D㧦 2
㧧
PRINT PATTERN
㧧 DENSITY
㧧 MULTI COUNT
㧧 PAPER

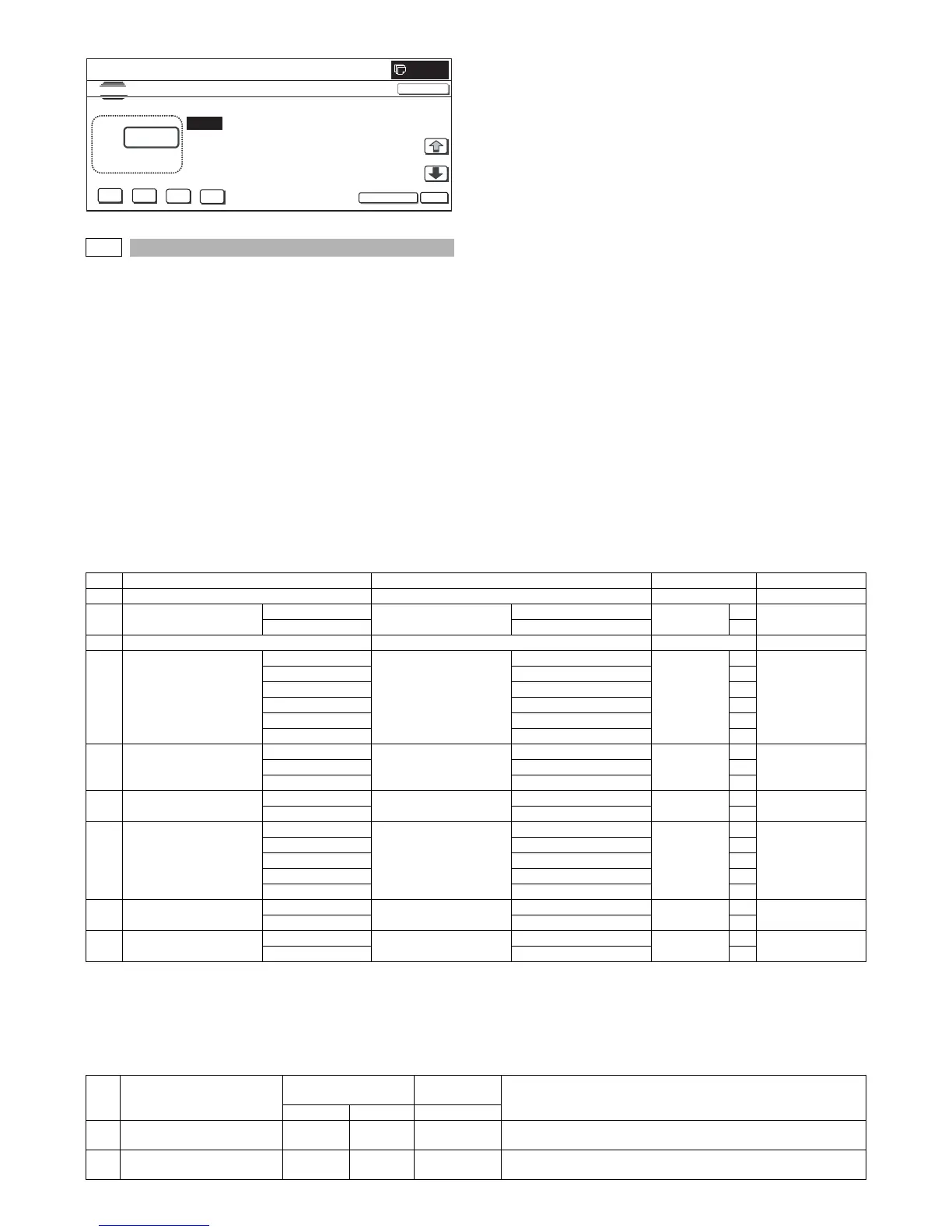

SIMULATION  NO.64 㧙 04
PRINTER SELF PRINT
3
㨇 1 㨪 5㨉
C
M
Y
O
K
TEST
EXECUTE
CLOSE
Item Display item & Detail of display Description of item Set range Default value
A PRINT PATTERN Print pattern specification (*For details, refer to below.) 1 to 3 3
B DITHER STRAIGHT Dither correction
specification
Straight 1 to 2 1 2
CALIB Calibration 2
C MULTI COUNT Print quantity 1 to 999 1
D PAPER MFT Paper feed tray select Manual feed 1 to 6 1 2 (CS1)
CS1 Cassette 1 2
CS2 Cassette 2 3
CS3 Cassette 3 4
CS4 Cassette 4 5
LCC LCC 6
E HALFTONE PHOTO Half tone Photo 0 to 2 0 0 (PHOTO)
TEXT/GRAPHICS Text/Picture 1
CAD Design 2
F BIT DEPTH 1BIT Bit number 1 bit 0 to 1 0 1 (4BIT)
4BIT 4 bit 1
G INTENT SHARP COLOR Rendering indent Sharp color 0 to 4 0 0 (SHARP COLOR)
PERCEPTUAL Perceptual 1
COLORIMETRIC Color metric 2
SATURATION Saturation 3
CAD CAD 4
H GRAY COMPENSATION K Gray compensation K only 0 to 1 0 0 (K)
KCMY KCMY 1
I TONER SAVE MODE ON Toner save mode Setting 0 to 1 0 1 (OFF)
OFF No setting 1
NO. Content
Color select
Gradation
select
Remark
Condition No Dither select
1 PCL process inspection pattern
(COLOR)
✕✕1:Straight
2:Calibration
2 PCL process inspection pattern
(B/W)
✕ K only 1:Straight
2:Calibration
Rounded to K only regardless of COLOR SELECT state. Print is made at
the B/W mode process speed.
