MX-2300/2700 N/G DUPLEX SECTION G – 4

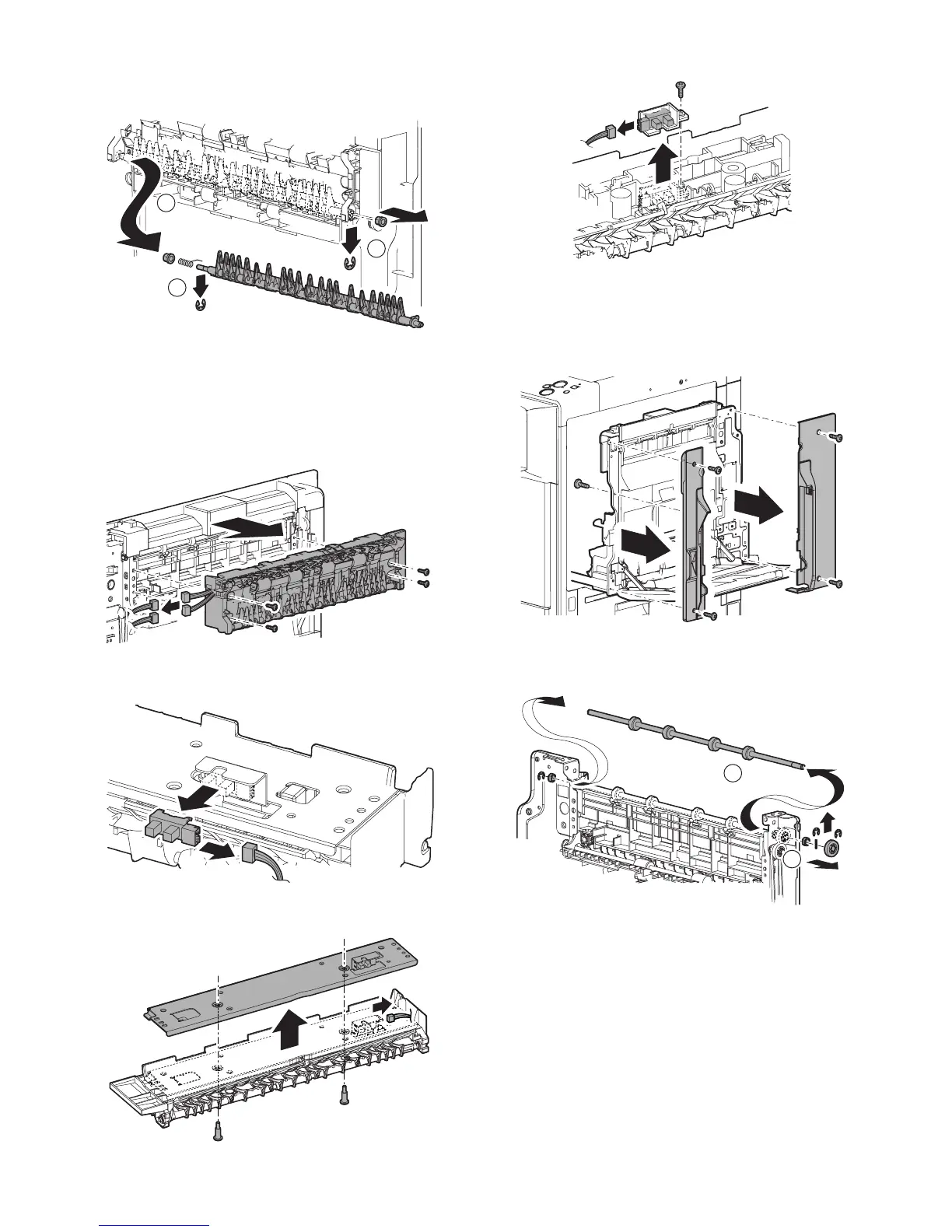

g. ADU gate lower
1) Open the right door unit.
2) Remove the parts, and remove the ADU gate lower.
h. ADU transport open/close detection
i. ADU transport path detection 1
1) Open the right door unit.
2) Remove the ADU inner cover.
3) Disconnect the connector, and remove the reverse PG unit.
4) Remove the ADU transport open/close detector.
5) Remove the ADU stay upper unit.
6) Remove the ADU transport path detector 1.
j. Paper exit roller 2 (Drive)
1) Open the right door unit.
2) Remove the connector cover ADU inner cover.
3) Remove the ADU cabinet F and the ADU cabinet R.
4) Remove the reverse PG unit.
5) Remove each parts, then remove the transport roller 2 (drive).
3
1
2
1
2
