MX-2300/2700 N/G DUPLEX SECTION G – 5
k. Transport roller 10 (Drive)
l. Transport roller 11 (Drive)

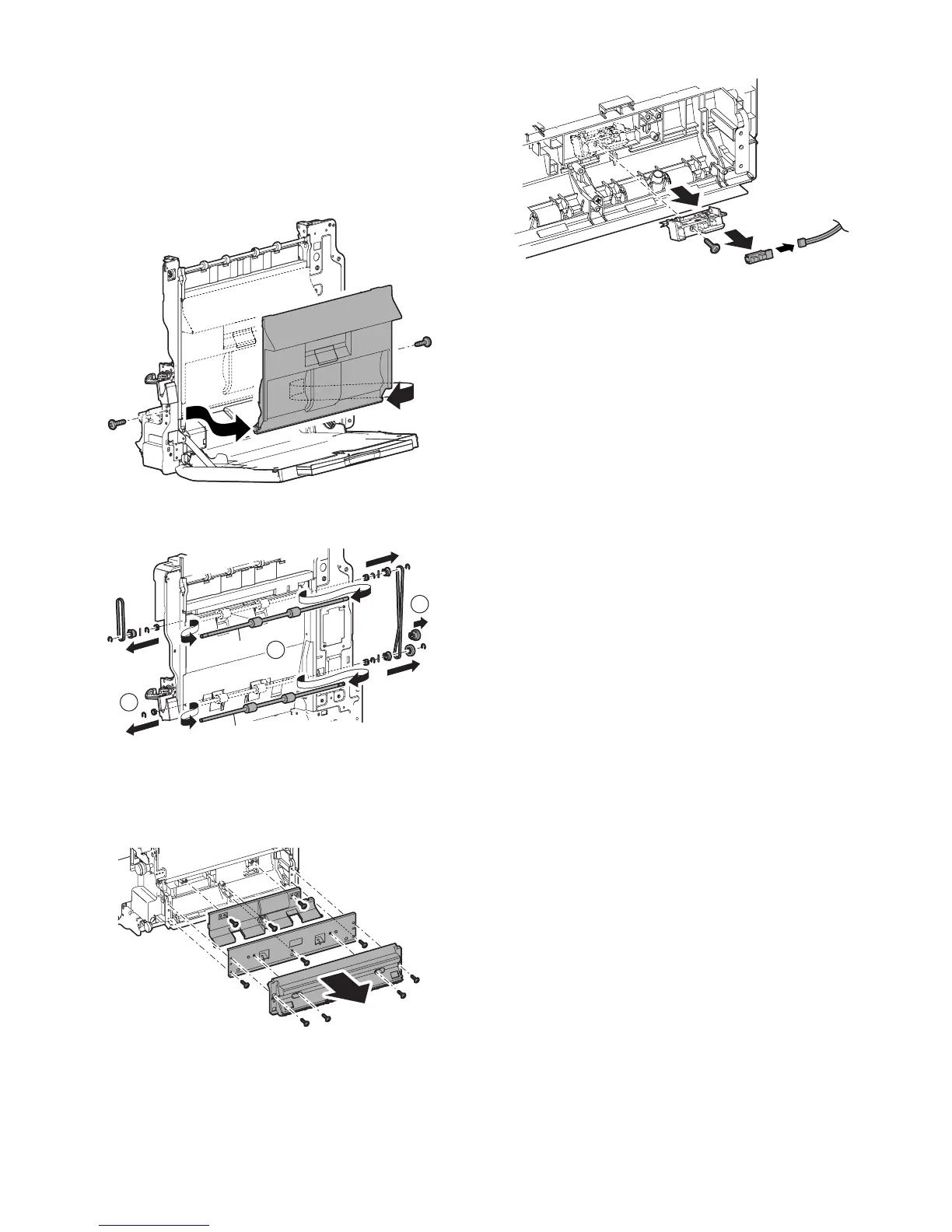

1) Open the right door unit.
2) Remove the connector cover ADU inner cover.
3) Remove the ADU cabinet F and the ADU cabinet R.
4) Remove the reverse PG unit.
5) Remove the upper transport fulcrum holder, and remove the
ADU open/close door.
6) Remove each parts, and remove the trasnport roller 10 (drive)
(A) and the trasnport roller 11 (drive) (B).
m. ADU transport path detection 2
1) Open the right door unit.
2) Remove the right door transport PG, the follower pressure
plate, and the ADU waste toner cover.
3) Remove the ADU trasnsport path detector 2.
1
1
2
A
B
