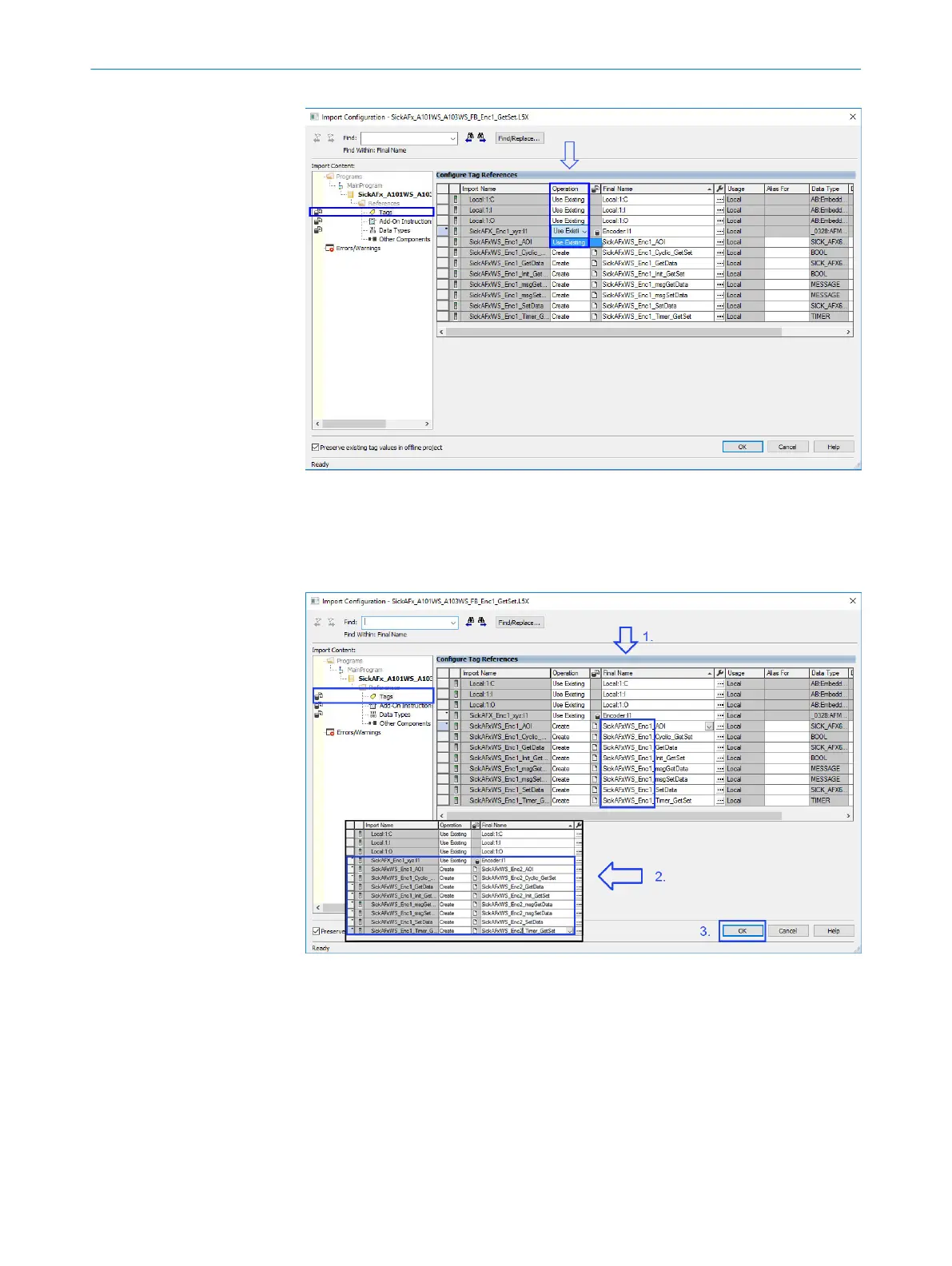

Figure 44: Selection of the operation for the tag references
12. If necessary, change the names of Tags in the Final Name column.
If multiple encoders are used in a project, then each final name may only be
assigned once. Then the name is to be changed, for example, from ... Enc1...
to ...Enc2....
Figure 45: Changing the tag names
13. Click OK .
✓
The ladder routine is imported.
5
CONFIGURATION USING A PLC
60
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
