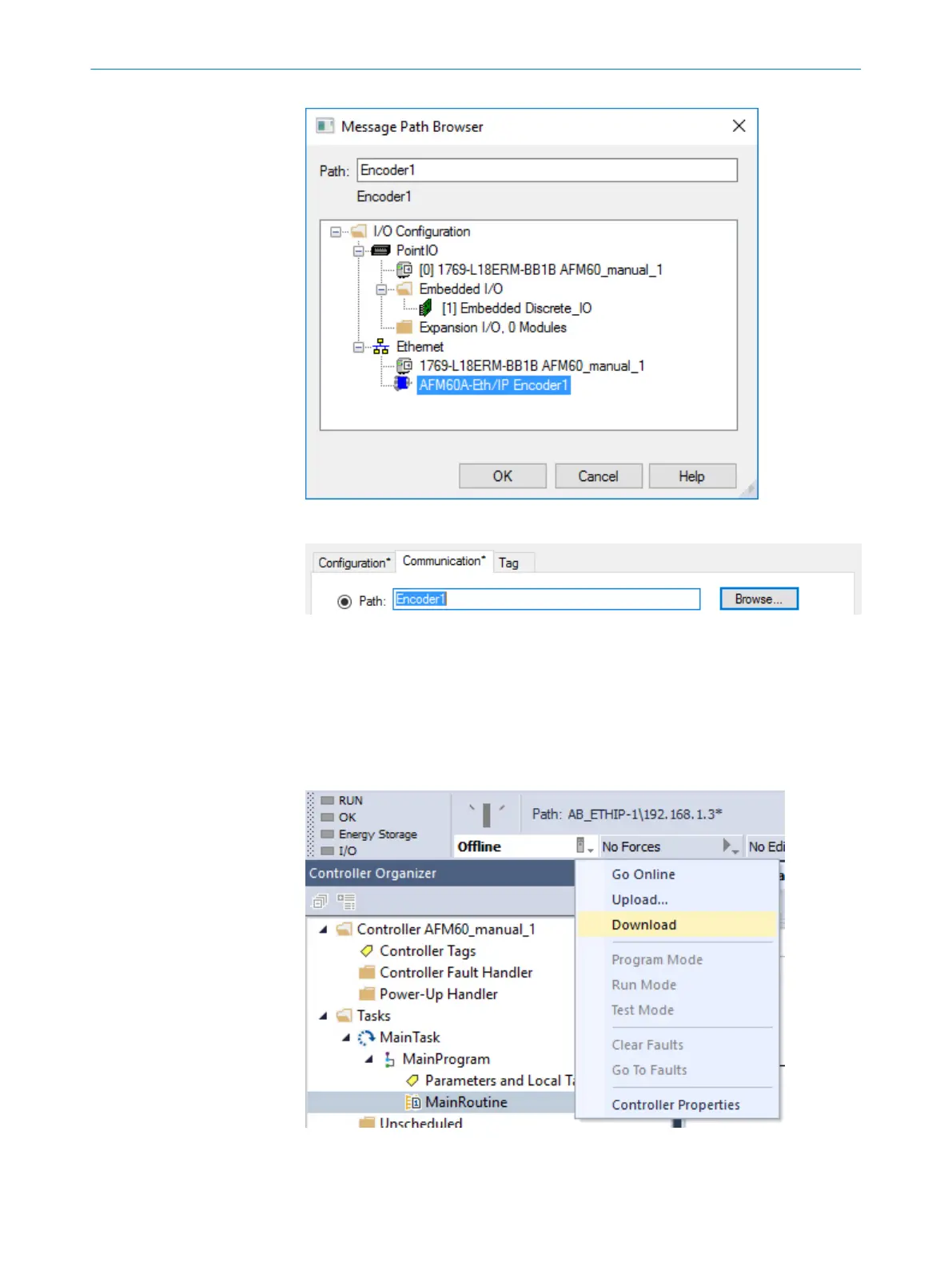

Figure 80: Selecting encoder
Figure 81: Selected encoder
✓
The encoder is transferred to the Path field.
15. End the Message Path Browser dialog with OK .
Transmitting program to controller
The program is then transmitted to the controller.
1. In the Offline menu, select the Download command.
Figure 82: Transmitting the program to the controller
2. Confirm the next message.
CONFIGURATION USING A PLC
5
8014213/1EF3/2021-12-08 | SICK O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP
81
Subject to change without notice
