SICK EtherNet/IP AFS60 User Manual

2. Confirm the next message.
Testing program

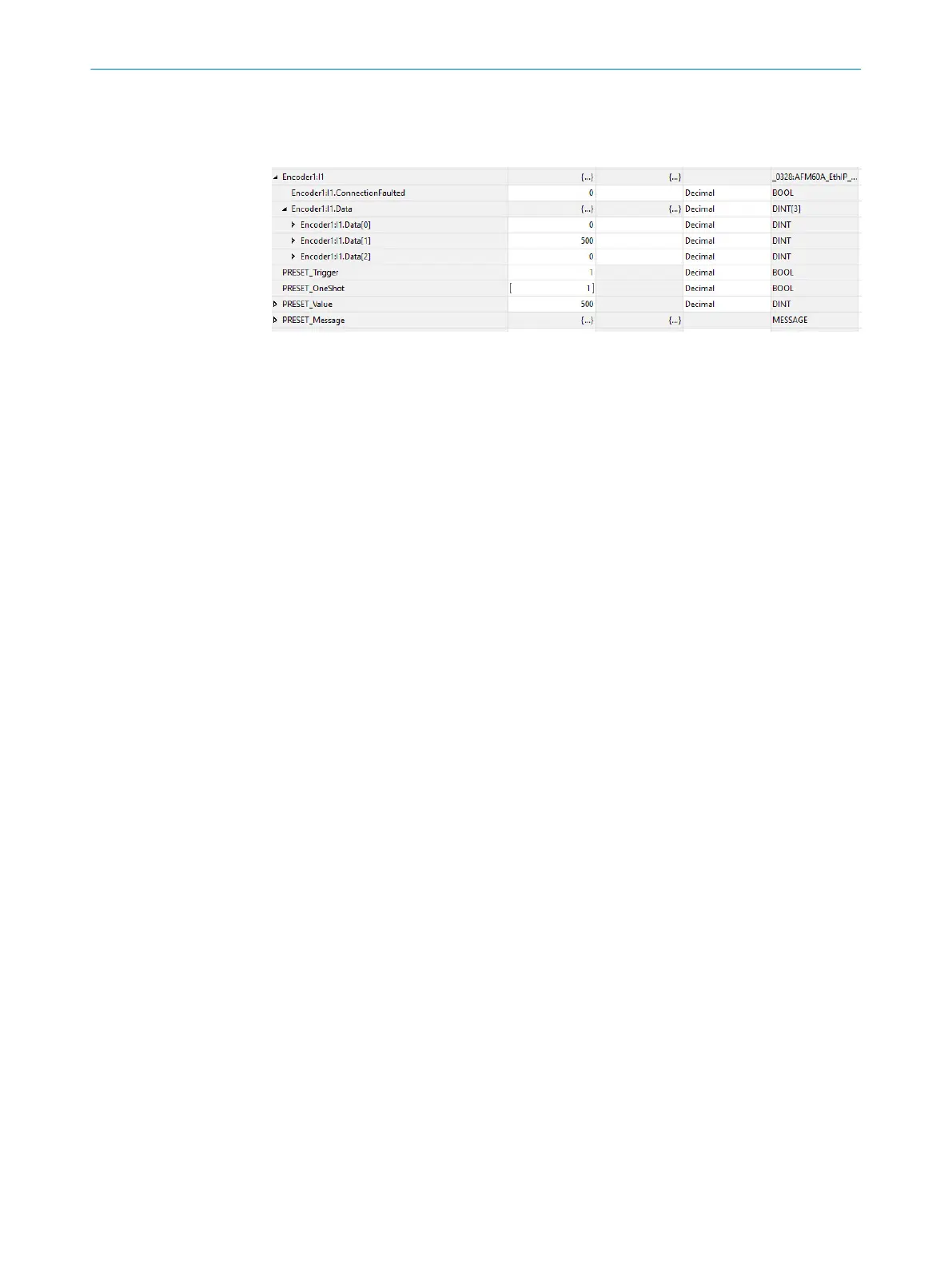

Figure 104: Display of the preset value in PRESET_Value
1. To test the example program, in variables PRESET_Value, enter a value in Controller
Organizer (500 in the example).
2. Set variable PRESET_Trigger from 0 to 1.
✓
In position date AFM60_EIP:I.Data[1], the value now jumps to 500.
CONFIGURATION USING A PLC 5
8014213/1EF3/2021-12-08 | SICK O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP
93
Subject to change without notice
