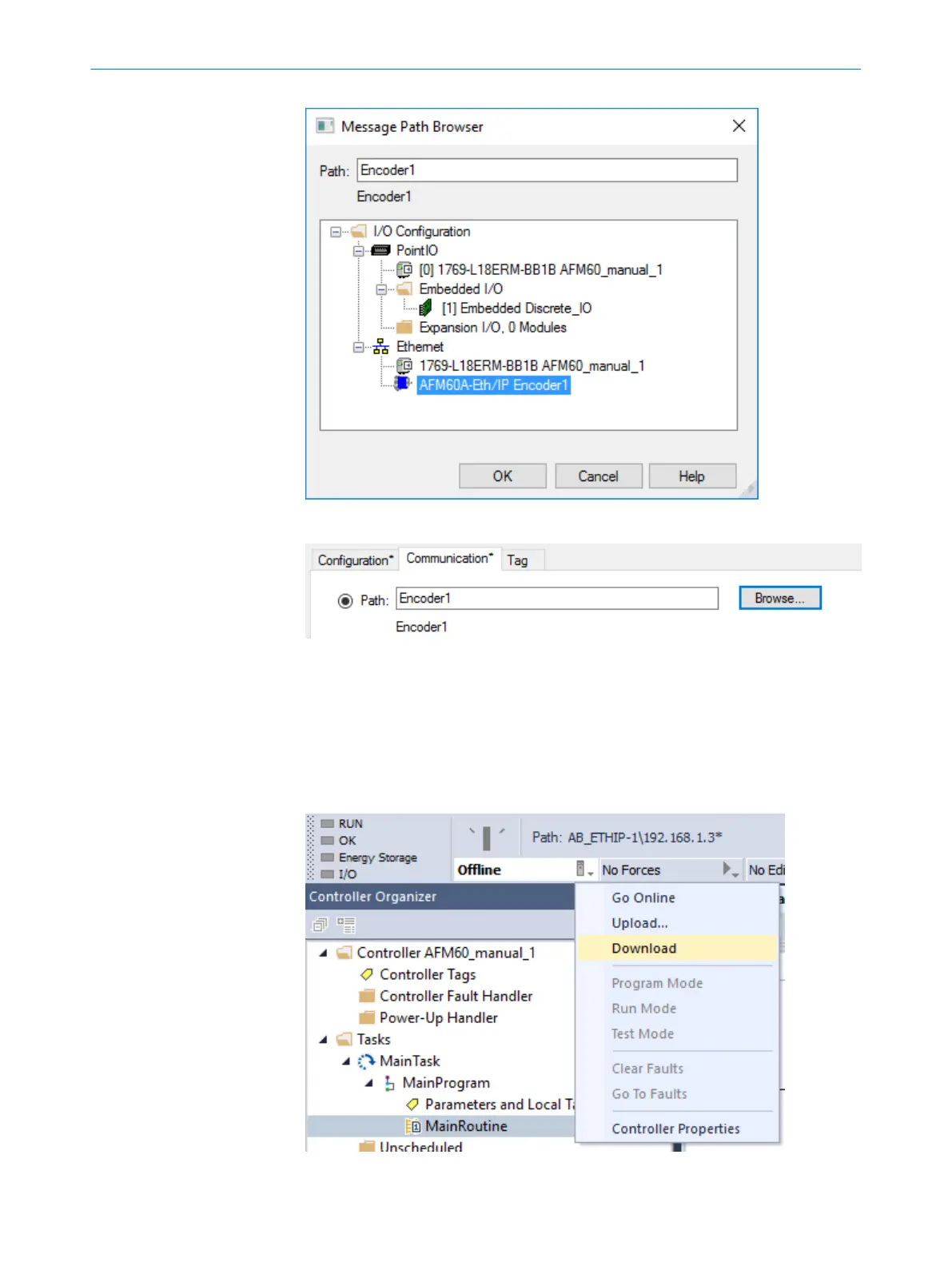

Figure 101: Selecting encoder
Figure 102: Selected encoder
✓
The encoder is transferred to the Path field.
16. End the Message Path Browser dialog with OK .
Transmitting program to controller
The program is then transmitted to the controller.
1. In the Offline menu, select the Download command.
Figure 103: Transmitting the program to the controller
5 CONFIGURATION USING A PLC
92
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
