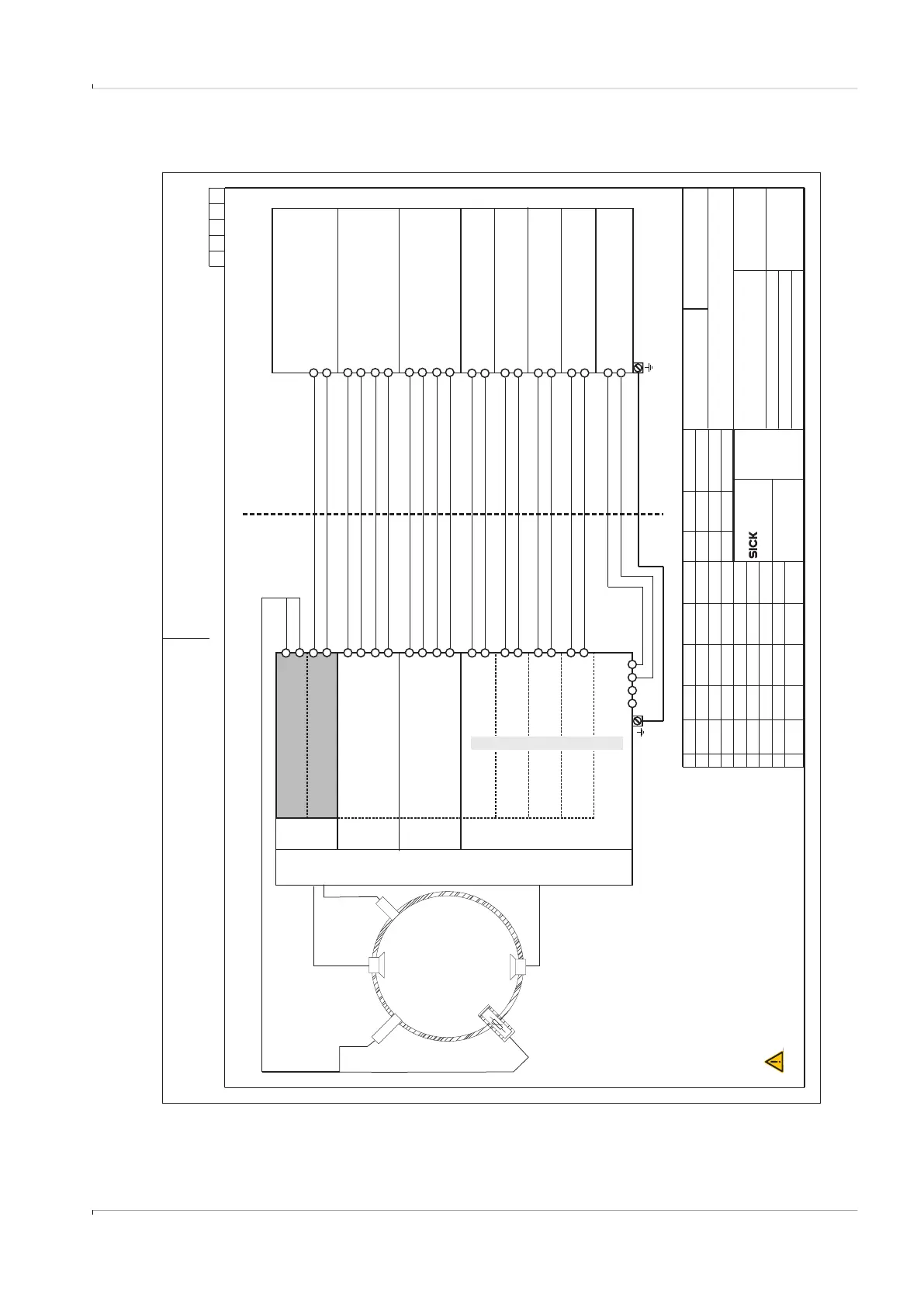

Fig. 74 Connection diagram 9236581 (page 6)
Vervielfaeltigung dieser Unterlage sowie Verwertung und Mitteilung ihres Inhaltes unzulaessig, soweit nicht ausdruecklich zugestanden. Zuwiderhand- lungen sind strafbar und verpflichten zu Schadenersatz (LitUrhG, UWG, BGB). Alle Rechte fuer den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
A4_Formblatt_ME10.CDR
SICK Engineering GmbH
Bergener Ring 27
01458 Ottendorf-Okrilla
Verteildatum: Page
Norm-Typ/DIN
Ersatz für:
Änderung
gepr. gez.
Tag Name
Tag Name
Maßstab:
Werkstoff Ersetzt durch:
Gepr.
Ursprung:
6of15
Safety parameters of interconnected equipments must be complied
as follows: Uo < Ui, Io < Ii, Po< Pi, Co > Ci + Ccable, Lo > Li + Lcable
Hazardous (classified) location
Safe Area
9236581
Associated Equipment
Uo <= 20 V, Po <= 717 mW
Uo <= 20 V, Po <= 717 mW
Uo <= 20 V, Po <= 717 mW
Uo <= 20 V, Po <= 717 mW
Uo <= 26.6 V Po <= 1 W Co >= 1.2 nF + C
cable
Uo <= 10.5 V Po <= 717 mW Co >= 1.21 μF + C Lo >= 0.02 mH + L
cable
cable
Uo <= 10.5 V Po <= 717 mW Co >= 1.21 μF + C Lo >= 0.02 mH + L
cable
cable
+-
+-
+-+-+-
+-
AB+-
AB+-
Ui = 10.5 V Pi = 717 mW Ci = 1.21 μF Li = 0.02 mH
RS485 optical isolated needs ext. power
AB+-
Ui = 10.5 V Pi = 717 mW Ci = 1.21 μF Li = 0.02 mH
RS485 optical isolated needs ext. power
AB+-
Ui=20V Pi = 717 mW
Ui=20V Pi = 717 mW
Ui=20V Pi = 717 mW
Ui=20V Pi = 717 mW
+-
+-+-+-
DO.3 optical isolated
DO.2 optical isolated
FO.1 optical isolated
FO.0 optical isolated
DO-LF
Module slot
UAR
T3
Module slot
UART2
Module slot
UART0
Module slot
Digital outputs with Power input
Temperature range and pressure range see Marking plate
SPU
I/O configuration with modules “DO-LF”+2x“RS485” + “HART-PT”
optionally Exia
HART emperature sensorT
optionally Exia
HART ressure sensorp
Ui, Ii, Pi >= Uo, Io, Po
of the HART-PT module
Ui, Ii, Pi >= Uo, Io, Po of the HART-PT module
internal SPI
pressure sensor
not available for
Tgas >105°C
Up to 16 ultrasonic transducers, only manufactured by SICK
Ui = 26.6 V Pi=1W Ci = 1.2 nF
and
Uo = Uin, Io = Uin / 267 Ohm Po = 1/4 Uin / 267 Ohm Co=92nF
+- +-
POWER SENSOR
HART-PT non-isolated potted
Uin = Uo of the associated equipment
2
ext. Power 6...16 Vdc
-+-+
kochami
kochami
2015-10-30
Control Drawing FLOWSIC600-XT CSA
Ind.
2016-01-27
WARNING: AVERTISSEMENT:
EXPLOSION HAZARD
Substitution of components may impair Intrinsic safety
RISQUE D` EXPLOSION - La substitution
de composants peut compromettre la securite intrinseque.
Class I Division 1, Groups A, B, C, D, T4 Ex ia Intrinsically Safe; Securite Intrinseque
Ex ia IIC T4 Ga Class I Zone 1 AEx ia op is IIC T4 Ga
-40°C < Tamb < 70°C
In the US install in accordance with the NEC (NFPA70, Article 504) and ANSI/ISA-RP12.06.01 In Canada install in accordance with CEC part 1. Read operation instructions before installation.
FLOWSIC600-XT
(F6*-******-*I2A-****)
Ui=20V Ii = 667 mA Pi = 1.65 W Li = 0.005 mH
Uo <= 20 V Io <= 667 mA Po <= 1.65 W Lo >= 0.005 + Lcable
01
ZAK3
kochami
kochami
2017-03-29
2017-03-29
