● Separate direction outputs
For forward flow, pulses are output on FO.0. FO.1 is inactive. For backward flow, pulses
are output on FO.1. FO.0 is inactive.

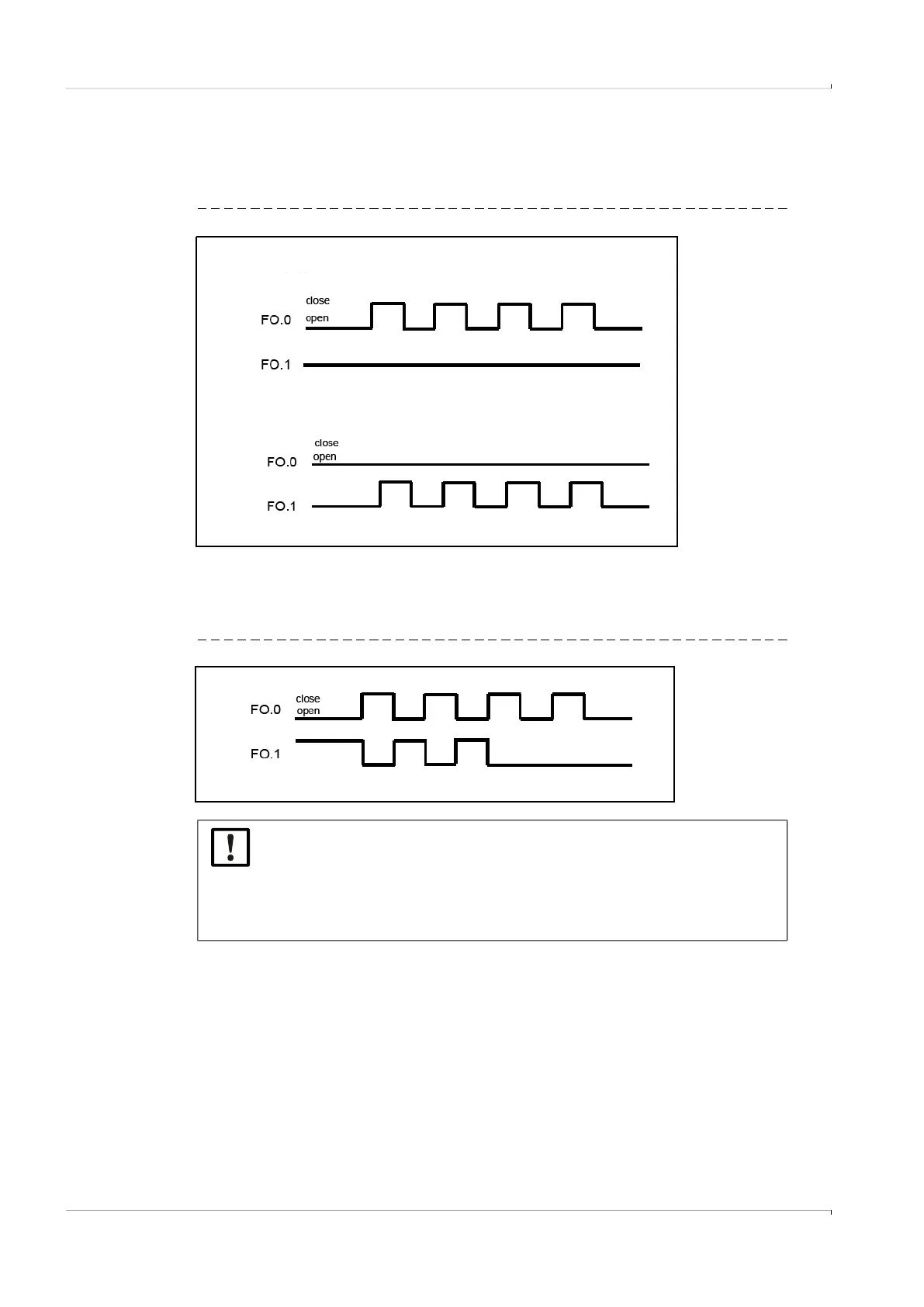

Fig. 12 Separate direction outputs
● Inverted with error signaling
Direction-independent pulses are output on FO.0. FO.1 outputs an inverted signal to
FO.0 and is retained inactive in state “Measurement invalid”.
Fig. 13 Inverted with error signaling
2.6.3
Encoder totalizer
(Digital interface for primary devices with meter reading transmission according to DVGW
Information GAS No. 23, December 2017)
Alternatively, the meter reading can be transmitted digitally coded (ENCODER) to volume
converters and additional devices as a metrologically secured point-to-point connection.
Compatibility with the downstream device is ensured when this device runs with the same
interface protocol. It is recommended to check this during an operating point test.
Forward flow
Reverse flow
NOTICE:
The measurement is marked as invalid when the FLOWSIC600-XT is in
Configuration mode with open calibration switch.The device goes into “Error”
mode.
The representation of this behavior via the pulse output is done by selecting
“Inverted with error signaling”.
Error case
