Product description
FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH 27
Subject to change without notice
Pulse output
An adjustable measured value can be output on the two pulse outputs FO.0 (DO.0) and
FO.1 (DO.1) proportional to the frequency. The maximum adjustable frequency is 10 kHz.
The following can be set as output value via the associated configuration register:
● Operational flow rate
● Base flow rate
Setting the status and pulse outputs
Following options can be set:
● 2x status
The outputs operate as status outputs and are set via the corresponding configuration
registers.
● Pulse output and status output
Direction-independent pulses are output on FO.0. FO.1 operates as status output and is
set via its configuration register.
● 2x pulse output
Direction-independent pulses are output on FO.0 and FO.1.
● Phase offset 90°
FO.0 and FO.1 output a signal with a phase offset of 90°. FO.0 leads for positive values
and follows for negative values.

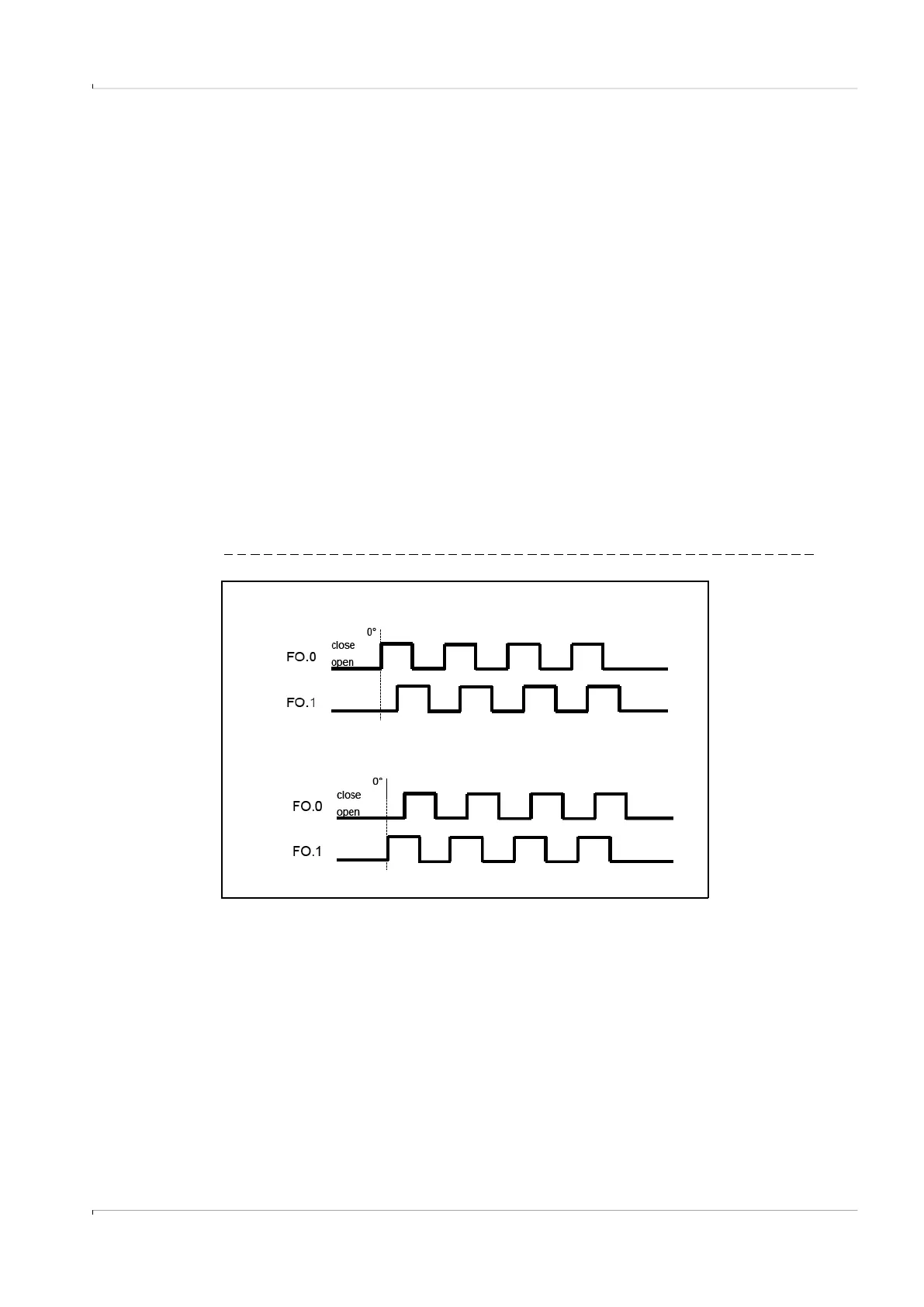

Fig. 11 Phase offset 90 °
Forward flow
Reverse flow
