Installation
FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH 43
Subject to change without notice
3.3.4 Fitting in the pipeline
Lifting requirements

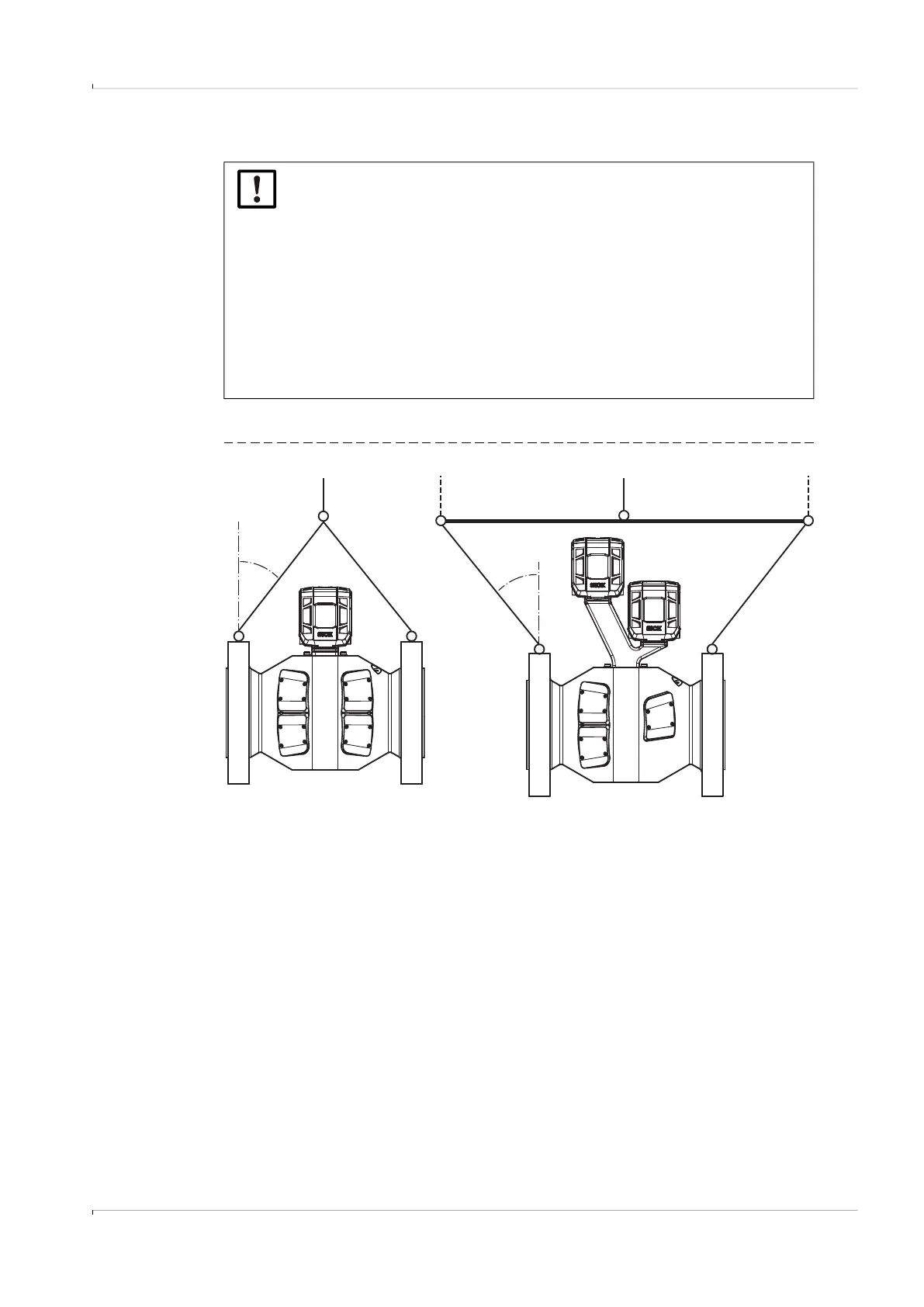

Fig. 18 Lifting requirements
▸
If a lifting angle of 45° cannot be ensured due to construction of the FLOWSIC600-XT,
e.g. for 2plex devices, a suitable traverse hoist must be used for lifting.
▸
For meters of nominal size DN80/3" and DN100/4" with double electronics (Y-neck),
the lifting lugs for correct alignment of the electronics must be removed and replaced
with dummy plugs.
NOTICE: Transport information
The lifting lugs are designed for transporting the meter only.
Do not lift or transport the FLOWSIC600-XT with additional loads using these
lugs.
▸
The FLOWSIC600-XT must not swing or tilt on the lifting gear during
transport.
▸
Never attach lifting gear to the Signal Processing Unit or its mounting
bracket and avoid contact between these parts and the lifting gear.
▸
Flange sealing surfaces, Signal Processing Unit housing and transducer
cover caps may be damaged when the lifting gear is not attached properly.
▸
Take suitable protective measures to prevent any damage when carrying
out other work (e.g. welding, painting) near the FLOWSIC600-XT.
Max
45 °
Max
45 °
