3.4.8.4 Ex-e terminal compartment

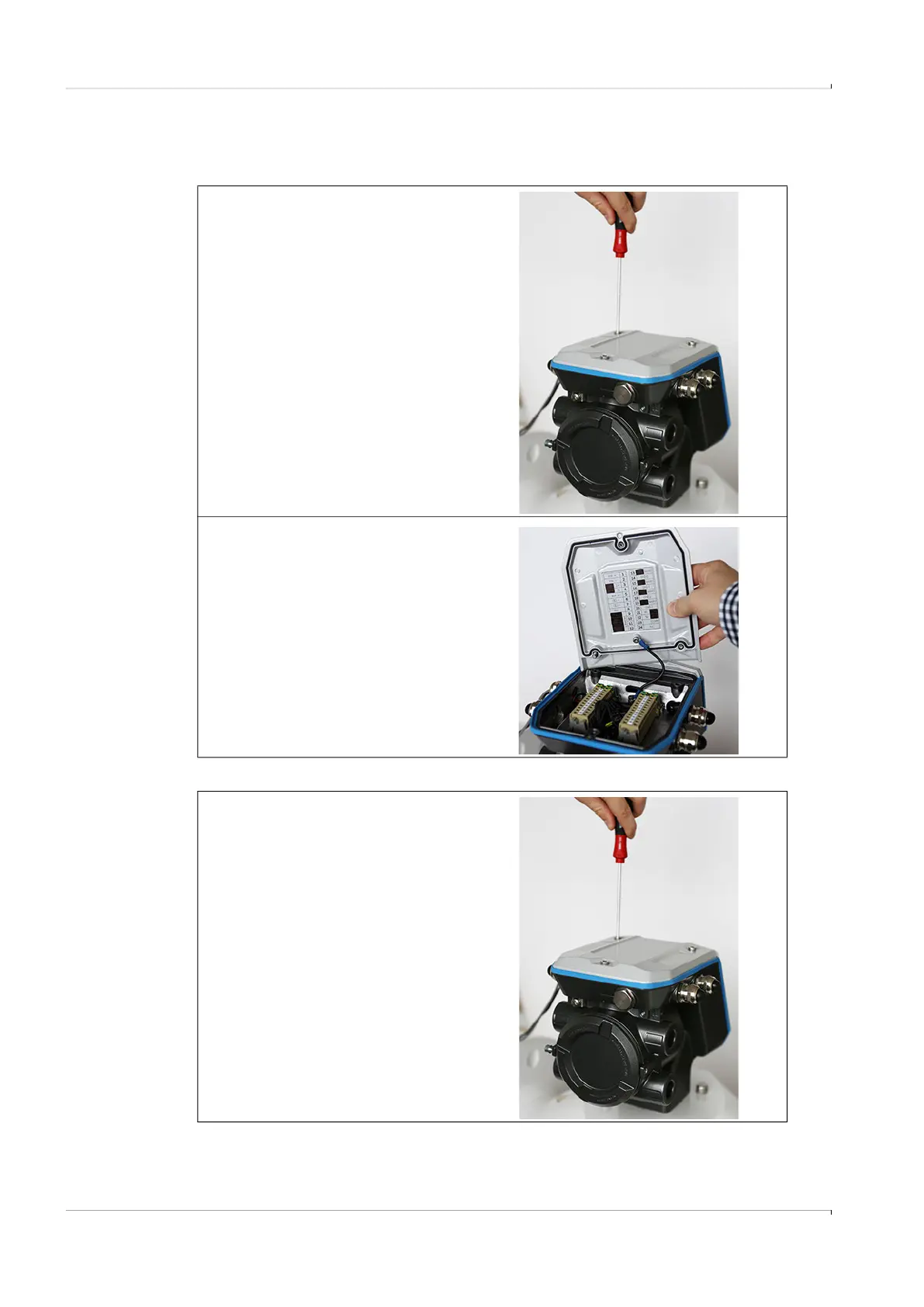

Opening the Ex-e terminal compartment
Closing the Ex-e terminal compartment
1 Loosen the 3 screws (captive) of the
Ex-e terminal compartment cover
with an SW4 Allen key.
2 Put the terminal compartment cover
in the holder provided.
1 Ensure the sealing area is free from
contamination.
2 Position the cover on the Ex-e
terminal compartment.
3 Tighten the 3 screws (captive) of the
Ex-e terminal compartment cover
with an SW4 Allen key (torque 5 Nm).
