Commissioning and Operation
Subject to change without notice
4.3.2.4 P + T pressure and temperature sensor
▸
Check the source as well as the default and fixed values for pressure and temperature.
The values are preset for high-pressure calibrated devices.
▸
For non-calibrated devices, enter the default and fixed values for pressure and
temperature corresponding to the average values expected on the device for operating
pressure and operating temperature.
4.3.2.5 Volume converters (optional, only for devices with the volume conversion device option)
▸
Select the parameters for the calculation.
▸
Enter the specifications for gas characteristics.
▸
Select the algorithm for calculating the compressibility factor.
4.3.2.6 Archives/Logbooks
Logbooks
▸
Configure how the logbooks function:
– Stop: A warning is output when the logbook is full.
– Rolling: The oldest entries are overwritten when the logbook is full.
Data archive 1 and data archive 2
The standard archive configuration records data archive 1 hourly and data archive 2 daily in
forward flow direction. Recording periods and recording directions as well as the totalizer to
be recorded can be configured:
● Log cycle: Recording period
● Direction: Recording direction
The setting for totalizer 1 is used for totalizer 2 when the recording direction is set to
“bidirectional”. This means totalizer 1 records in forward direction and totalizer 2 in
backward direction.
● Data record type 1: Totalizer 1
● Data record type 2: Totalizer 2
Archive data structure, see → p. 33, §2.9.2.
4.3.2.7 Diagnostics/warnings
The standard limits for natural gas applications are set at the factory.
▸
Activate single warnings as desired:

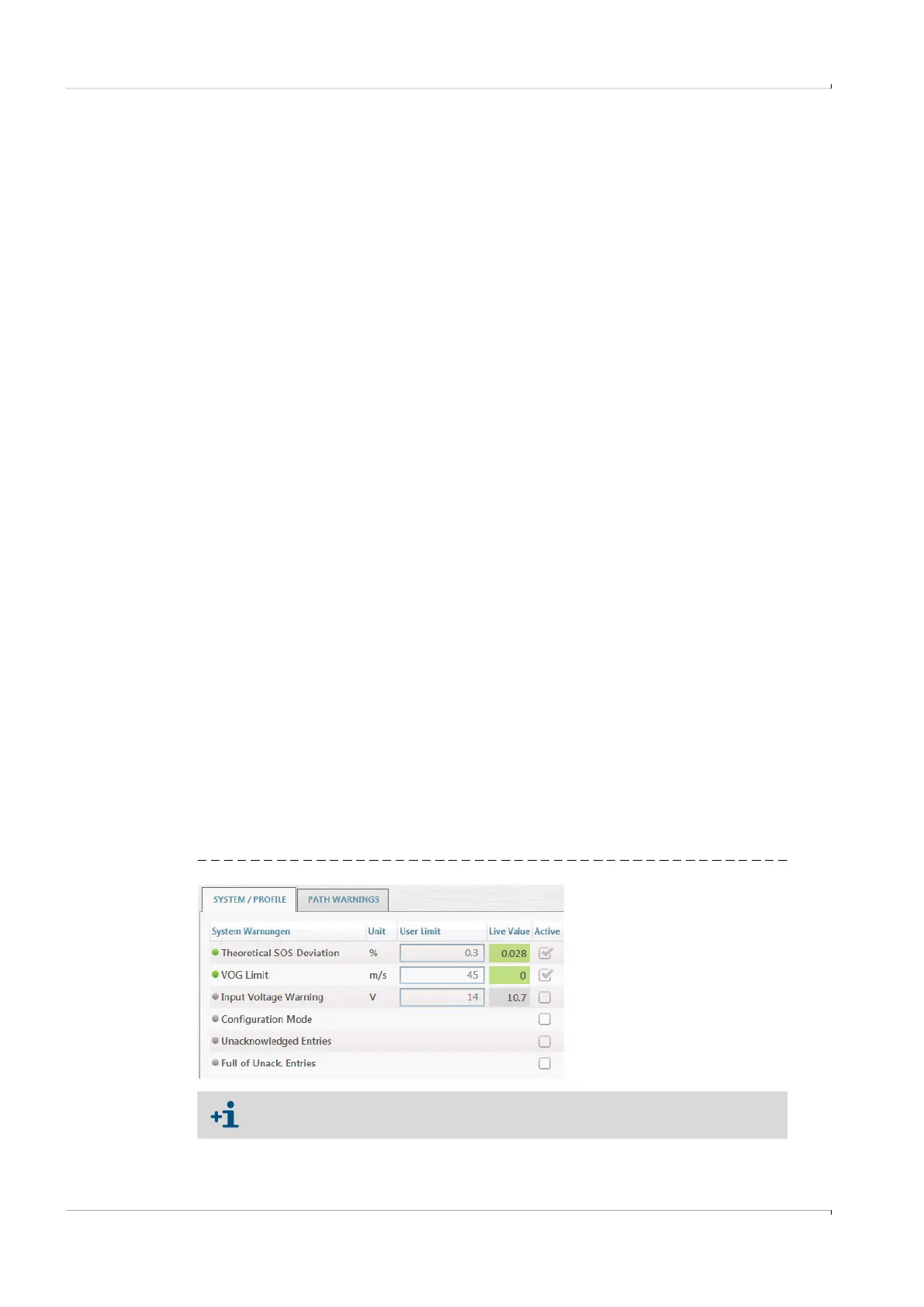

Fig. 42 Example: System warnings
SICK recommends adapting the limit values to the application conditions after
several weeks of measuring operation.
