Installation
Subject to change without notice

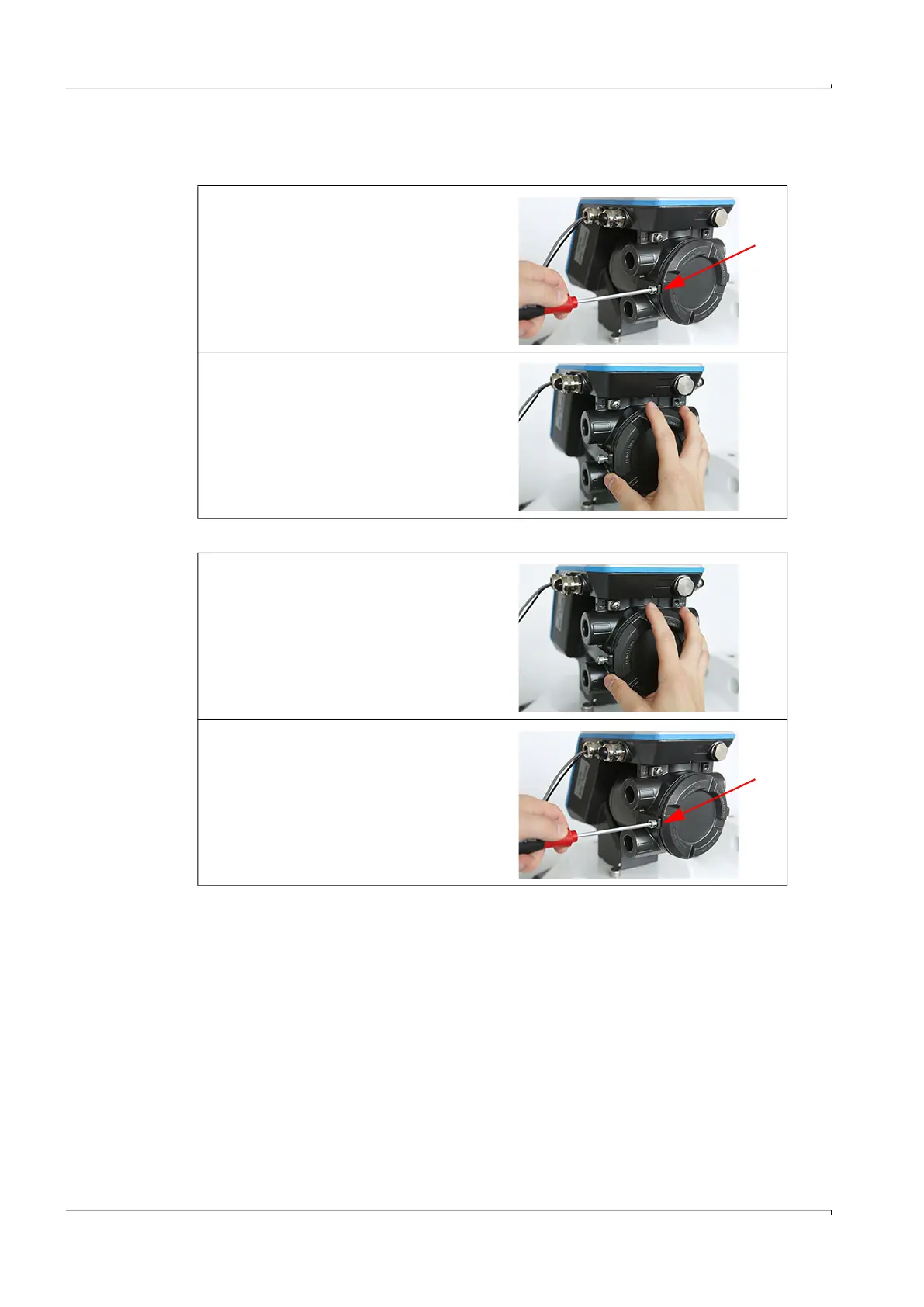

3.4.8.3 Ex-d terminal compartment
Open the Ex-d terminal compartment
Closing the Ex-d terminal compartment
1 Loosen the securing screw on the
Ex-d terminal compartment cover
with an SW5 Allen key.
Ensure the tip of the screw no longer
extends into the groove of the cover.
2 Unscrew the terminal compartment
cover.
To loosen the cover, position a
suitable tool (e. g. the shaft of a ring
spanner) in the provided recesses in
the cover.
1 Make sure that the threads are
clean. Grease the threads with an
assembly paste as required.
2 Screw the terminal compartment
cover back on handtight. Do not use
a tool for this work step.
3 Tighten the securing screw on the
Ex-d terminal compartment cover
with an SW5 Allen key until the tip of
the screw slightly enters the material
of the cover.
Do not operate the device without
the securing screw!
