9.5 Type plates (examples)

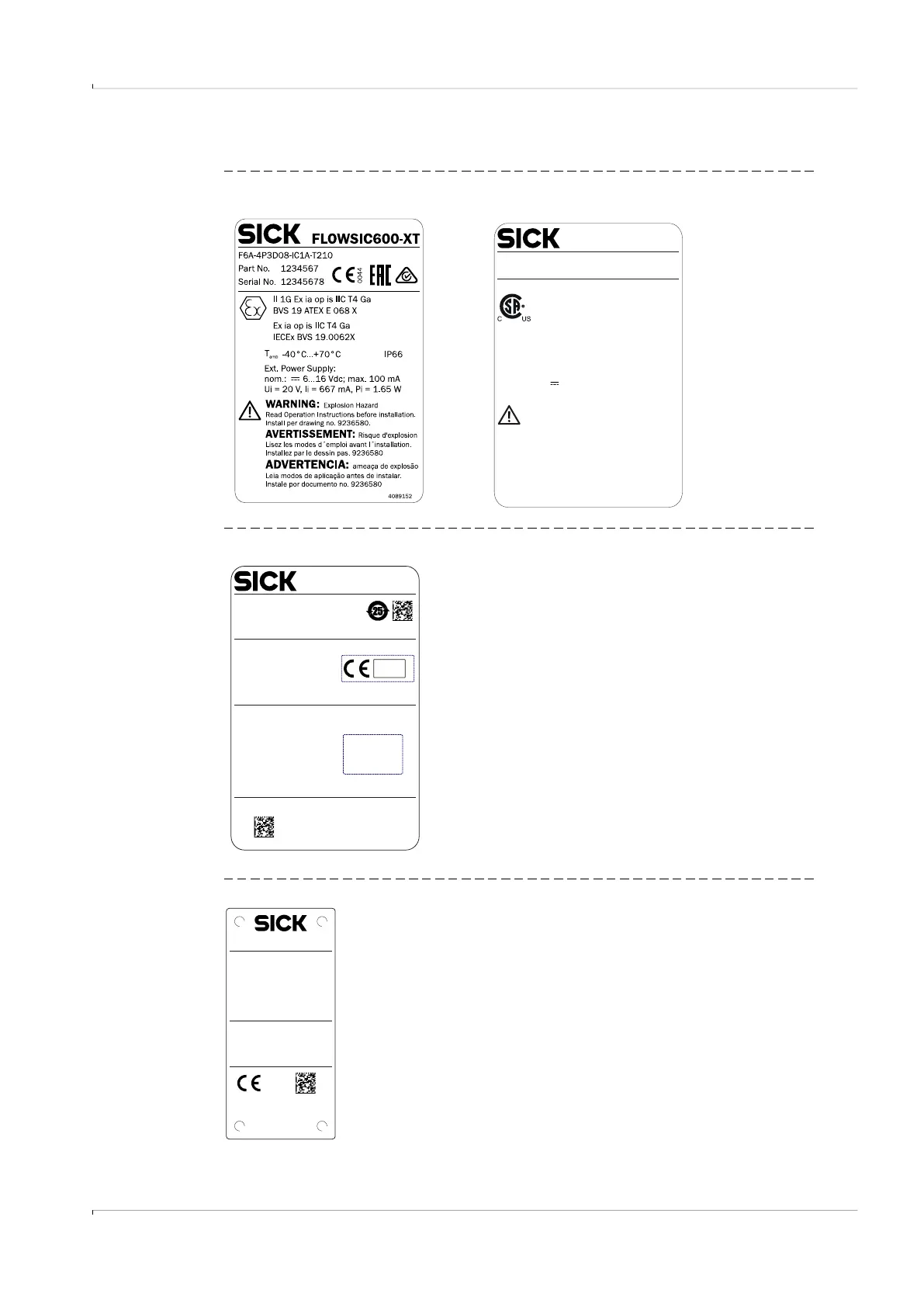

Fig. 90 Ex identification (examples)
Fig. 91 Measuring Instrument Directive type plate (example)
Fig. 92 Pressure Equipment Directive type plate (example)
Identification according to ATEX/IECEx
4089155
FLOWSIC600-XT
Cl. I, Div. 1, Groups A, B, C, D; T4
Ex ia IIC T4 Ga
Cl. I, Zone 0, AEx ia op is IIC T4 Ga
CSA 16.70070273
WARNING: Explosion Hazard
Read Operation Instructions before installation.
Install per drawing no. 9236581
Substitution of components
may impair Intrinsic Safety.
AVERTISSEMENT: Risque d'explosion
Lisez les modes d´emploi avant I´installation.
Installez par le dessin pas. 9236581
La substitution de composants peut
compromettre la securite intrinseque.
T
amb
IP66, Type 4
Ext. Power Supply:
nom.: 6...16 Vdc; max. 100 mA
Ui = 20 V, Ii = 667 mA, = Pi = 1.65 W
Part No. 1234567 Serial No. 12345678
F6A-4P3D08-CI1A-T218
Ex ia Intrinsically Safe
Securite Intrinseque
-40°C...+70°C
Identification according to CSA
Made in Germany
SICK Engineering GmbH
Bergener Ring 27
01458 Ottendorf-Okrilla
Germany
4089601
F6A-4P3D08-EC1E-T210
Serial No. 12345678
Year 06/2016
Part No. 1234567
ID: 7 SIC00 1451 0014
M2, E2, IP66
T
amb
T
gas
For value P and C see display
e p
Metrological seal
20 m³/h
160 m³/h
4000 m³/h
Q
min
Q
t
Q
max
-40°C...+70°C
-40°C...+85°C
FLOWSIC600-XT
TEC: DE-16-MI002-PTB001
MPE 1.0 %
0$,1 METER
0102
M16
DN/NPS 300/12”
0062
Fluid Gr.
4089591
Serial No.
Year
PS
TS
PT
FLOWSIC600-XT
Made in Germany
Weight
12345678
05/2016
720 kg
1
-45/+80°C
120 bar
230 bar
