36 FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH
Product description
Subject to change without notice

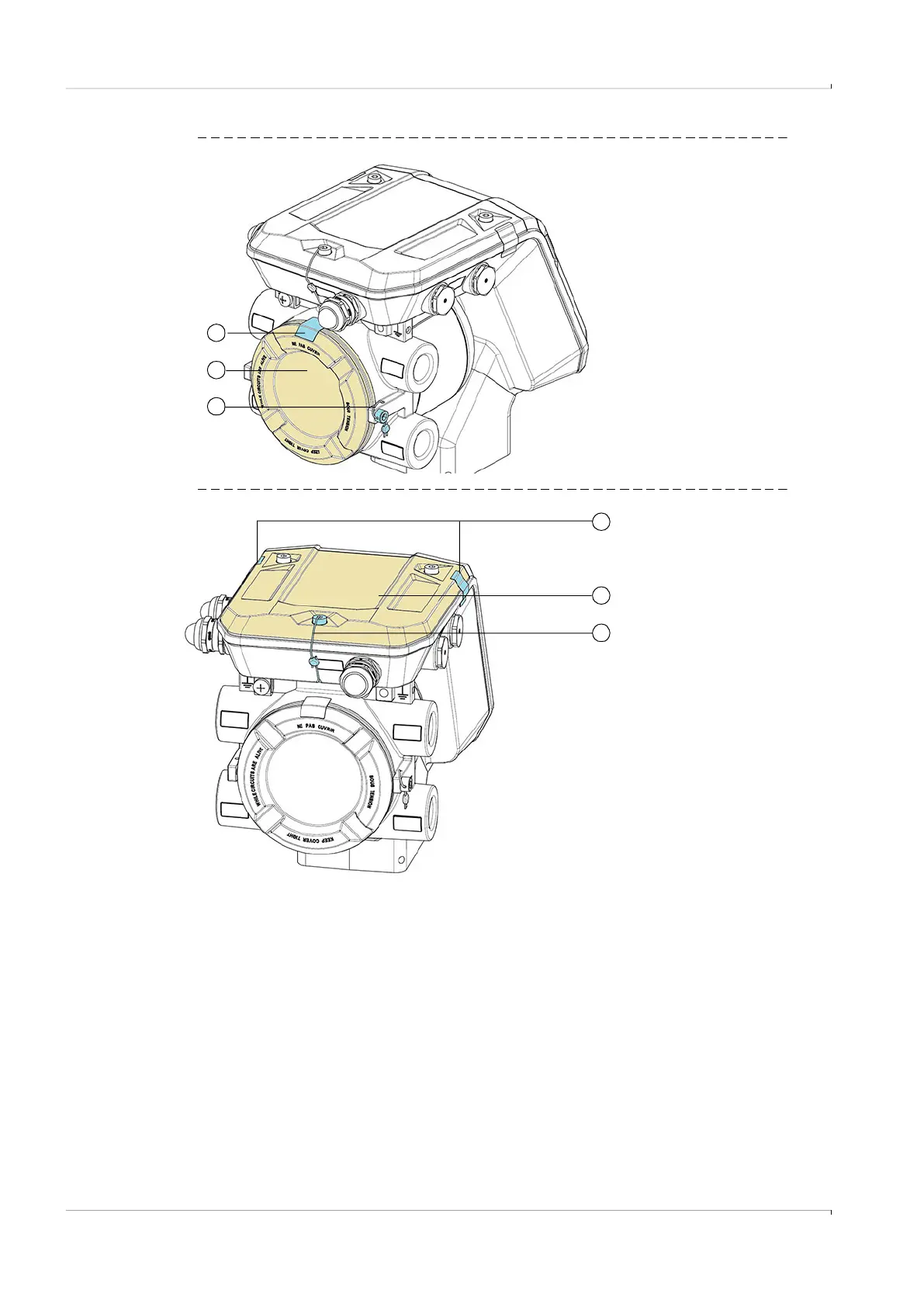

Fig. 16 Sealing the Ex-d terminal compartment
Fig. 17 Sealing the Ex-e or Ex-i terminal compartment
Seals on the transducer cover caps
The cover caps are sealed with at least one adhesive label that must be glued over the
openings of the fastening screws.
2
1 Wire seal with screw with cross hole
2 Ex-d terminal compartment cover
3 Adhesive label
3
1
1
1 Adhesive label
2 Terminal compartment cover
3 Wire seal with screw with longitudinal hole
2
3
