Installation
FLOWSIC600-XT · Operating Instructions · 8018846/1BHP/V2-1/2021-05 · © SICK Engineering GmbH 65
Subject to change without notice

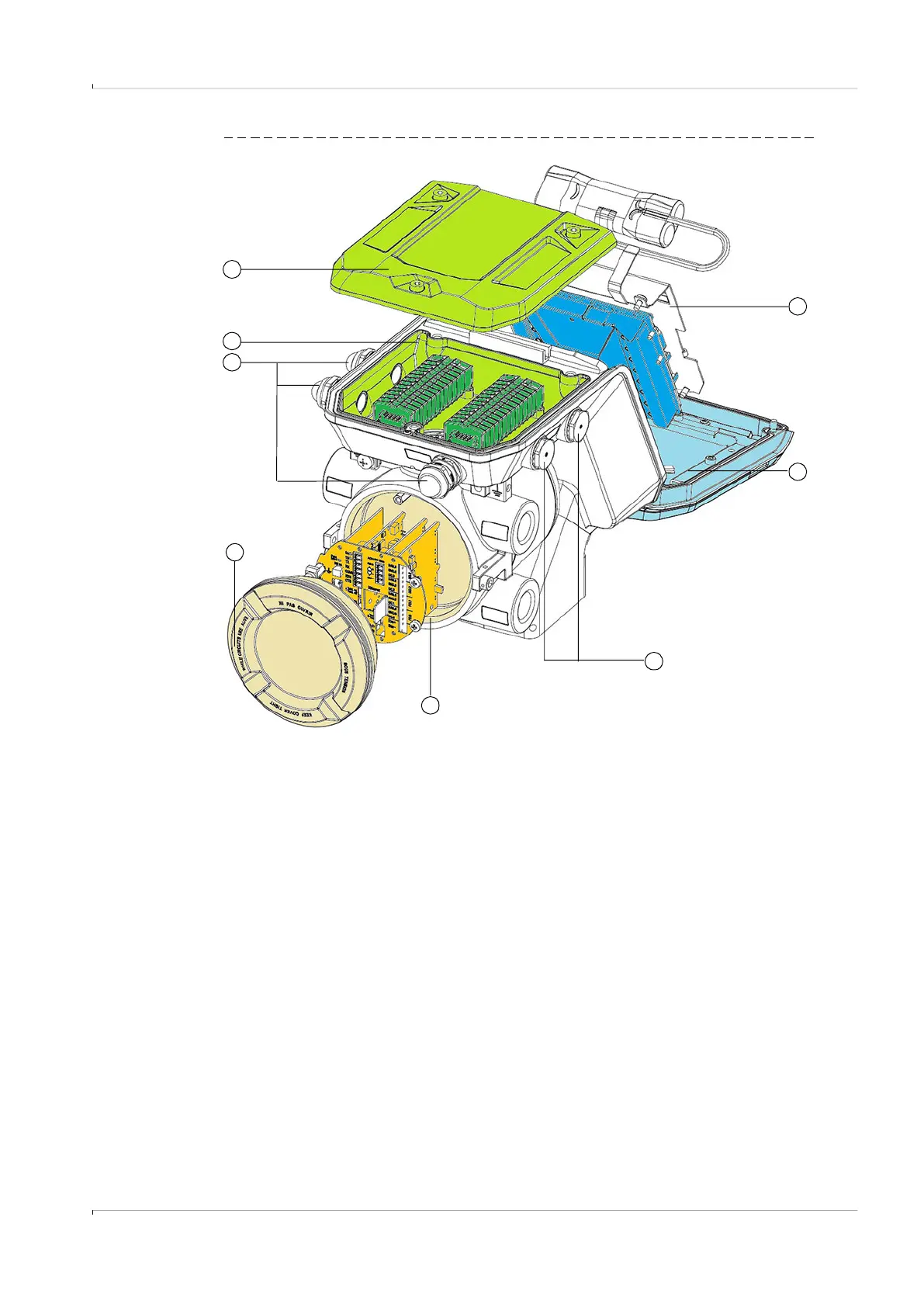

Fig. 30 Ex-de enclosure version
1
2
5
1 Flameproof enclosure with I/O electronics
2 Ex-d terminal compartment cover
3 Cable gland (5x M20 or 1/2“ NPT)
4 Ex-e terminal compartment
5 Ex-e terminal compartment cover
6 Ex-i transducer electronics with cover and backup battery
7 Display unit
4
6
7
3
3
