PRODUCT DESCRIPTION
2 Product Description
2.1 Features of the VISIC100SF
▸ Simultaneous or individual measurement of
a) Standard:
– Visibility (K-value)
b) Optional
– CO concentration
–NO concentration
–NO
2
concentration
– Combination of two gas concentrations possible
▸ Measuring visibility with fog dissipation (optional).
▸ Compact design with low space requirements
▸ Already calibrated ex factory, no readjustment required onsite (Plug & Measure).
▸ Scope of delivery with or without terminal box.
▸ Scope of delivery with or without TAD control unit
▸ Keypad and single-line display in the measuring unit to
– Display values when the device is open.
– Control diagnosis and maintenance.
– Assign device addresses when using bus wiring.
▸ Status LED signals error-free operation (green), maintenance request (yellow) and
malfunction (red).
▸ Standard: 3 analog outputs and 2 digital outputs, 1 Modbus-RTU
▸ Optional: PROFIBUS DP-V0

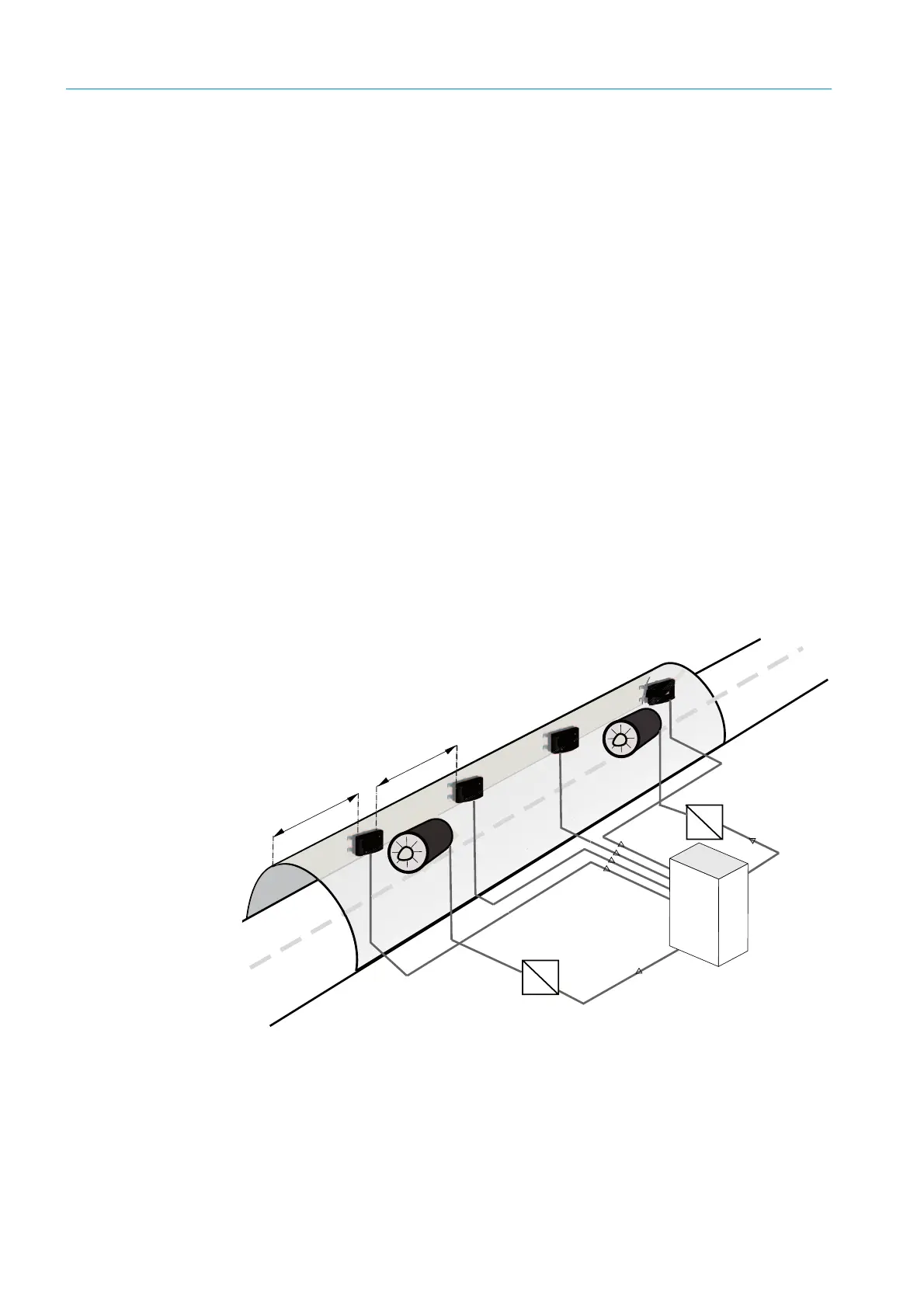

Fig. 1: VISIC100SF application example
ca. 300 m
...
ca.150 m
ʛ
ʛ
ʛ
ʛ
ʛ
ʛ
K-value
CO /NO/
NO
2
Option:
- Terminal box and/or TAD
- Fog dissipation: Version with heating
Tunnel
control room
