VISIC100SF MENU NAVIGATION
5.6.9 Displaying visibility as “K-value” or “μg”
Use menu item “k/μg” to set whether visibility is output as “K-value” or “μg”.

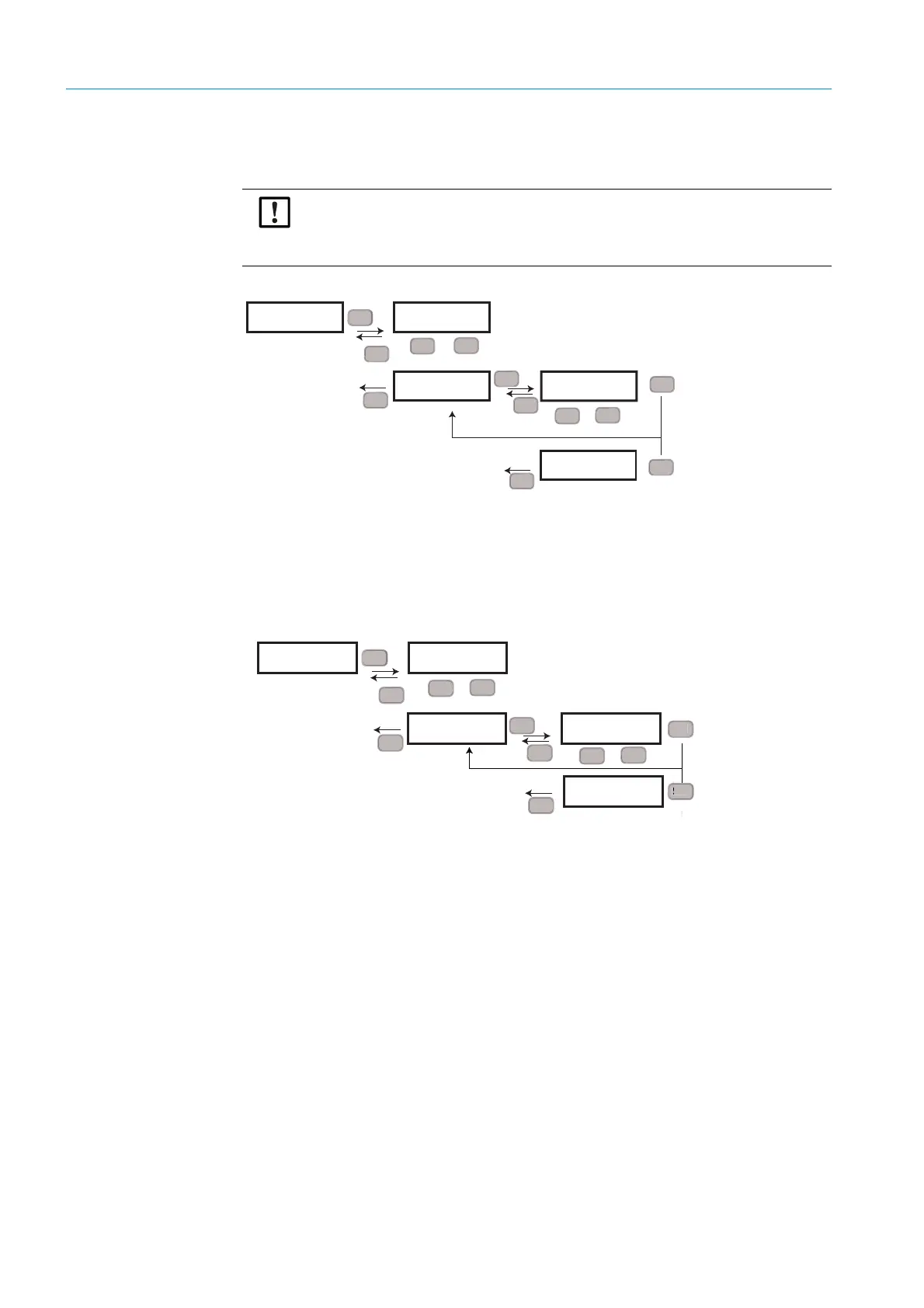

Fig. 51: Output visibility as “K-value” or “μg”
5.6.10 Activating/deactivating the external temperature sensor (optional)
The external temperature sensor (optional) is activated or deactivated in menu item
“Temp”. When the external temperature sensor is activated, the temperature is output on
the basic display of VISIC100SF. The temperature sensor is deactivated at the factory.
Fig. 52: Activating/deactivating the external temperature sensor
NOTE: When the dust concentration is activated, k becomes μg
For representation of visibility in μg, the value in the VISIC100SF display is not output as
K-value but as μg.
The transmitted measuring range in μg is 0 to 1500μg.
