5.6.7 Assigning analog outputs with menu item “IOMap”
The assignment of analog outputs AO1-AO4 can be changed with menu item “IOMap”.
Possible values for assigning analog outputs:
● k or μg
● CO
● NO
● NO
2
●
Temperature

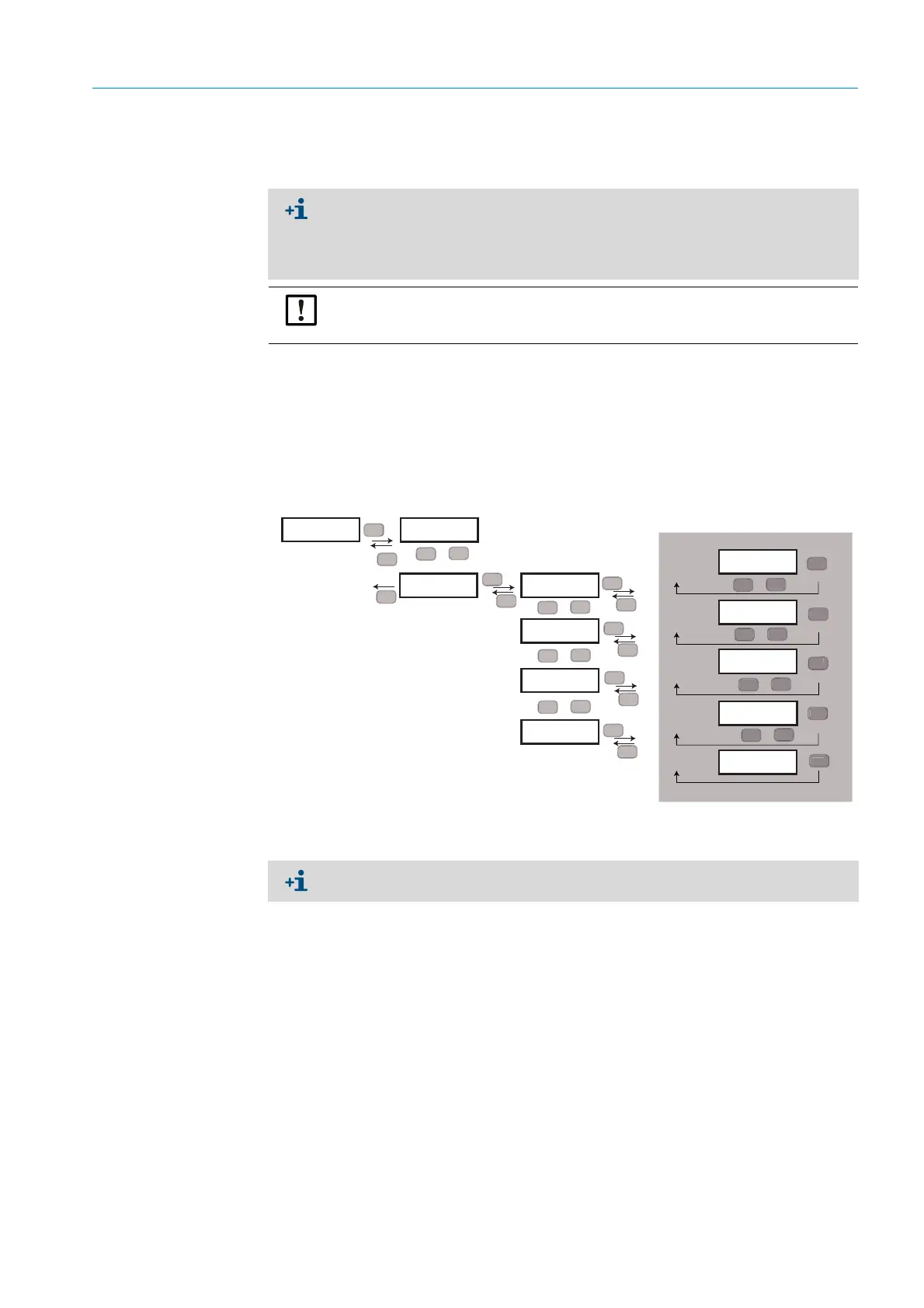

Fig. 50: Assigning analog outputs
5.6.8 Managing maintenance requests for gas sensors with submenu item “Gas”
Factory setting:
AO1=VIS
AO2= NO
AO3= CO
AO4=Temp
The VISIC100SF is equipped with analog outputs AO1 - AO3. The TAD control unit with
supplementary I/O modules is required to implement a 4
th
analog output. All outputs
are configured via the VISIC100SF or the TAD control unit.
RUN
X
XXX
Set
SET
Maint
Esc
2 s
>
>
... ...
SET
IOMap
Esc
Set
SET
AO1
Esc
SET
AO2
Set
Esc
>
>
SET
AO3
>
>
SET
>
>
AO4
Set
Esc
Set
Esc
Set
Esc
SET
CO
Set
SET
4mA
Set
SET
NO2
SET
NO
Set
S
>
>
>
>
SET
Set
k/µg
SET
Temp
Set
>
>
>
>
This submenu item is displayed according to the gas sensors (CO or NO) installed. This
submenu item is password-protected and accessible for SICK Service technicians only.
