5 ELECTRICAL INSTALLATION
76
8026362 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
Subject to change without notice
5.1.2 Cabinet with LFT Ethernet switch

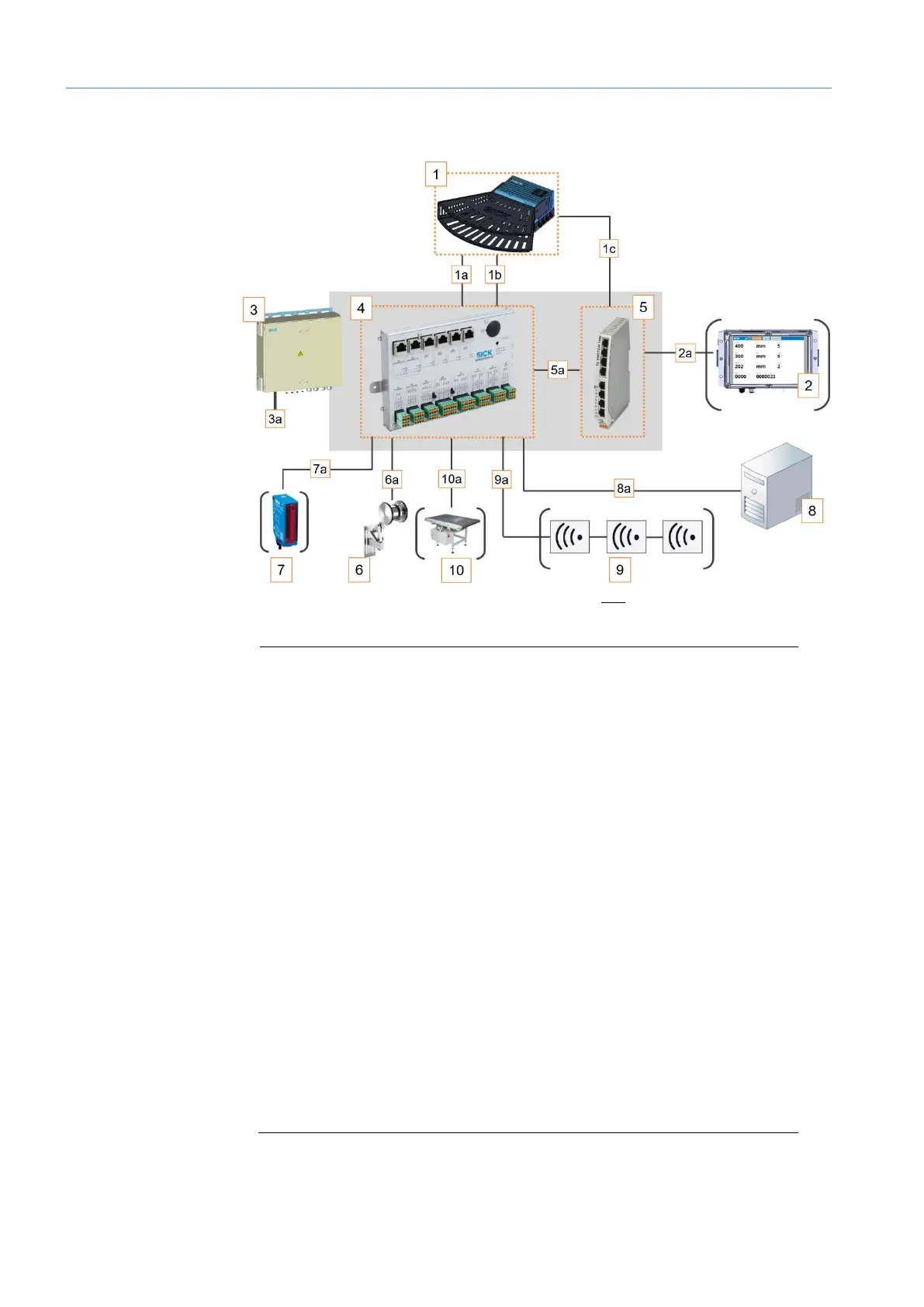

Fig. 73: Connection overview for VMS4100/5100 - cabinet with LFT Ethernet switch
Legend
1
2D LiDAR sensor
1a
CAN bus
1b
Increment
1c Ethernet
2 LFT display - VMS5100 only
2a
Ethernet
3
Cabinet
3a
Feed 100 ... 264 V AC / 50 ... 60 Hz
4 SIM2000-2 Prime controller
5 LFT Ethernet switch
5a
Ethernet
6
Incremental encoder
6a
Encoder signal
7 Photoelectric retro-reflective sensor (optional)
7a Trigger signal
8
Customer server
8a
Data output via Ethernet, fieldbus, or serial connection
9
Reading station (optional)
9a CAN bus
10
Weighing station (optional)
10a
Data connection
