SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
3.2.4 Cabinet

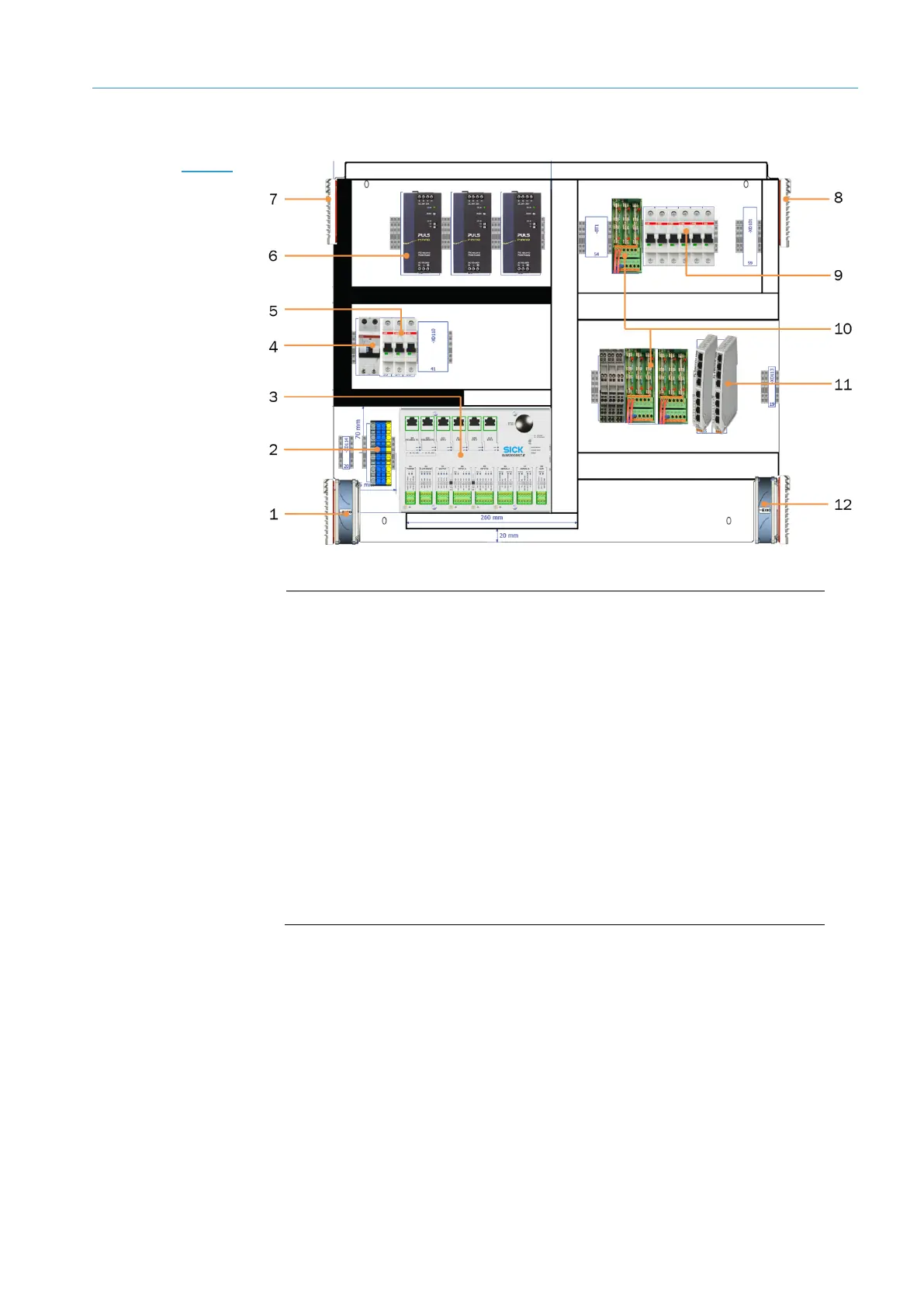

Fig. 6: Cabinet for VMS4100/5100 without LFT Ethernet switch
Legend
1 Air inlet for cooling (with filter mat and cooler)
2 Terminals for voltage supply IN (100–264 V AC / 50–60 Hz)
3 SIM2000-2 Prime controller with alibi memory
4 RCD (residual current device) for protective contact plug
5 Circuit breaker
6 Power supply unit for supplying voltage to 2D LiDAR sensor
7 Air outlet for cooling (with filter mat)
8 Air outlet for cooling (with filter mat)
9 Circuit breaker
10 Terminals (24 V DC) and fuse module OUT
11 Ethernet switches for connecting additional sensors
11 Air inlet for cooling (with filter mat and fan)
• Contains power supply units for the central voltage supply to system components.
• Contains the SIM2000-2 Prime controller, the central processing unit, and the control
unit of the VMS4100/5100.
• The SIM2000-2 Prime controller contains the legally relevant memory (alibi memory).
