3.2.1 LMS4x21 2D LiDAR sensor

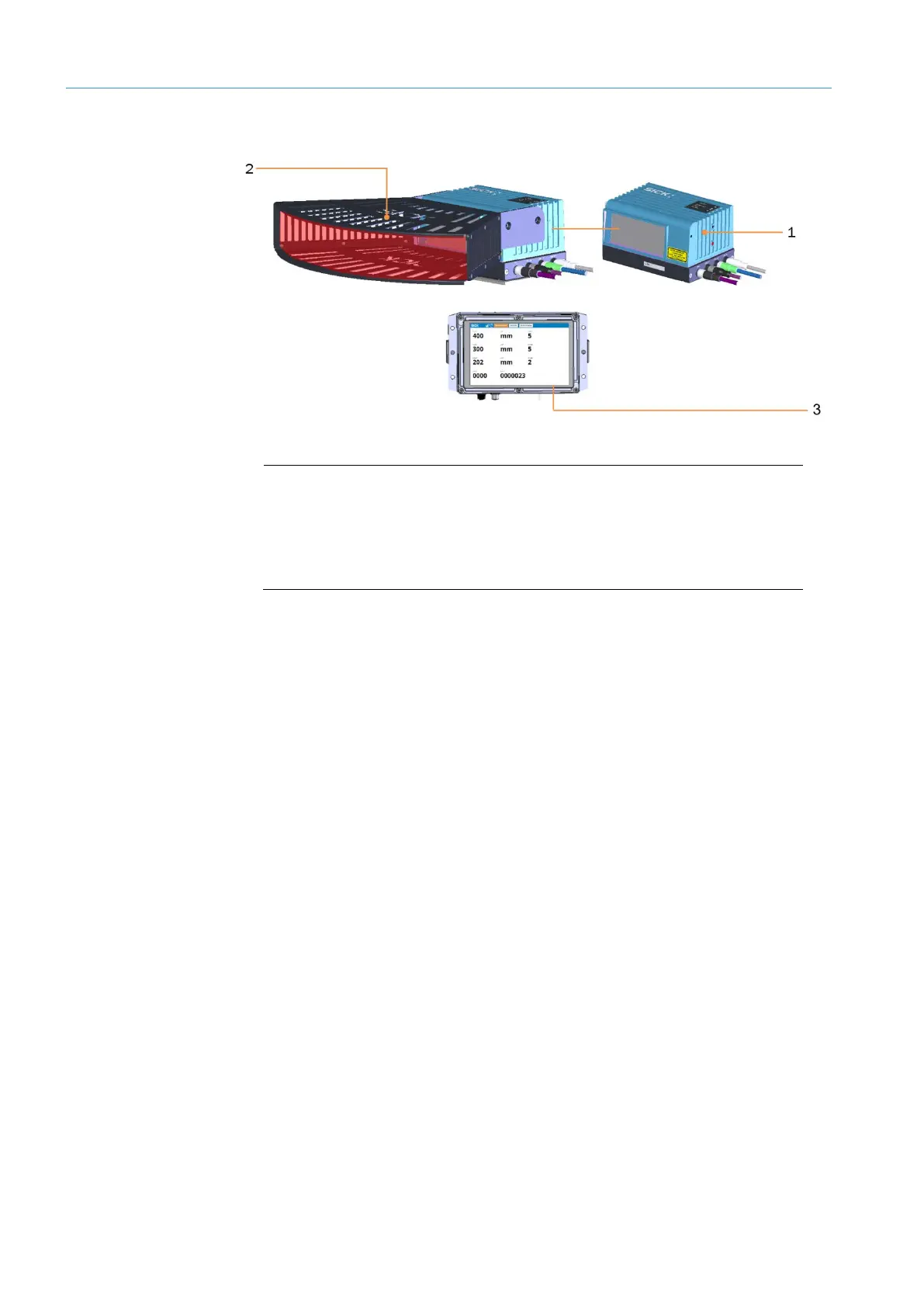

Fig. 3: LMS4x21 2D LiDAR sensor with LFT display - VMS5100 only
Legend
1 LMS4x21 2D LiDAR sensor
2 Laser protective cover
3 LFT display for VMS5100 measurement systems approved for billing
applications
• Consists of an LMS4x21 2D LiDAR sensor with laser protective cover, with the sensor
mounted in a centered position on a profile above the conveying equipment.
• Used to calculate the relevant object dimensions by detecting the object on flat
conveying systems without making contact.
• VMS5100 measurement systems operated in legal-for-trade applications also have a
separate LFT display to show the measurement results, status information, firmware
version, and logbook (version history).
