5 ELECTRICAL INSTALLATION
82
8026362 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
Subject to change without notice
5.5.2 Connection of the LFT display on LFT Ethernet switch

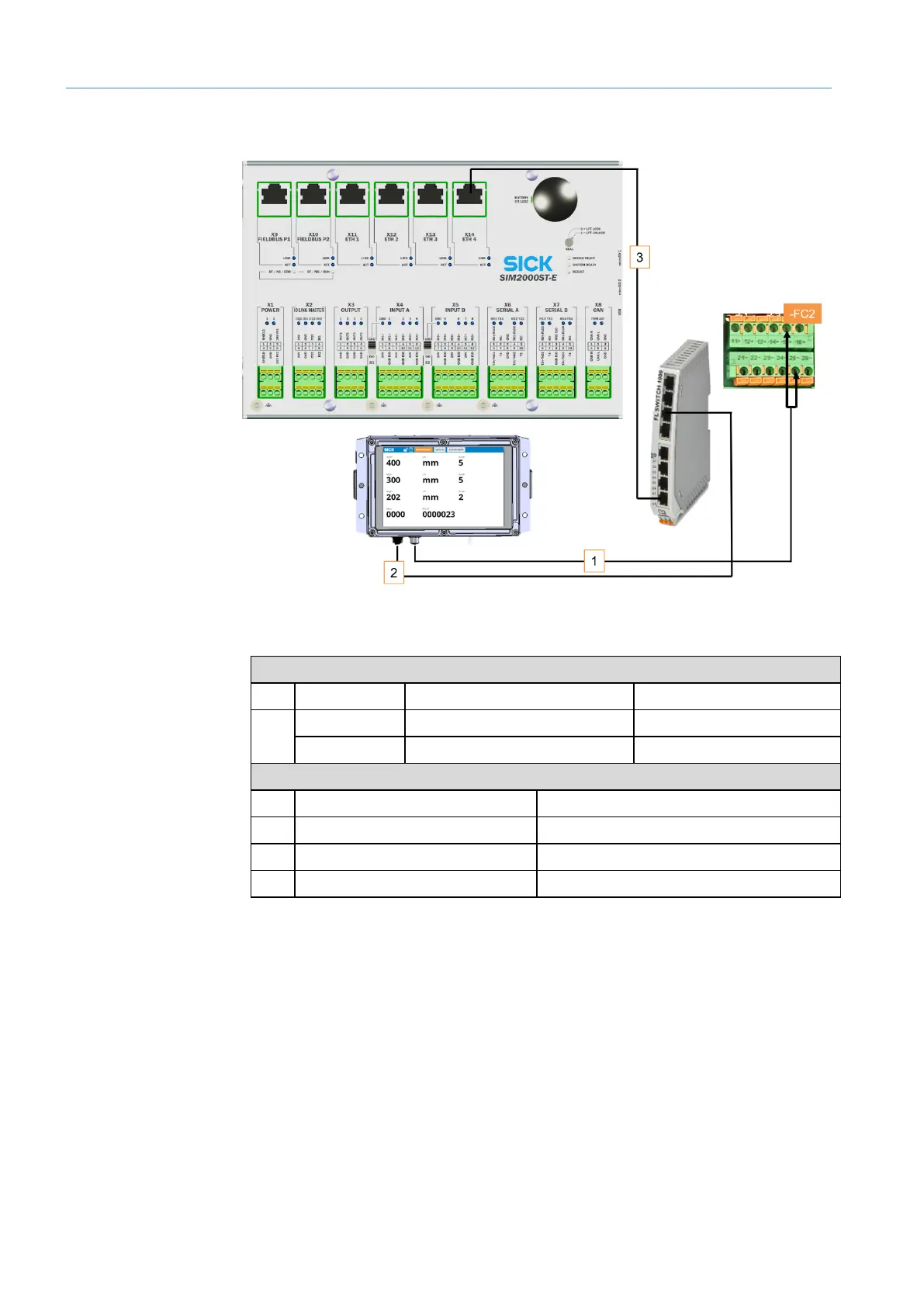

Fig. 79: Connection of the LFT display to the LFT Ethernet switch
Voltage supply
No. Wire color Area on fuse block Connection
1 Brown FC2 15 +
Blue FC2 25 –
Ethernet data cable
No. Connection on LFT display Port on LFT Ethernet switch
2 Ethernet (X118) 3
No. Port on Ethernet switch Port on SIM2000-2 Prime
3 8 X14 ETH 4
Tab. 14: Connection of the LFT display to the SIM2000-2 Prime/LFT Ethernet switch
