5 ELECTRICAL INSTALLATION
78
8026362 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
Subject to change without notice
5.3 Connection for LFT Ethernet switch (set up at the factory)

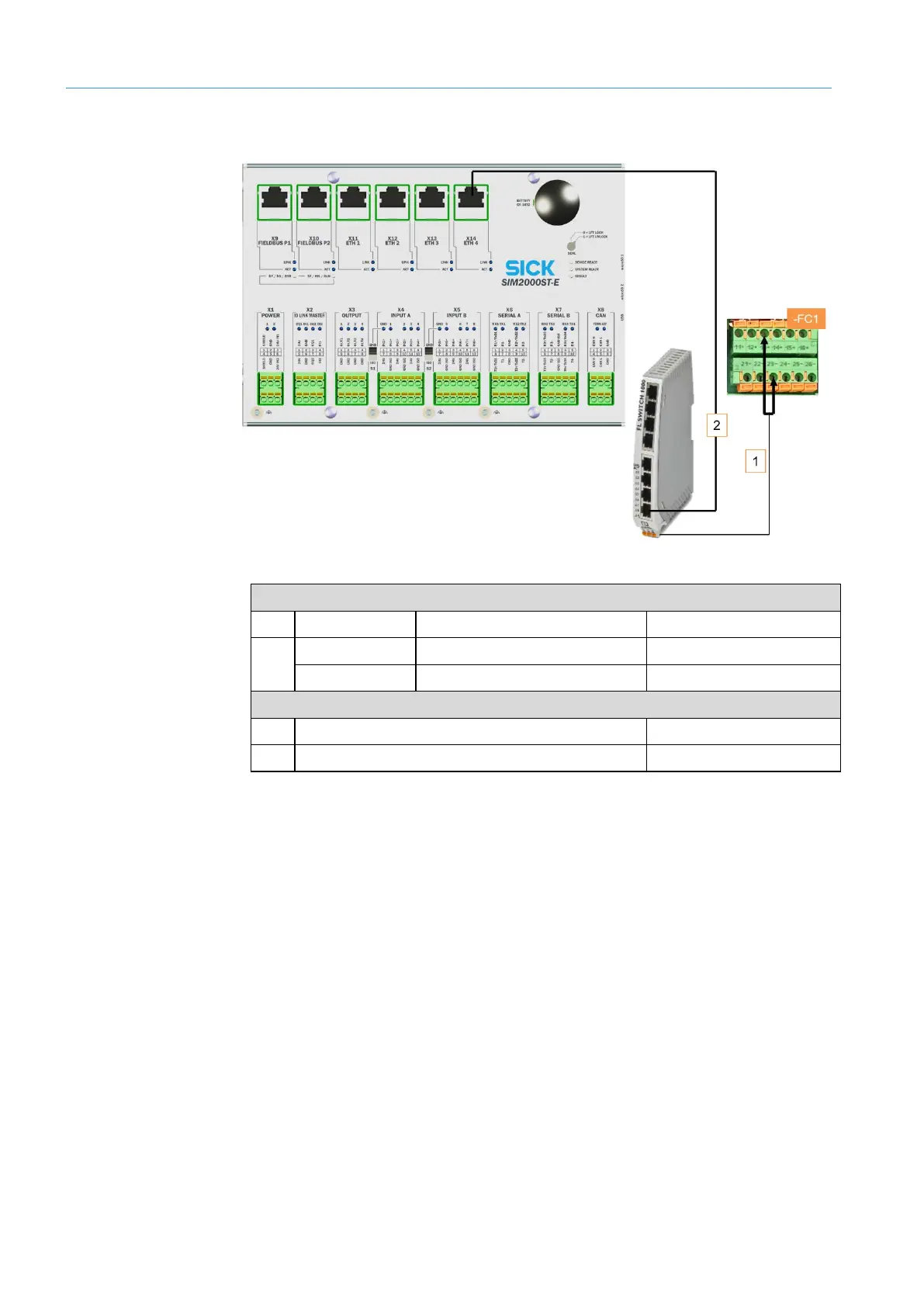

Fig. 75: Connection for LFT Ethernet switch (set up at the factory)
Voltage supply
No. Wire color Area on fuse block Connection
1 Dark blue FC1 13 +
Dark blue/Red FC1 23 –
SIM2000-2 Prime controller Ethernet connection
No. Connection on LFT Ethernet switch Port on ST-E
2 8 X14 ETH 4
Tab. 10: Connection for LFT Ethernet switch (set up at the factory)
