SYSTEM DESCRIPTION 3
8026362 / V1-0/2022-03|SICK
Subject to change without notice
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
3.8.2 Security seal
In order to protect measurement systems that have been verified as legal for trade
against manipulation, all legally relevant components that influence the measurement
result must be provided with seals in accordance with the seal diagram depicted in the
figure below.
The security seals are attached to the VMS5100 components after mounting and the
conformity check.
NOTE! Never break any seals. A broken seal causes the legal for trade calibration period
to end ahead of schedule. Use of the VMS5100 for billing purposes is then no longer
permitted.
▸
The incident must be reported to the manufacturer and the office of weights and
measures.
Security seals prevent the attachment mechanism of the 2D LiDAR sensors and the plug
connections of the connections from misaligning.

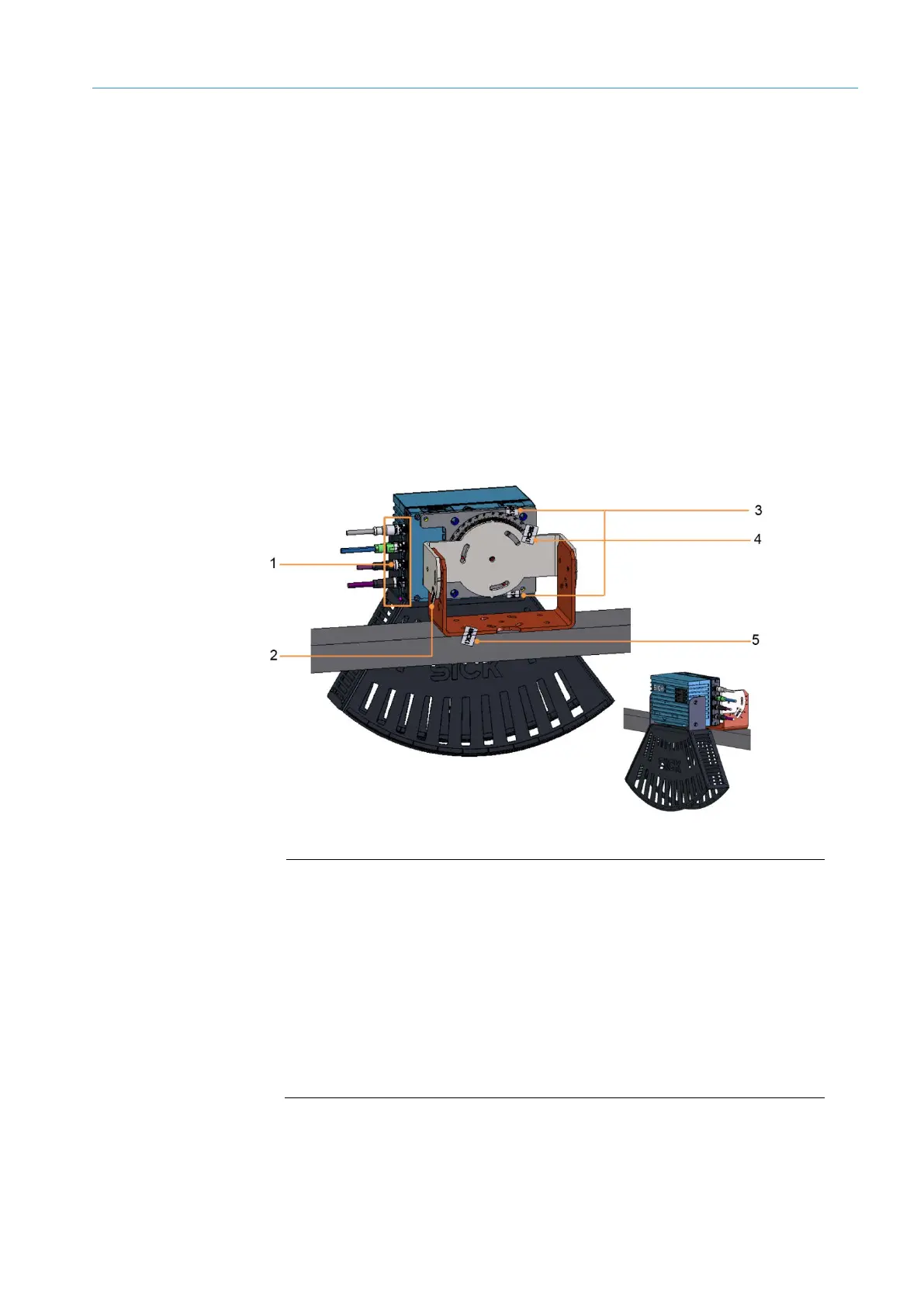

Fig. 41: Security seals on the 2D LiDAR sensor
Legend
1 Security seal on all plug connections for the electrical connections
2 Security seal on the connection of the mounting bracket and adjustment
mechanism
3 Security seals on the connection of the mounting plate and 2D LiDAR
sensor
4 Security seal on the connection of the adjustment mechanism and 2D
LiDAR sensor mounting plate
5 Security seal on the connection of the mounting bracket and mounting
frame
Seal on the
2D LiDAR sensor
