5.8 Connecting the customer interface

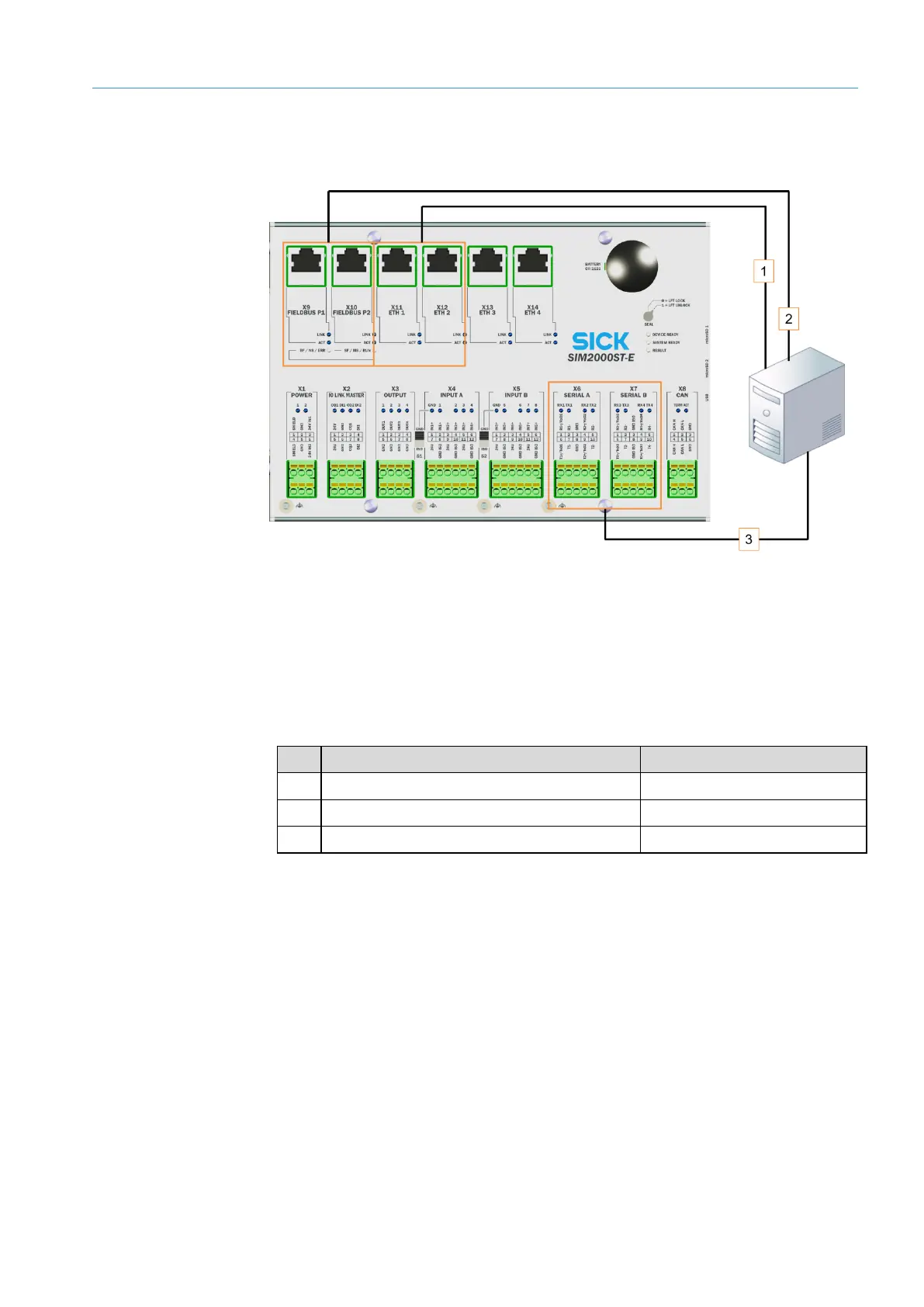

Fig. 82: Connection to the customer network
The measuring and reading data is issued to the customer system in one of the following
data issue formats:
• Ethernet
• Fieldbus
• RS-232 / RS-422
Terminal / Port Connection
1 X11 ETH1, X12, ETH 2, X13 ETH3 Ethernet
2 X9 FIELDBUS P1, X10 FIELDBUS P12 Fieldbus
3 X6 SERIAL A/X7 SERIAL B RS-232 / RS-422
NOTE! If a reading station has been integrated, the image information processed by the
camera systems can be transmitted to a customer server via a separate Ethernet or Gbit
interface.
Data cable
Connection
