4.4 Mounting the cabinet

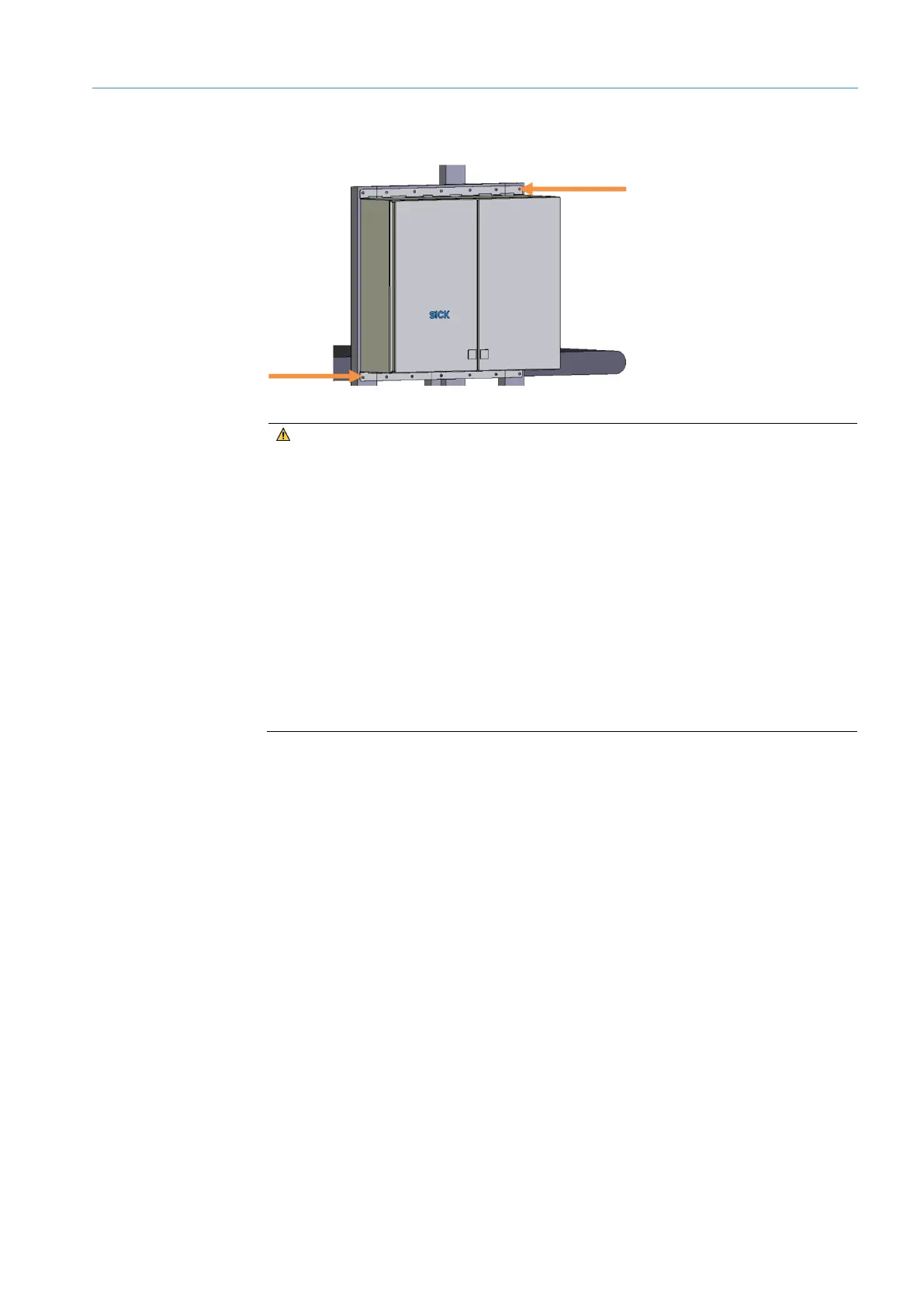

Fig. 71: Mounting the cabinet
DANGER!
RISK OF INJURY FROM SUSPENDED LOADS
The track and trace cabinet can weigh up to 36 kg depending on the variant.
Severe injury or death.
▸
Never stand under suspended loads.
▸
Pay close attention when lifting loads.
▸
Comply with lifting instructions to prevent injuries and accidents.
▸
Use suitable, undamaged lifting tools.
▸
Prevent the cabinet from tipping over during transport.
▸
Wear personal protective equipment (safety helmet, safety shoes).
▸
Obtain the assistance of at least one other person during mounting.
Use the mounting accessories included with delivery.
▸
The cabinet should generally be mounted as close to the measuring system as possible
so that all connecting cables can be laid easily.
▸
Make sure that the cabinet doors can be easily opened.
▸
Ensure that the air inlets and outlets on the sides of the cabinet are not covered.
NOTE! To change the replaceable filter mats, the covers (louvered grills) can be opened
downwards. The cabinet needs additional freely accessible work areas of approx. 140 mm
on the left and right.
A mounting kit in a minigrip bag is supplied with the cabinet.
▸
Insert the sliding nuts into the two aluminum transverse profiles as per the technical
drawing and screw in the setscrews.
▸
Mount the track and trace cabinet above the two mounting rails and into the setscrews
and secure the threaded connection with a washer and hexagonal nut.
NOTE! Use two people to lift the track and trace cabinet. Observe the ergonomic factors.
