SICK VMS4100 User Manual

MAINTENANCE AND REPAIR 7
107
8026362 / V1-0/2022-03|SICK
Subject to change without notice
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
7.2.3 Replacing the incremental encoder components
If the incremental encoder is defective, it must be replaced immediately.
Part no. Meaning
2058477 DFV60 incremental encoder
WARNING
Do not violate LFT mode on the VMS5100.
The VMS5100 multi-dimensional measurement system is operated in LFT mode.
▸
Do not replace the incremental encoder yourself.
▸
Do not break any adhesive seals.
▸
If repairs are required, contact the manufacturer.
▸
Unscrew the M12 plug connection from the male connector on the measuring wheel
encoder.
▸
Loosen and remove the fixing screws.

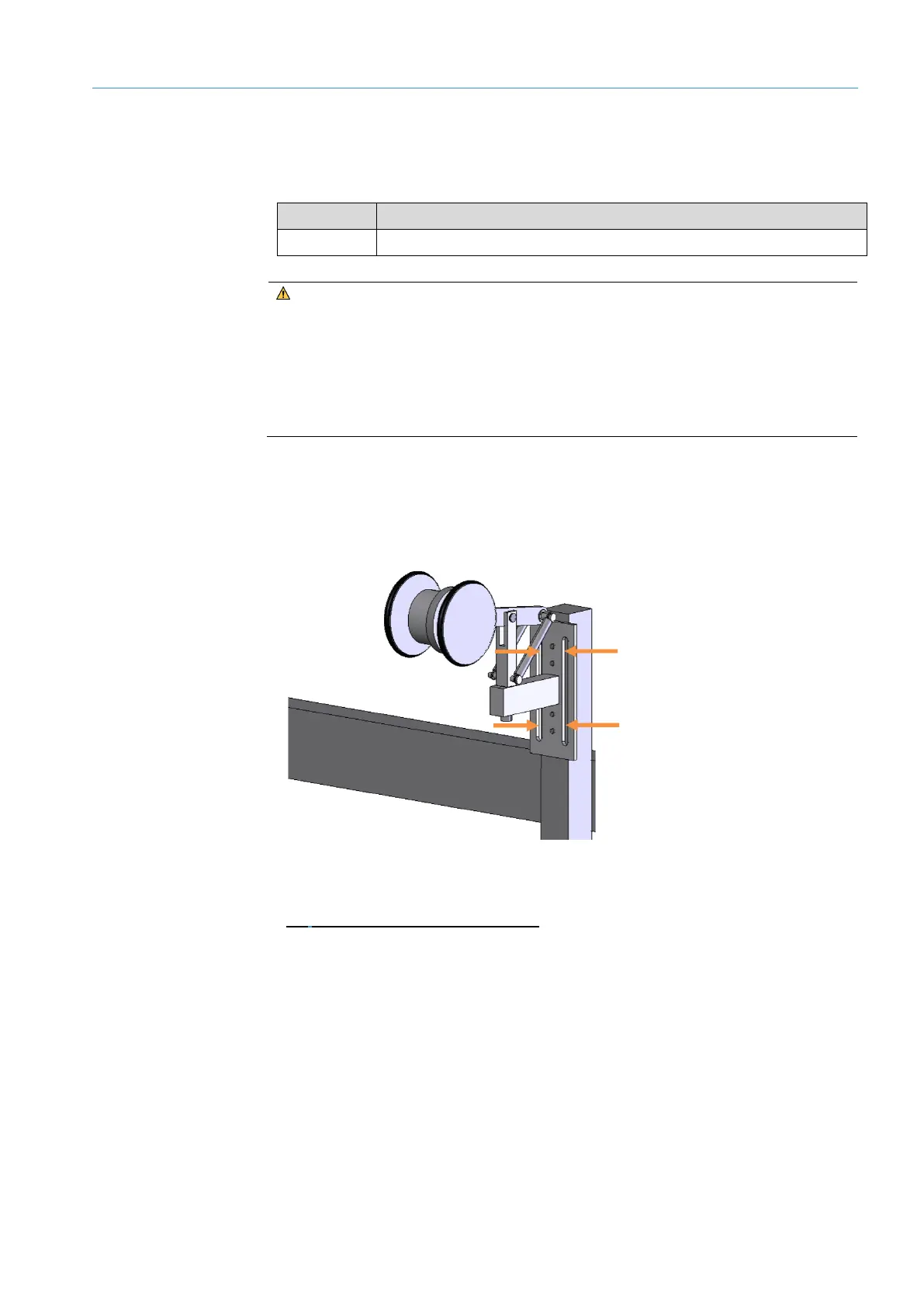

Fig. 92: Replacing the measuring wheel encoder
▸
Mount the replacement device on the conveyor belt (for more information, see section
4.2 Mounting the incremental encoder).
NOTE! Observe the correct mounting direction.
▸
Screw the M12 plug connection onto the male connector on the measuring wheel
encoder.
Replacement device
Removing a defective
encoder
Mounting the
replacement device
