In system setups with deflector mirror, the attachment mechanism is secured with
security seals.

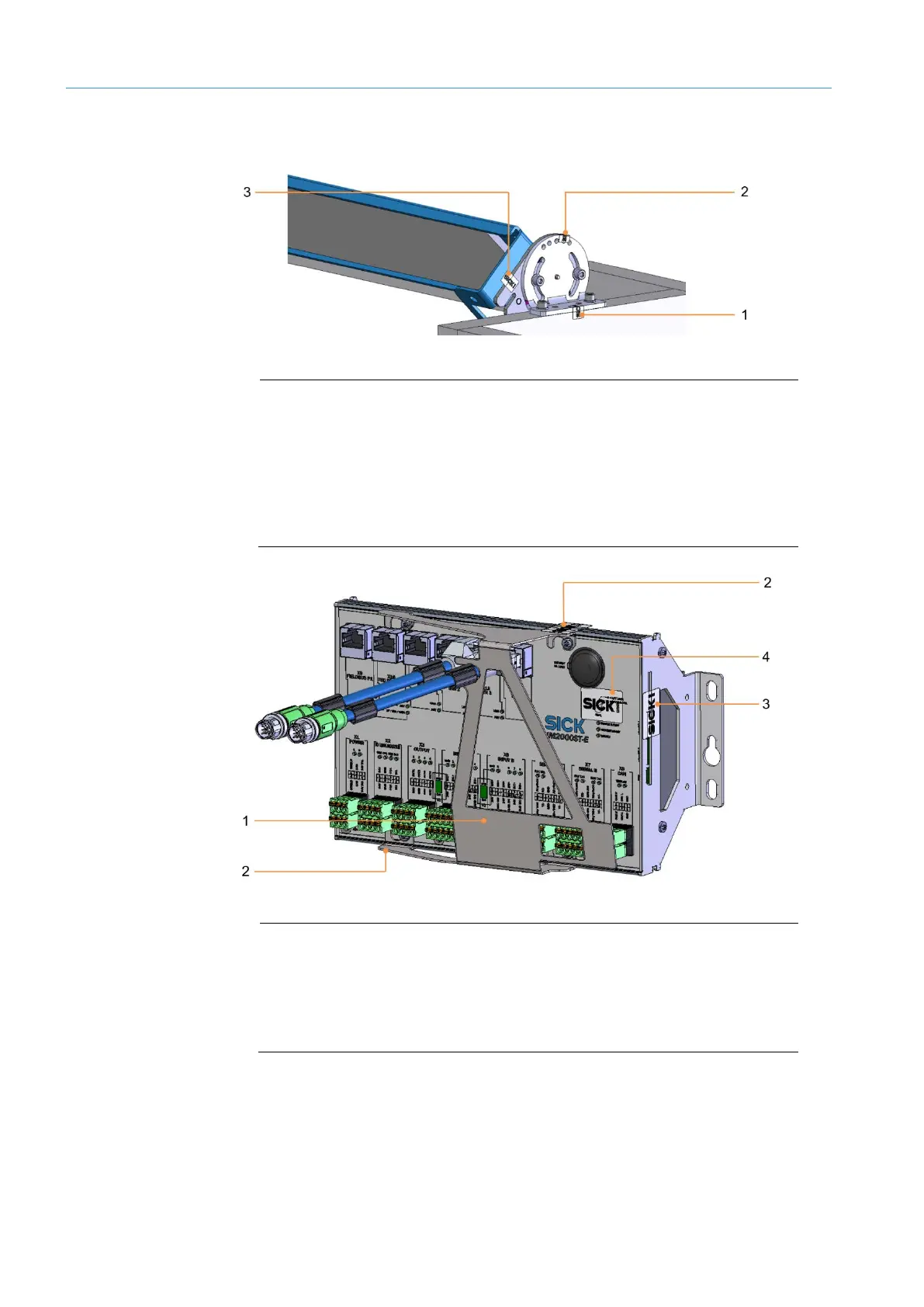

Fig. 42: Security seals on the deflector mirror
Legend
1 Security seal on the contact point between mounting bracket/mounting
frame
2 Security seal on the contact point between mounting bracket/system
mount
3 Security seal on the contact point between mounting bracket/mirror
holder
Fig. 43: SIM2000-2 Prime controller security seal
Legend
1 Manipulation guard
2 Security seal on the manipulation guard
3 Security seal on card slot with alibi memory card
4 Security seal on calibration switch
• A manipulation guard protects the SIM2000-2 Prime controller installed in the cabinet
against disassembly and removal of the legally-relevant connections.
• The manipulation guard is sealed.
NOTE The two adhesive seal are also a form of protection against unauthorized
opening of the SIM2000 housing.
