Installation and Circuitry
166 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
6.1 Mechanical Design
6.1.1 CP-8000

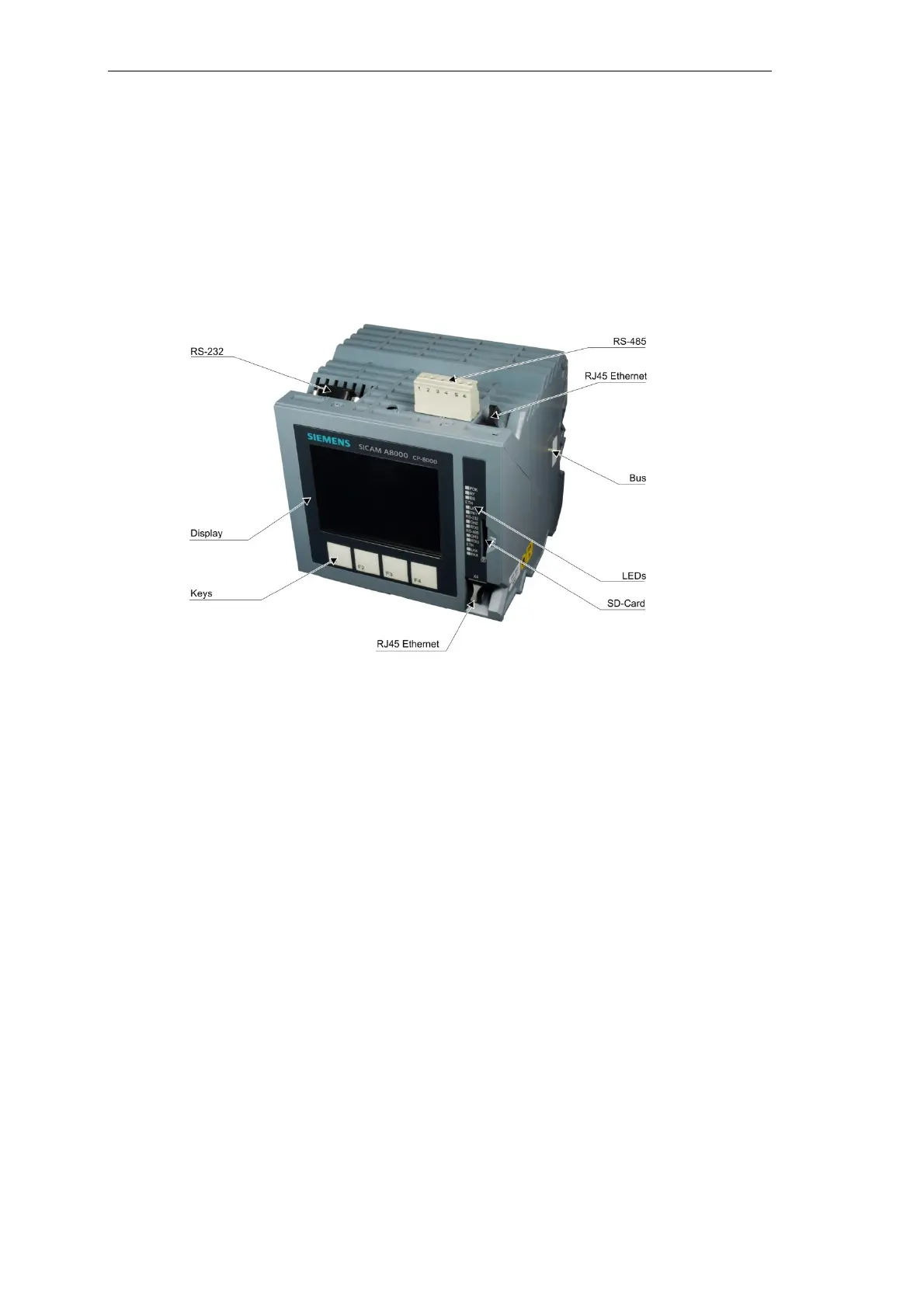

The electrical components of the device are housed in a plastic casing with the dimensions
128 mm x 124 mm x 116 mm (W x H x D). The casing is designed for assembly on a DIN rail.
At the front are the operation and display elements, an interface for the communication via
Ethernet, and a slot for the SD card.
At the top of the device are the connections for the communication via RS-485 and RS-232,
as well as a further Ethernet interface.
On the right side of the housing is the bus connector for the I/O coupling module. It is covered
with a label.
