Siemens CP-8000

Use Cases
590 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

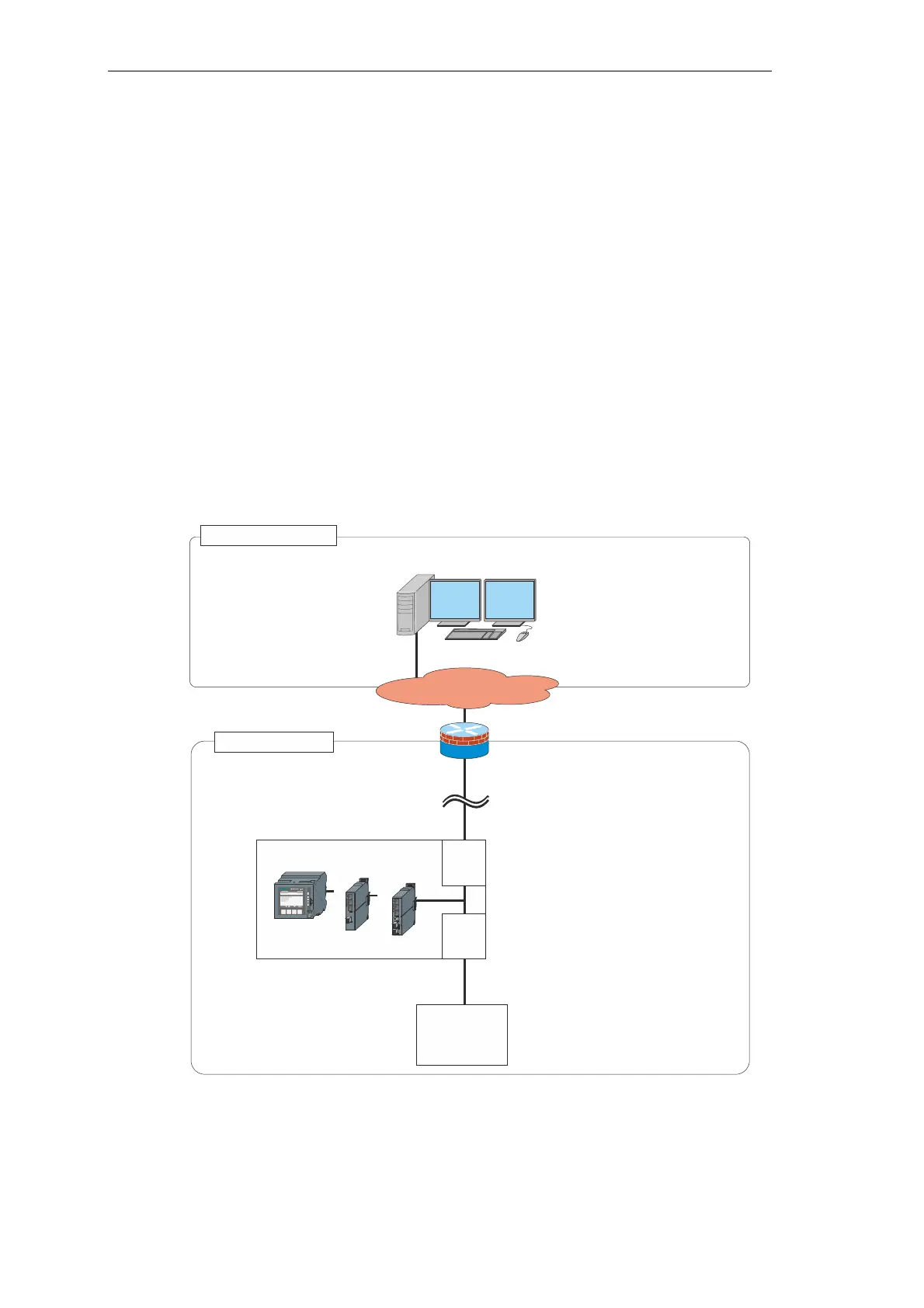

E.3 Usage as Telecontrol Substation with Integrated Switch
for External System Connection
Features
• Communication with the control system via IEC 60870-5-104
(Ethernet-Interface, X1 or X4, can be set by parameter)
• Communication with the external system via IEC 60870-5-104
(Ethernet interface, X1 or X4, can be set by parameter)
• CP-8000, CP-8021 or CP-8022 is used as switch between control system and external
system
• 1 IP address
• 1 subnet mask
• 1 default router
• Parameter Network settings | IP address | Mode of Ethernet Ports =
1 IP address (connected ports in switch mode)
(in this case both Ethernet interfaces use the MAC address of X1)
Office Zone
X4
X1
Router
E SC
CP-8000
CP-8021
CP-8022
Control Center
IP address
172.16.0.4
255.255.0.0
172.16.0.254
Subnet mask
Default router
PREx / ET84
IP address
Subnet mask
Default router
172.16.0.3
255.255.0.0
172.16.0.254
IP address
172.17.0.22
Subnet mask 255.255.0.0
IP address 172.16.0.254
External
device
Substation Zone
Control Center Zone
