E.2 Usage as Telecontrol Substation with Node Function
(Protocol Converter)
Features
• Communication with the control system via IEC 60870-5-104
(Ethernet interface, X1 or X4, can be set by parameter)
• Communication with the protective devices via IEC 61850
(Ethernet interface, X1 or X4, can be set by parameter)
• 2 IP addresses
• 2 logically separated subnets
─ Communication only visible on the LAN within the subnet
─ Data exchange between subnets only via SICAM A8000 application function
• 1 default router
• Parameter Network settings | IP adress | Mode of Ethernet Ports =
2 IP addresses (independent ports)
(in this case both Ethernet interfaces have different MAC addresses)

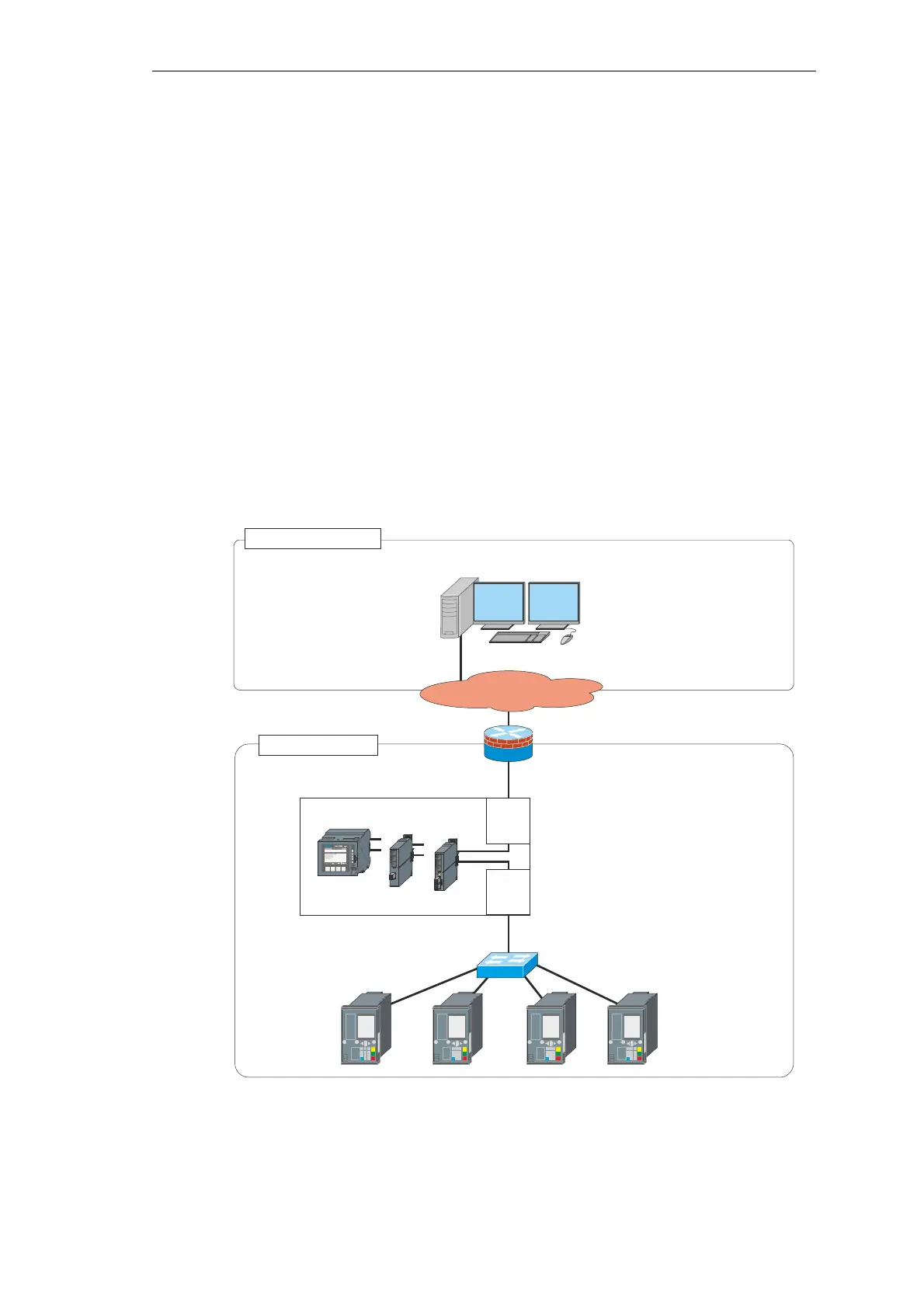

Office Zone
X4
X1
Router
E SC
CP-8000
CP-8021
CP-8022
Switch
Control Center
IP address
172.17.0.22
Subnet mask 255.255.0.0
PREx / ET84
IP address 172.16.0.3
255.255.0.0
172.16.0.254
Subnet mask
Default router
PREx / ET83
IP address 192.168.1.130
255.255.255.0
172.16.0.254
Subnet mask
Default router
IP address 172.16.0.254
IP address 192.168.1.n
Substation Zone
Control Center Zone
