9.1.4.3 I/O Master Module
In CP-8000/CP-802x you can equip 1 I/O Master Module. The hardware for the I/O Master
Module as well as 2 internal I/O Modules are integrated on the Master Module.
With use of external I/O Modules, these must be connected (mechanically) to the target de-
vice before the engineering in SICAM WEB.

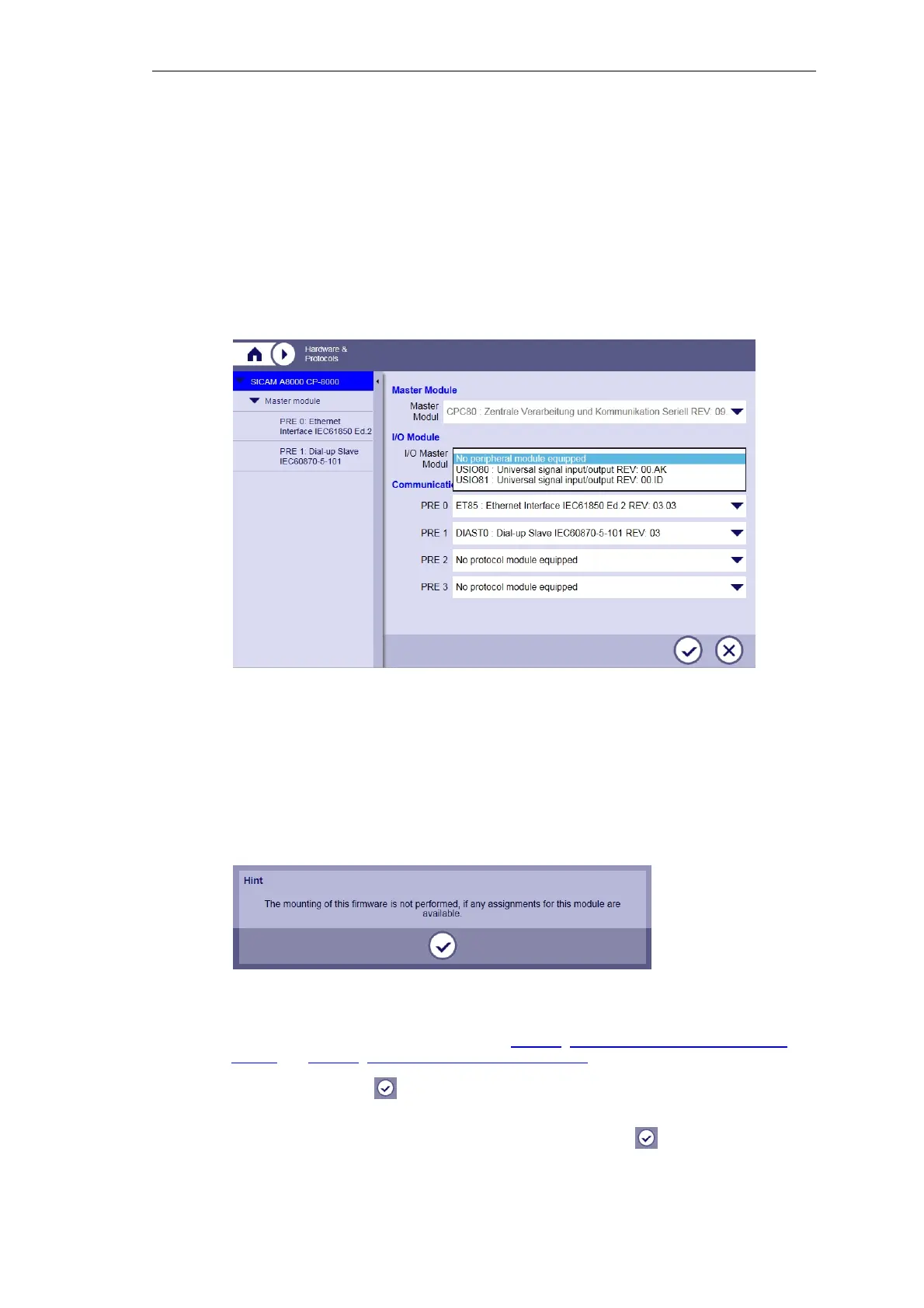

The selection of the I/O Master Module resides in the directory tree also under
SICAM A8000 CP-80xx | Master module | I/O Master module.
• In order to configure a I/O Master Module, select the desired firmware:
USIO80: operation with SICAM TM I/O Modules
USIO81: operation with SICAM I/O Modules
After the selection of the I/O Master Module a notification appears:
This means, a new I/O Master Module (firmware revision) can be accepted only if no signals
are assigned to the I/O Master Module and to I/O Modules. If occasion arises, the correspond-
ing signal assignments must be deleted (see 9.1.11.3, Assigning Signals to the I/O Master
Module and 9.1.11.4, Assigning Signals to the I/O Module).
• Click on the button in order to close the dialog
After the selection of the I/O Master Module and acceptance with a restart of the target
device is required. Thereby, the target device automatically detects the internal and the con-
nected external I/O Modules. Hence, for the equipment of an I/O Module you need not make a
selection.
