Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 175
DC8-037-2.02, Edition 10.2017

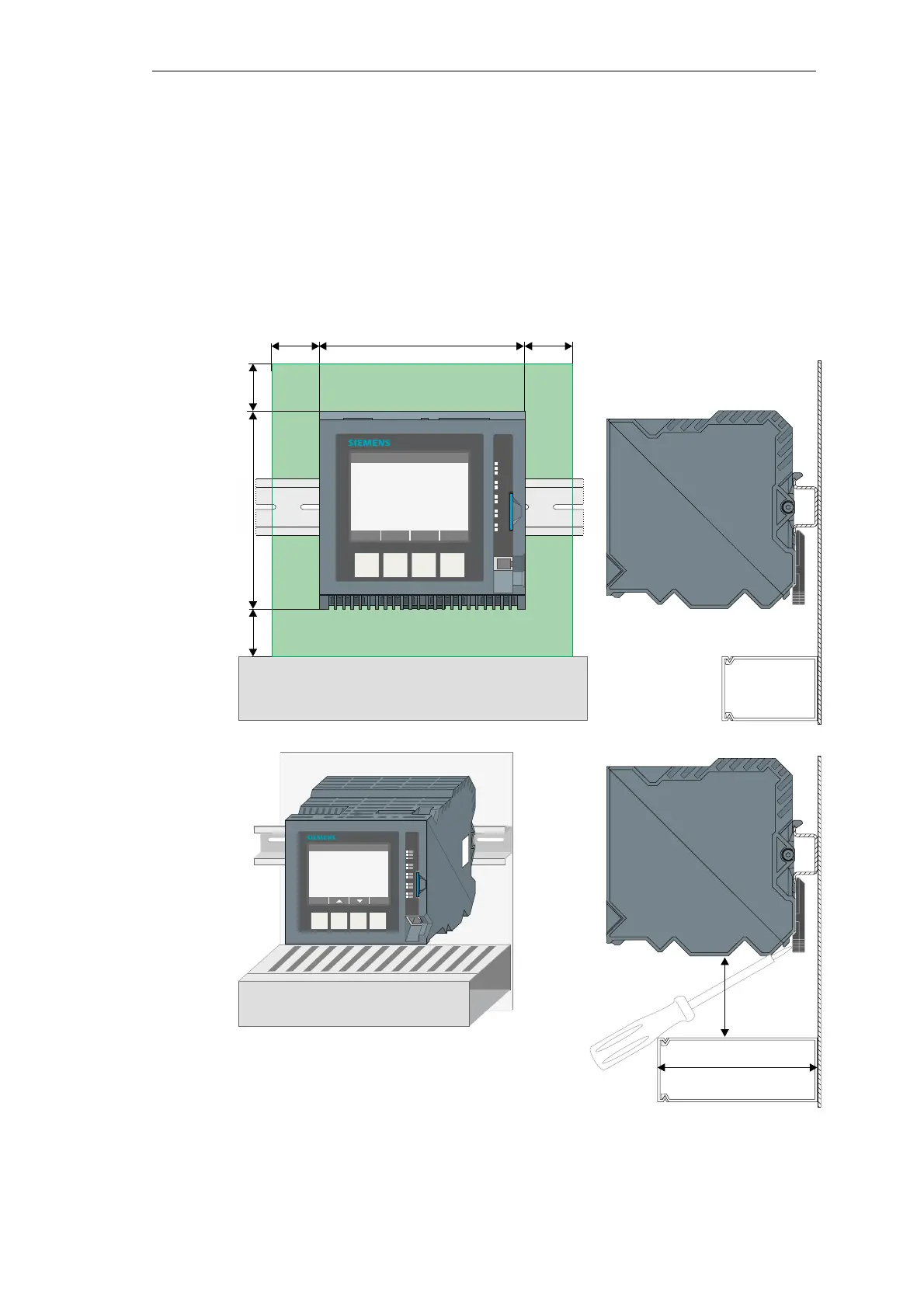

6.4 Mounting CP-8000
6.4.1 Space Requirement
Besides the size of the device (128 mm x 124 mm) the space requirement for the height is
dependent on the size of the cable ducts used and their minimum distance (30 mm) to the de-
vice.
*)
for thermal reasons, a minimum distance of 30 mm must be maintained around the device
**) when using a cable duct with 100 mm depth below the device, it is necessary to keep a 50 mm min-
imum distance between device and cable duct to operate the locking hook
30
SICAM CMIC
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
R S-232
OH2
RTX2
R S-485
OH3
RTX3
ETH
LK4
PK4
SD
X4
SICAM A8000 CP-8000
min 30 *)
100 m m
mi n 5 0 m m * * )
124
SICAM CMIC
ESC
MENU
SI CAM A8 000 CP- 8000
