SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 167
DC8-037-2.02, Edition 10.2017

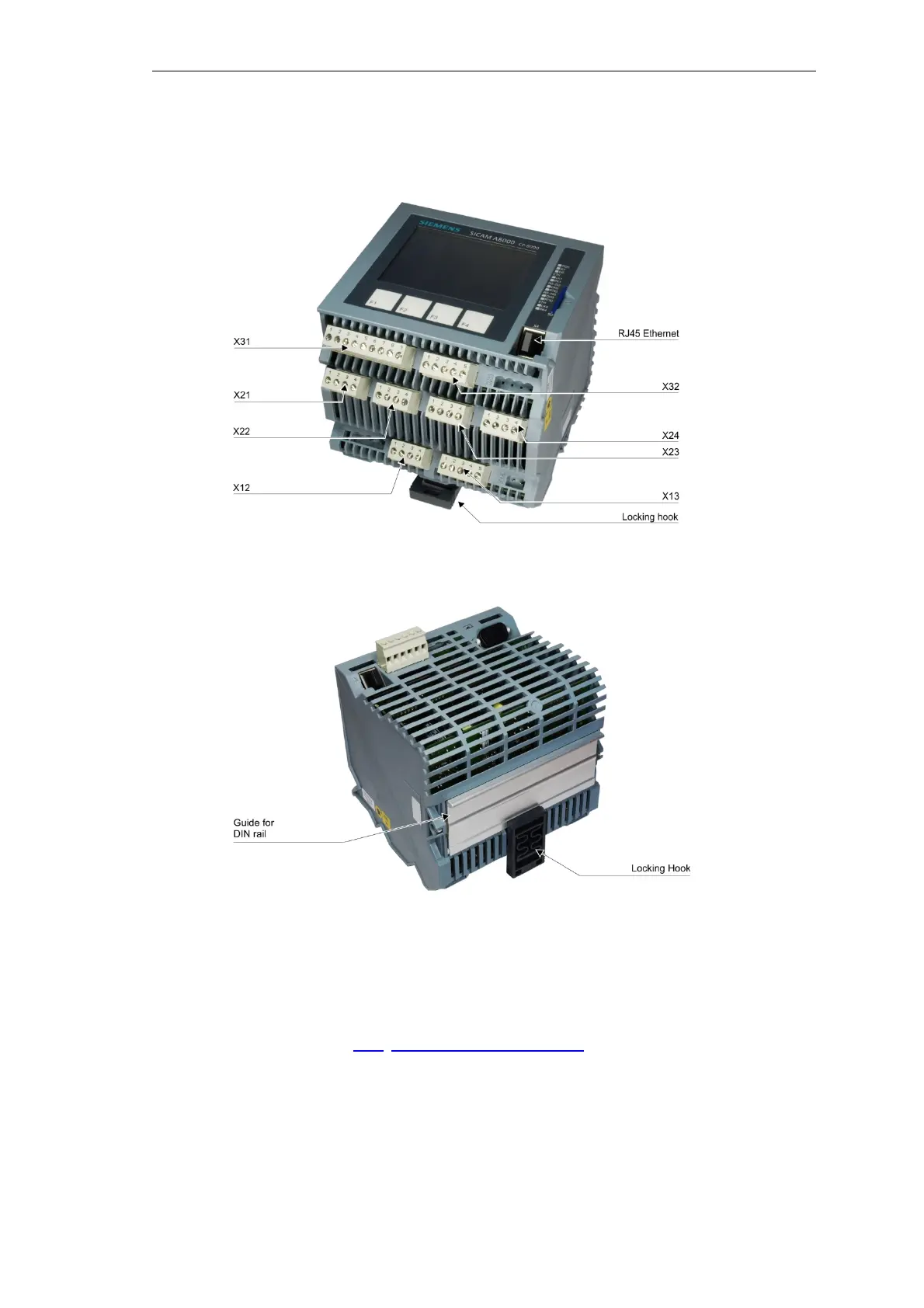

On the bottom side of the device are the connections for the process signals as well as for the
supply voltage.
At the back is the DIN rail mounting.
6.1.1.1 Locking Hook
The device is locked onto the DIN rail and also removed again using the locking hook.
Details see section 6.4.2, Mounting of the Master Module.
