Siemens CP-8000

Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 205
DC8-037-2.02, Edition 10.2017

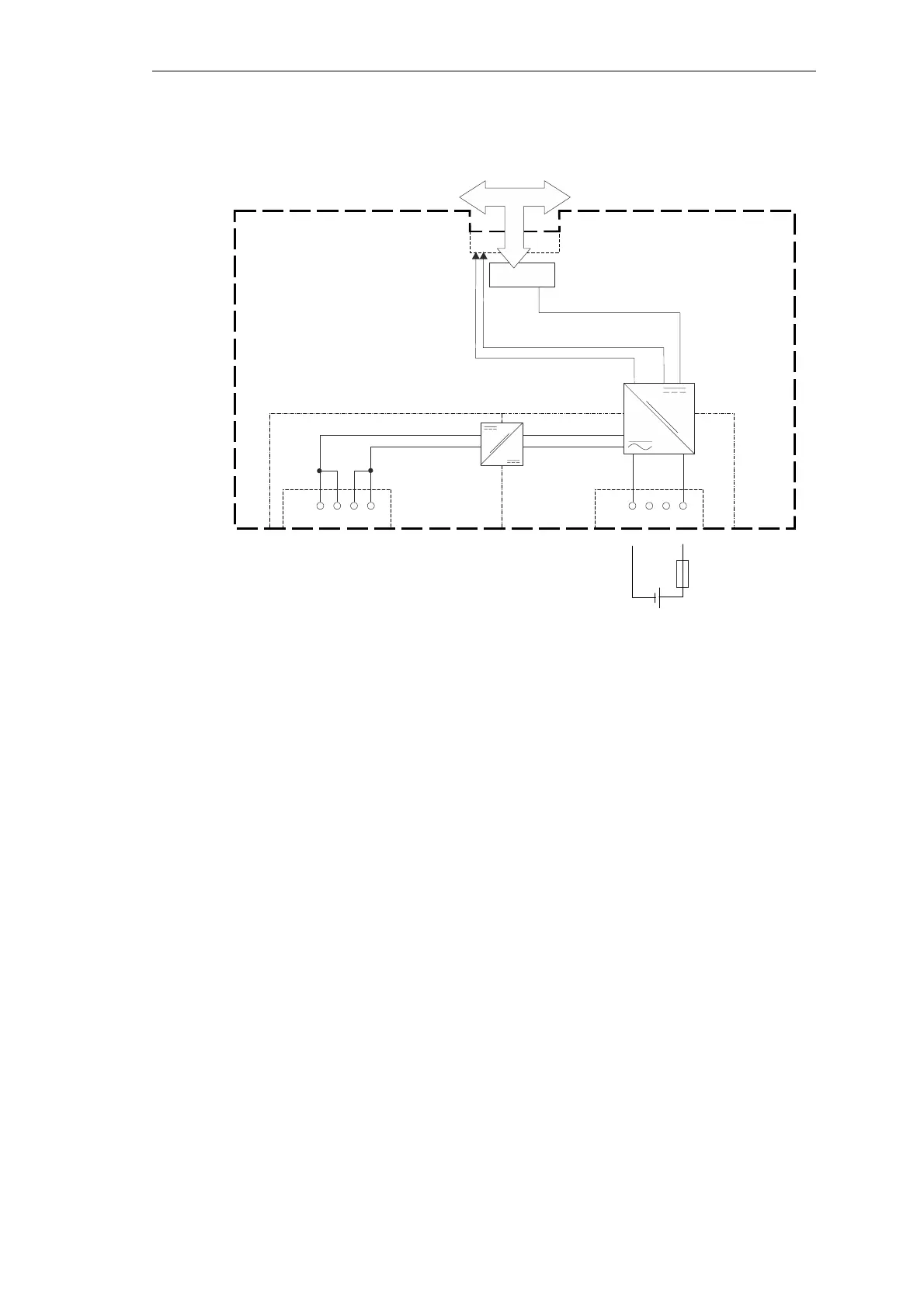

6.9.2.2 Power Supply Modules PS-8640 and PS-8642
X1
X99
PS-864x
2 3 4
1
5 V
28 V
Controller
+ (L/+)
- (N/-)
PS-8640: DC 24...60 V
PS-8642: DC 100...240 V
AC 100... 240 V
X2
*)
2 3 4 1
AUX V0+ AUX V0+ AUX V0- AUX V0-
BUS
contact wetting/
modem supply
reinforced
insulation
*)
only PS-8642
