6.4.1.1 Space Requirement with SICAM I/O Modules
If the device is extended by external SICAM I/O Modules (max. 6 are permitted), then you
must consider the width of the coupling module, the number of used I/O Modules and the end
clamp.

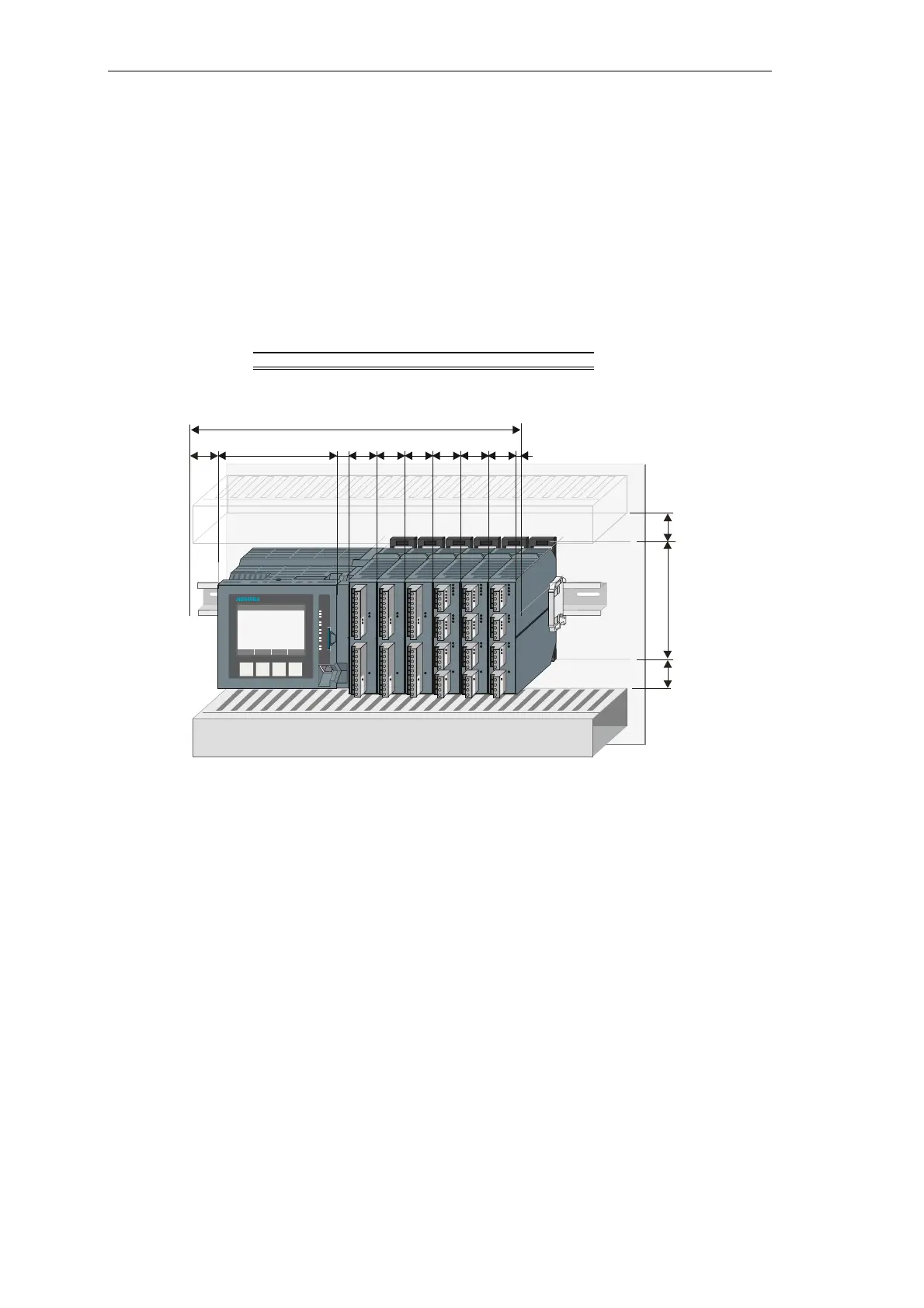

Example: CP-8000 + 6 ext. SICAM I/O Modules
Thermical space ...................................................... 30
CP-8000 ............................................................... 128
CM-8811 coupling module .................................... 12,5
6 SICAM I/O Modules (6 x 30) ............................... 180
End clamp .................................................................5
Horizontal space requirement (mm) .................... 355,5
min.
30
124
SICAM CMIC
F4F3F2F1
P OK
RY
ER
ETH
L K1
P K1
RS-2 32
OH2
RTX2
RS-4 85
OH3
RTX3
ETH
L K4
P K4
SD
X4
SI C A M A 8000 CP- 8000
RY RY RY
RY RY RY
12830
12,5
30
355,5
530 30 30 30 30
min.
30
