7.7.1.1.3 LAN/WAN Connection via Ethernet Interface

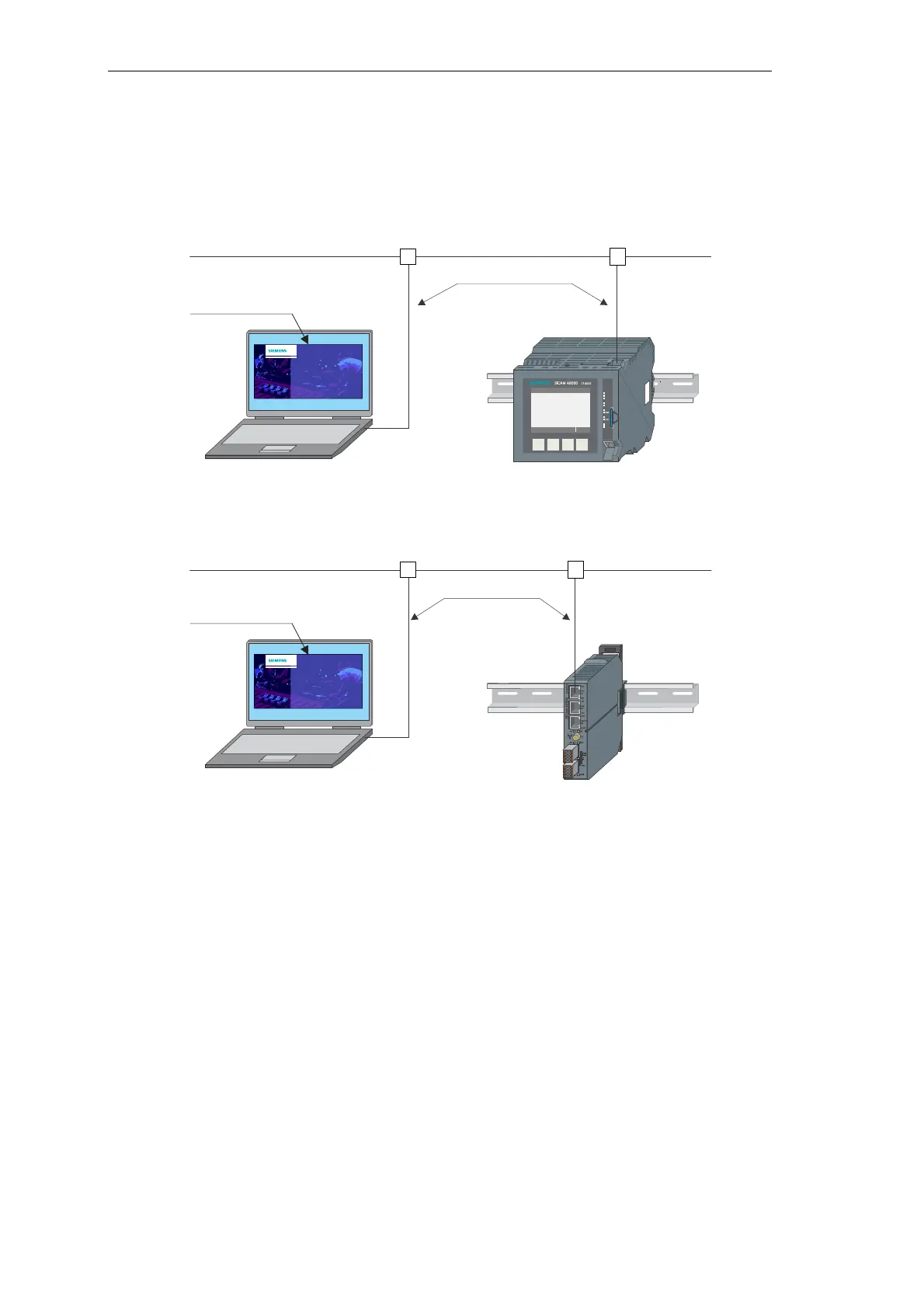

Engineering PC and CP-8000 are connected via one of the Ethernet interfaces (X1 or X4) via
a network by means of standard patch cables.
Engineering PC and CP-802x are connected via one of the Ethernet interfaces (X1 or X4) via
a network by means of standard patch cables.
TOOLBOX II
Revision:
License Pak:
Version 5 | Siemens AG
F4
F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-2 32
OH2
RS-4 85
OH3
ETH
LK4
PK4
SD
X4
Ethernet TCP/IP IEC 60870-5-104
SICAM TOOLBOX II
CP-8000
Standard patch cable
TOOLBOX II
Revision:
License Pak:
Version 5 | Siemens AG
Ethernet TCP/IP IEC 60870-5-104
SICAM TOOLBOX II
CP-802x
Standard patch cable
