Siemens CP-8000

Preparing the Engineering
256 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

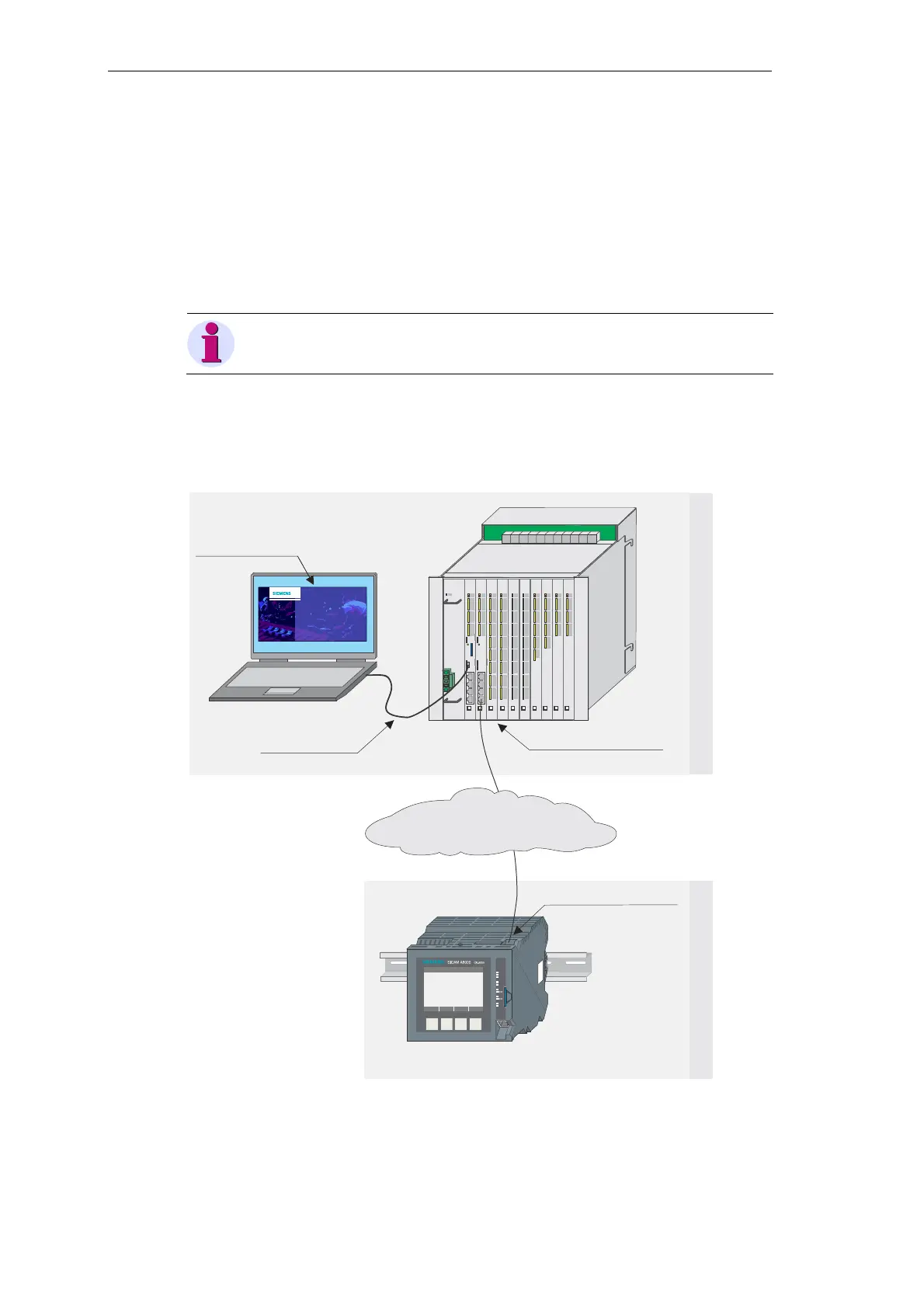

7.7.1.1.5 Remote Connection via further Automation Unit(s)
In need, the SICAM TOOLBOX II can also be connected indirectly via a connected automation
unit (SICAM AK, SICAM AK3, SICAM TM).
For engineering there must be a logical connection to that automation unit, which is subject of
the engineering task. The both following cases are differentiated:
• Connection with a local automation unit (that one, to which a physical connection exists)
Note
A first initialization of the automation unit is only possible in this way.
• Connection with a remote automation unit that one, which can be accessed via a local au-
tomation unit; thereby, a continuous remote communication according to IEC 60870-5-101
or -104 is required)
TOOLBOX II
Revision:
License Pak:
Version 5 | Siemens AG
F4
F3
F2
F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
CP-8000
SICAM AK3
SICAM TOOLBOX II
Communication interface
CM-0825 USB
connection cable
Automation/telecontrol network
(IEC 60870-5-101/104)
Local automation unit
Remote automation unit
Communication interface
