Siemens CP-8000

Installation and Circuitry
236 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

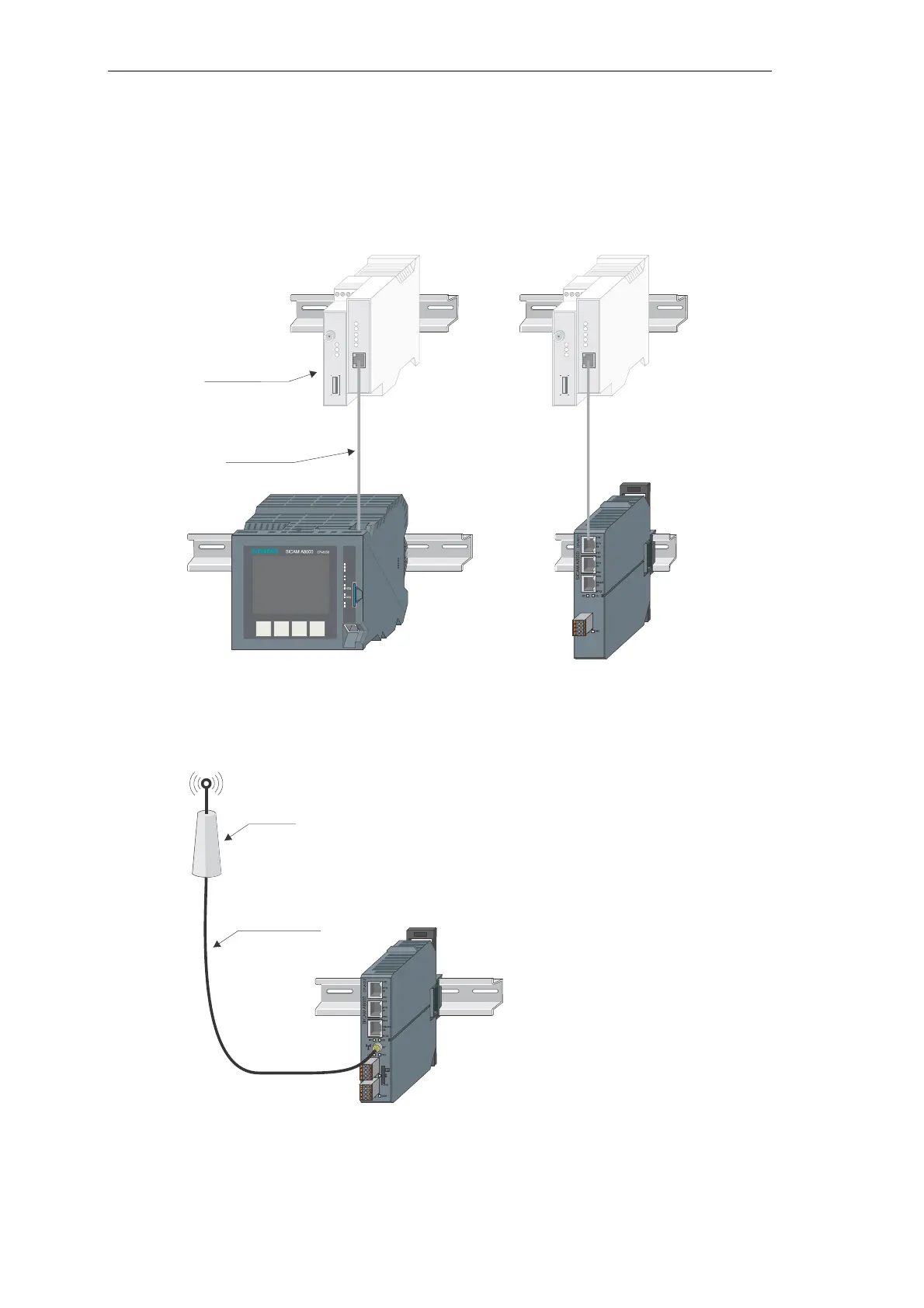

6.11.2.2 Communicaton via GPRS
6.11.2.2.1 CP-8000, CP-8021
6.11.2.2.2 CP-8022
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
GPRS Modem
CP-8021
CP-8000
Patch cable
CP-8022
Antenna
Antenna cable
