6.4.6 Separating of Master Module and I/O Coupling Module
If you need to separate a CP-8000 from the I/O coupling module (e.g. spare part replace-
ment), proceed as follows:
1. Separate the external I/O Modules from the Master Module.
2. Remove the Master Module including the coupling module from the DIN-rail).

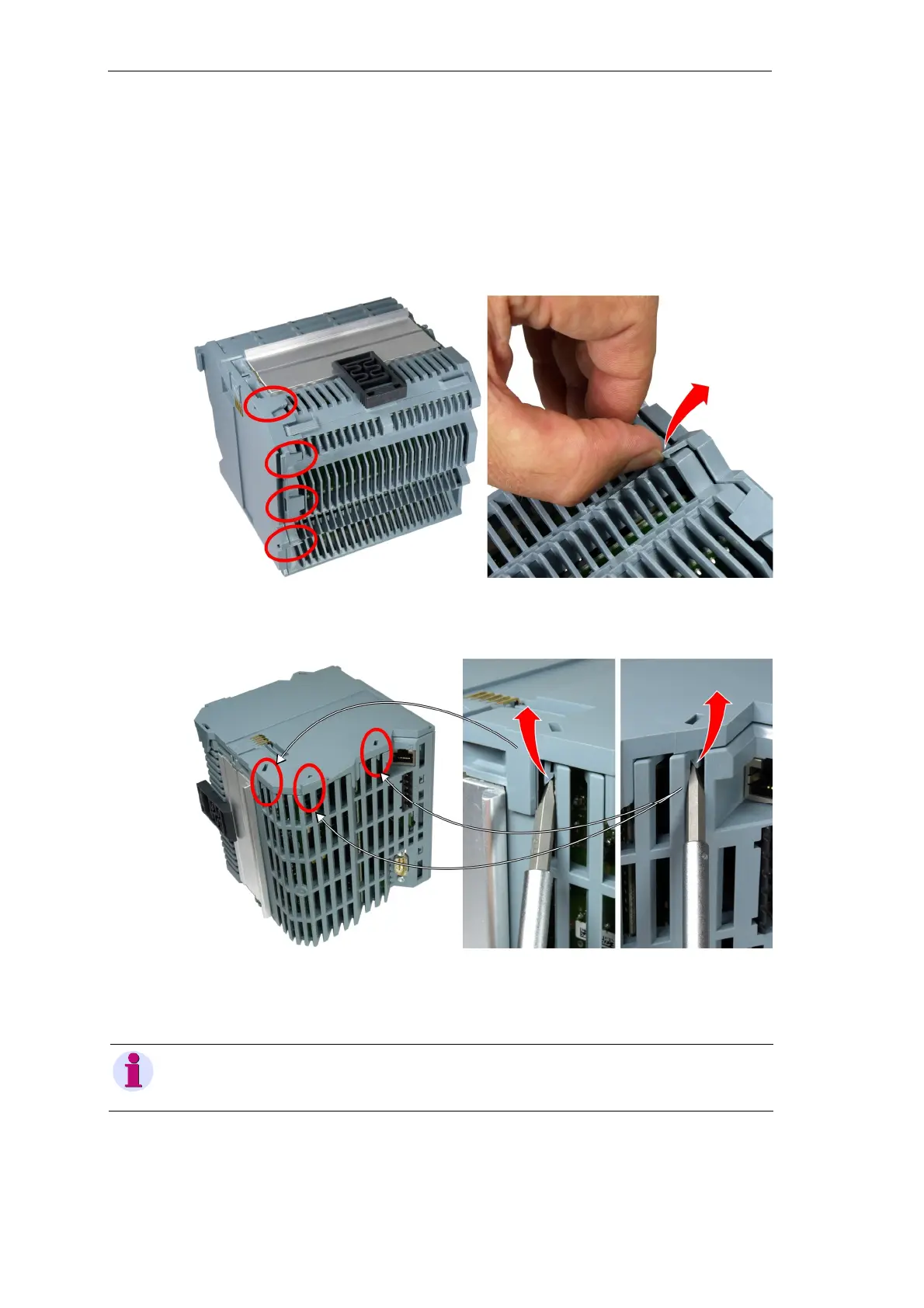

3. Loose at first the 4 clamps of the coupling module which are arrested at the housing.
4. Loose the 3 clamps which are arrested inside the housing.
Use a proper tool (e.g. a small slotted screwdriver).
5. Now you can demount the TM I/O coupling module.
6. Cover the holes of the TM bus with a label.
Note
Above illustrations show the separation of a SICAM TM I/O coupling module from a CP-8000.
The separation of a for SICAM I/O coupling module works the same way.
