Commissioning (software)
5.7 Commissioning modes
Control Units CU240S
5-56 Operating Instructions, 11/2006, A5E00766042B AA
adjust CU parameters
according to
Power Stack data
wait for
acceptance test /
confirmation
F0395
Power Stack type
compliant?
Ready
P7844 = 1?
(acceptance test/
confirmation)
P8458 = 1?
(Clone Control)
P8458 = 0
(Clone Control)
valid Par.
set?/Safety settings
compliant?
P8458 > 0?
(Clone Control)
MMC plugged?
yes
go to
Swap behavior
QR
swap?
Power ON
yes
QR
QR
yes
yes
QR
yes
QR
yes
QR
QR
yes
MMC fault
F0061/F0063

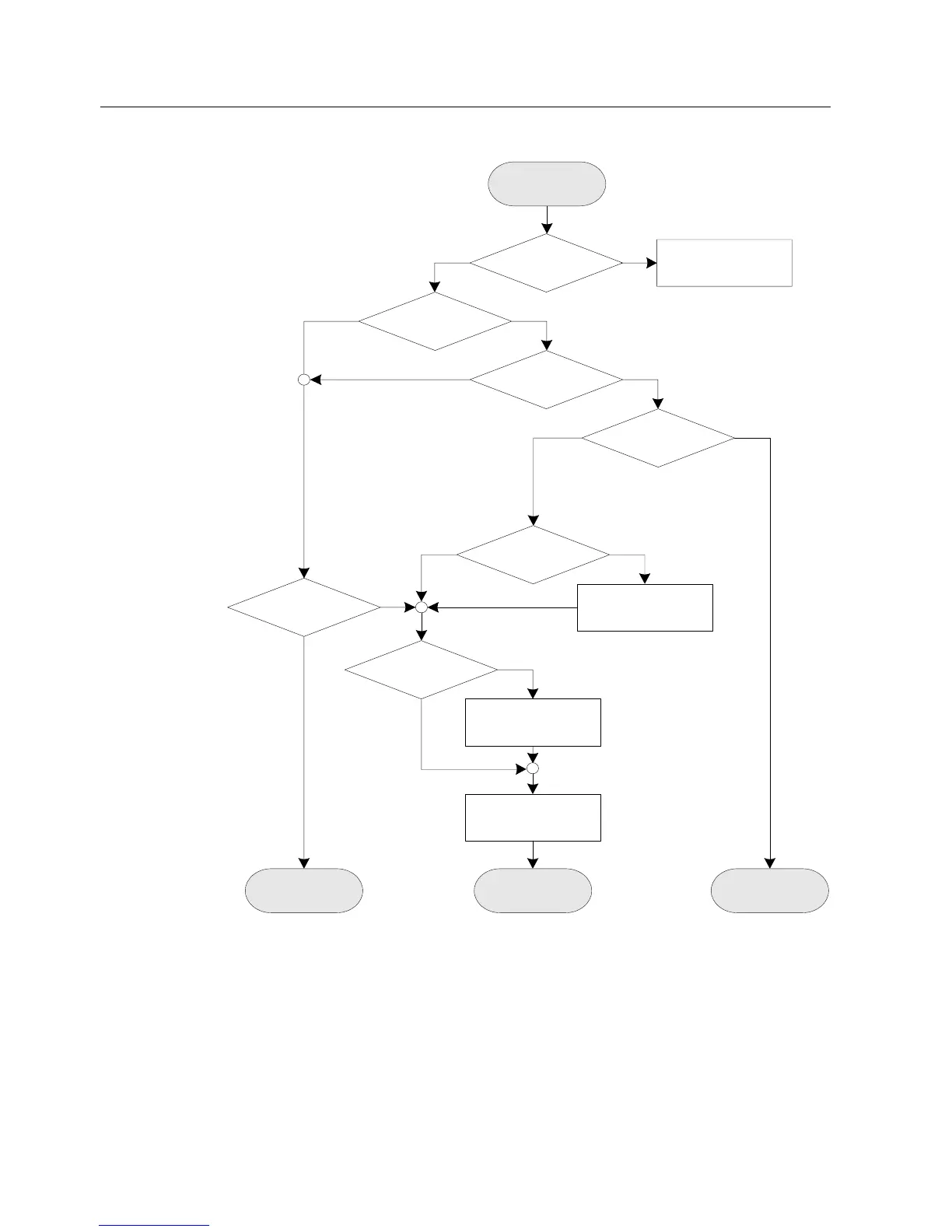

Figure 5-12 Automatic download - overview
