Commissioning (software)
5.9 Commissioning with PROFIBUS DP
Control Units CU240S
5-78 Operating Instructions, 11/2006, A5E00766042B AA
%LW
21
%LW
%LW
%LW
%LW
%LW
%LW
352),%86'3
,QWHUIDFH
352),%86'3
VWDWXV/('
352),%86$GGUHVV',36ZLWFKHV

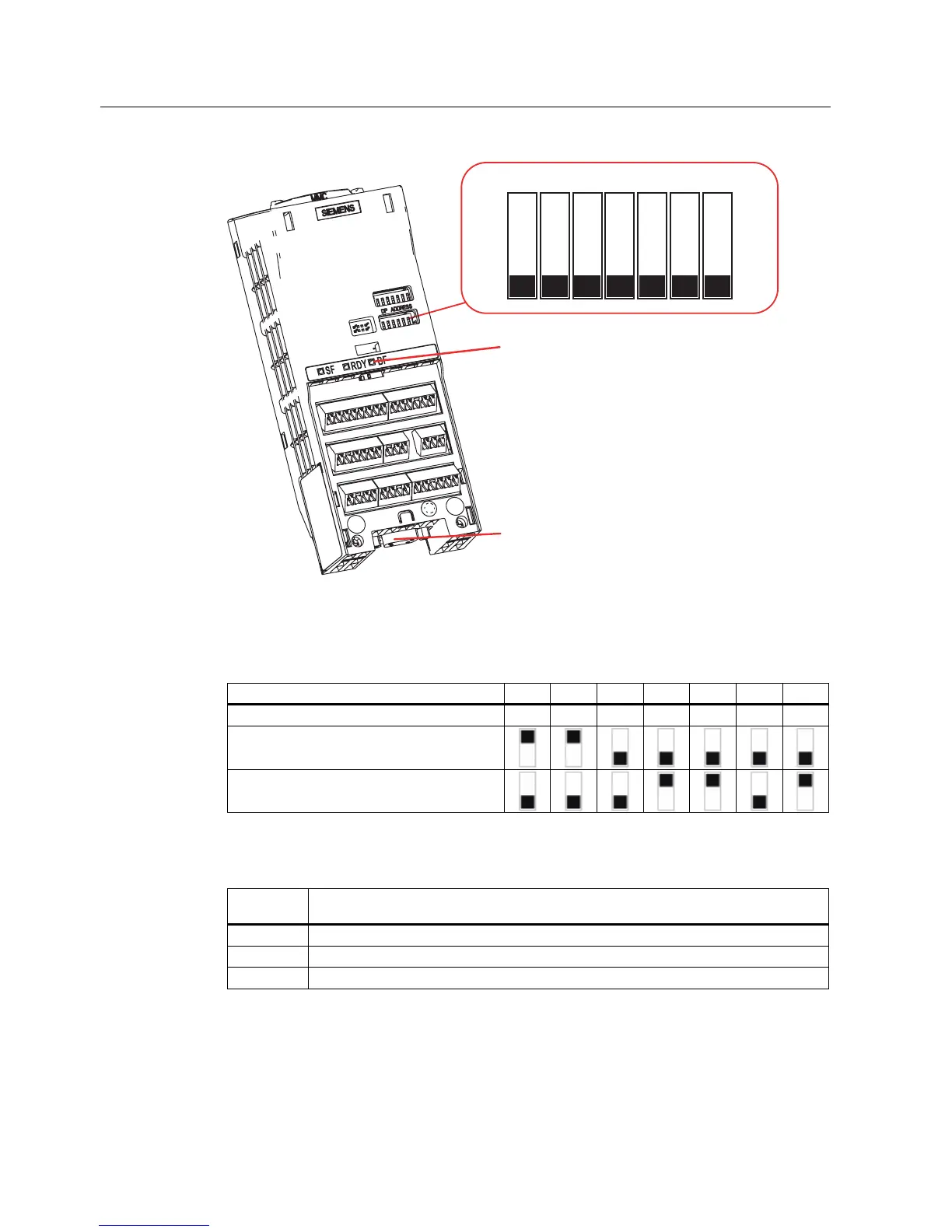

Figure 5-13 PROFIBUS DP address DIP-switches
The PROFIBUS DP address can be set between 1 and 125, as shown in the table below.
Table 5-19 Example address for the PROFIBUS DP interface
DIP switch 1 2 3 4 5 6 7
Add to address 1 2 4 8 16 32 64
Example 1: Address = 3 = 1 + 2
Example 2: Address = 88 = 8 + 16 + 64
Some "addresses" have a specific purpose, as shown in the table below:
Table 5-20 PROFIBUS DP address
DIP switch
settings
Meaning
0 PROFIBUS DP address is determined by P0918
1 … 125 Valid PROFIBUS DP address
126, 127 Invalid PROFIBUS DP address
