Commissioning (software)
5.9 Commissioning with PROFIBUS DP
Control Units CU240S
5-100 Operating Instructions, 11/2006, A5E00766042B AA

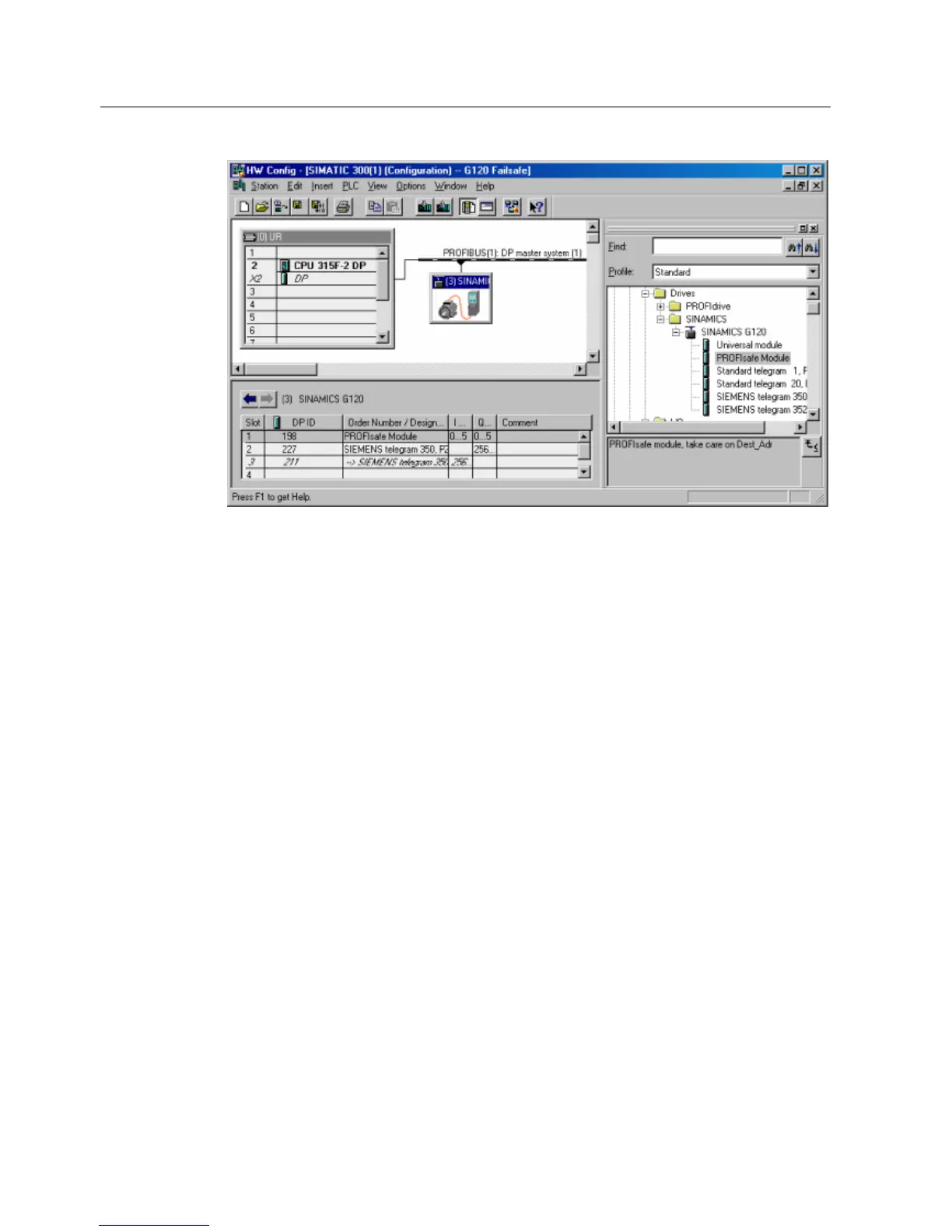

Figure 5-17 G120 inverter with fail-safe functions and a standard protocol in HW config of SIMATIC
S7
PROFIsafe Parameters
The PROFIsafe parameters are shown in the following dialog box (to be opened eg. via left
mouse double click on PROFIsafe module).
Only the parameters
● F_Dest_Add: PROFIsafe address
● F_WD_Time: control time for the fail-safe functions
can be changed.
