Commissioning (software)
5.9 Commissioning with PROFIBUS DP
Control Units CU240S
Operating Instructions, 11/2006, A5E00766042B AA
5-101

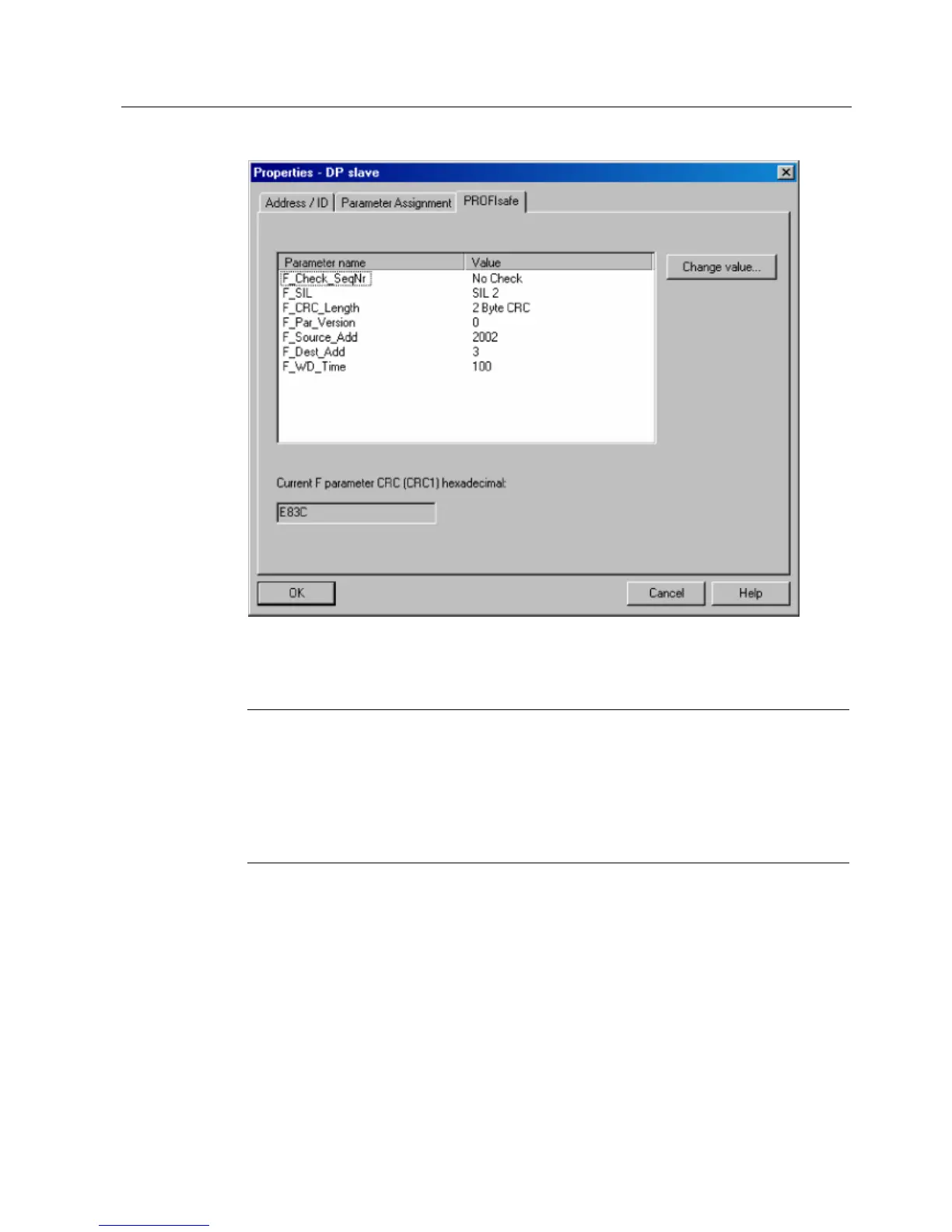

Figure 5-18 Dialog mask for fail-safe functions
Caution
F_Dest_Add
The PROFIsafe address is per default identical to the PROFIBUS address. Due to safety
reasons it must be changed to a different value. It needs also to be changed in P9810 of the
inverter.
F_WD_Time
In conjunction with the sync/freeze function, the watchdog-time should be increased.
A more detailed desctiption can be downloaded from
http://support.automation.siemens.com/WW/view/en/23646766.
