Functions
8.2 Data Sets
Control Units CU240S
8-12 Operating Instructions, 11/2006, A5E00766042B AA
Example
The inverter should be switched-over from motor 1 to motor 2.
*
0
.
0
.
0RWRU
0RWRU

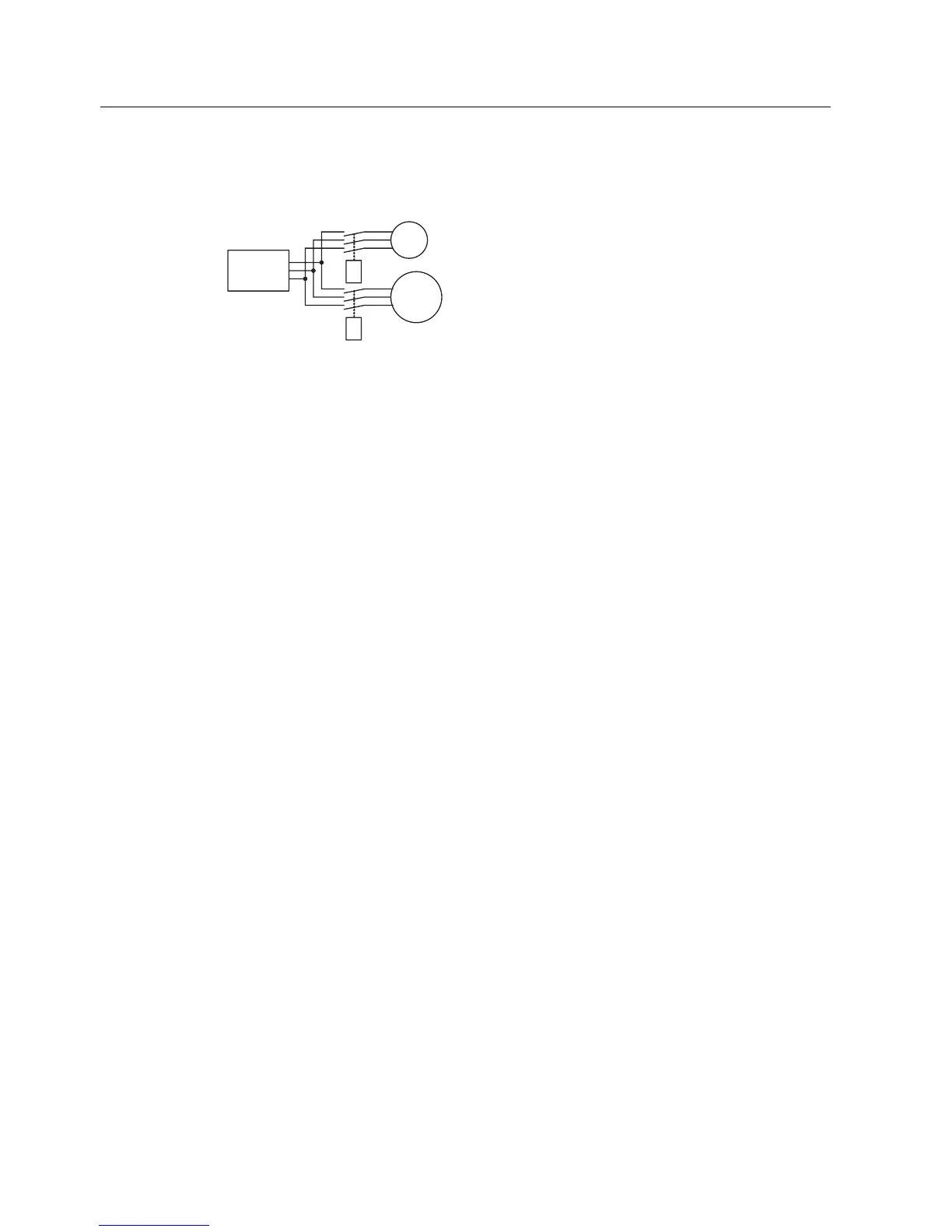

Figure 8-9 Changeover from motor 1 to motor 2
Commissioning steps with 2 motors (motor 1, motor 2):
1. Carry-out commissioning at DDS0 with motor 1; adapt the remaining DDS0 parameters.
2. Connect P0820 (P0821 if required) to the DDS changeover source
(e.g. via DI4: P0705[0] = 99, P0820 = 722.4).
3. Changeover to DDS1 (check using r0051).
4. Carry-out commissioning at DDS1 with motor 2; adapt the remaining DDS1 parameters.
